LA4PM Line Arrray

The Galaxy Audio LA4PM Line Array is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. Line...

View More Details

Buy Now

Find a Dealer

from

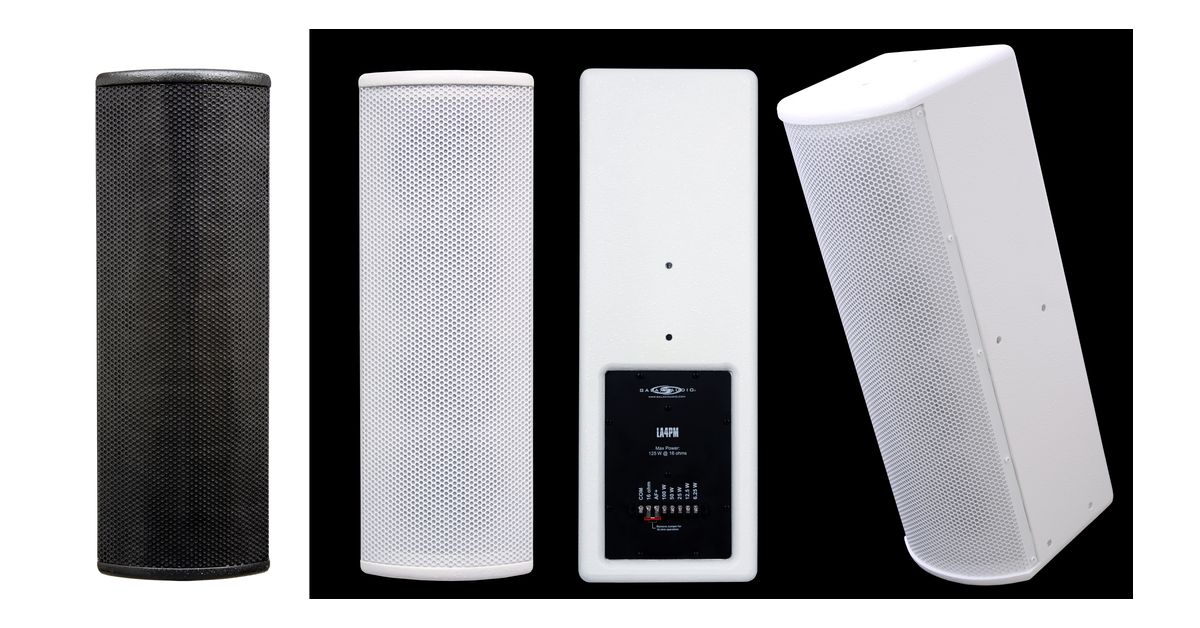

The Galaxy Audio LA4PM Line Array is designed to take advantage of the unique sound dispersion characteristics of multiple stacked drivers. Line Arrays are becoming increasingly popular for both permanent installations and portable PA because of their ability to provide very targeted sound, even in acoustically challenging rooms.

LA4PM model includes a 70volt transformer with screw terminal taps at 100w, 50w, 25w, 12.5w, 6.25w, and 3.125w, along with a 16-ohm terminal. This means the LA4PM is equally at home in both standard PA applications and distributed systems. The LA4PM is rated at 125 watts @ 16 ohms. The LA4PM comes with many bracket-mounting provisions for mounting in a variety of ways. The LA4PM is available in black or white and is perfect for house of worship or any fixed installation with or without a distributed system.

  • Multiple mounting provisions
  • Screw terminal taps
  • 70 volt transformer w/7 taps
  • 3-100watts, 125watts @ 16ohms
  • Solid wood construction

SAYBLA4-9

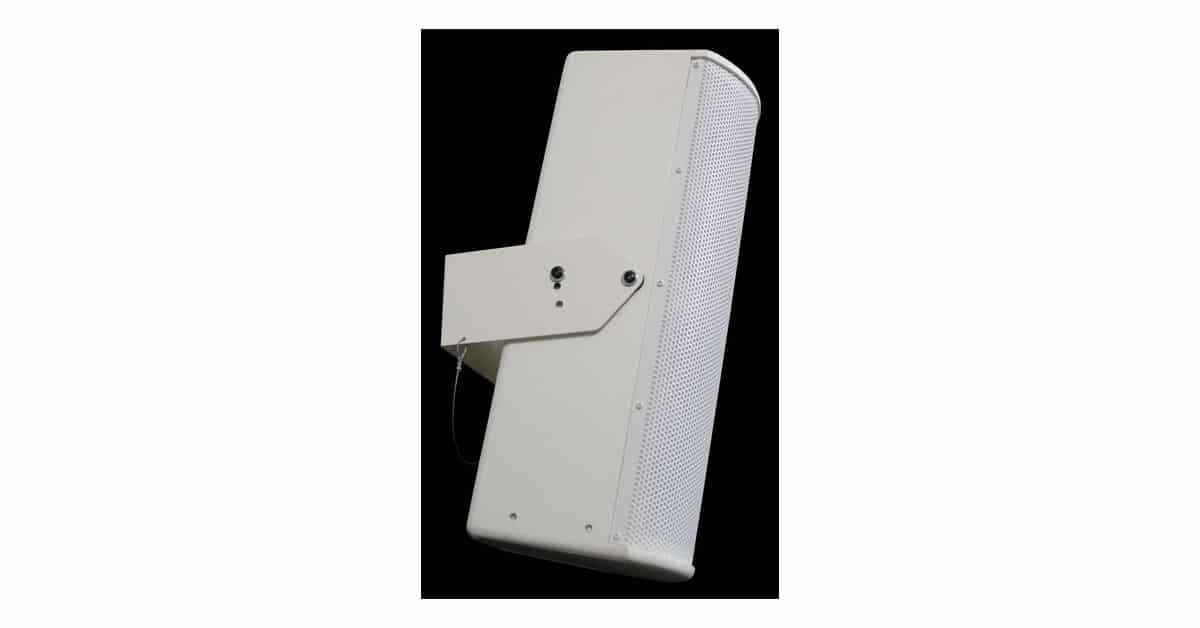

White Yoke bracket for LA4PM Line Array.

SAYBLA4-0

Black Yoke bracket for LA4PM Line Array.

LA4PM Line Arrray Specifications

Frequency Response150Hz - 18kHz
Output/Peak125 Watts (16 Ohms Tap)
Nominal Impedance16 Ohms (Autoformer Bypass Input)
Autoformer70v Taps: (100w, 50w, 25w, 12.5w, 6.25w) plus 16 ohm bypass terminal
Sensitivity98dB, 1W @ 1 m (1kHz octave band)
Max SPL126dB, 125 W @ 0.5 m
Speaker ComplimentFour 2.4" Full Range Drivers
Nominal Coverage Pattern120°H x 60°H
Input ConnectionsScrew Terminals
Enclosure Material15 mm Plywood, Steel Grill
Mounting/RiggingFourteen 1/4-20 T-nut Mounting Points
ColorsBlack or White
Dimensions21.5" x 7.5" x 7" (546 x 191 x 178mm)(HxWxD)
Weight16.3 lbs (7.39 kg)

Manuals

Manual ( pdf - 0.19 MB )
Cut Sheet ( pdf - 0.17 MB )
Omni Bracket Instructions ( pdf - 0.13 MB )
