DHXR4 (UHF)

The DHXR4 offers the same great features as the DHTRQUAD system, with 4 receivers in a single rack space chassis. The DHXR4 offers 4 independent...

View More Details

Buy Now

Find a Dealer

from
DHXR4 (UHF) Callout DHXR4 (UHF) Callout

Click Here for 600MHz Wireless Buyback Rebate Information!
The DHXR4 offers the same great features as the DHTRQUAD system, with 4 receivers in a single rack space chassis. The DHXR4 offers 4 independent receivers, each with Auto Scan, IR Sync, and 120 selectable channels. The receivers have also been improved with Tone-key squelch for improved rejection of outside interference. The DHXR4 has a built in antenna combiner and power distributor. The DHXR4 has 4 independent XLR outputs (one for each channel) as well as mixed output, allowing the user to submix the microphones on the DHXR4 and come out of one XLR or 1/4" output. The DHXR4 can be used with any 65 or 77 Series Handheld or Body Pack transmitter.

  • 300' Range
  • Auto Scan
  • 120 Selectable UHF Frequencies
  • Diversity Antennas
  • Rack Mount Kit Included

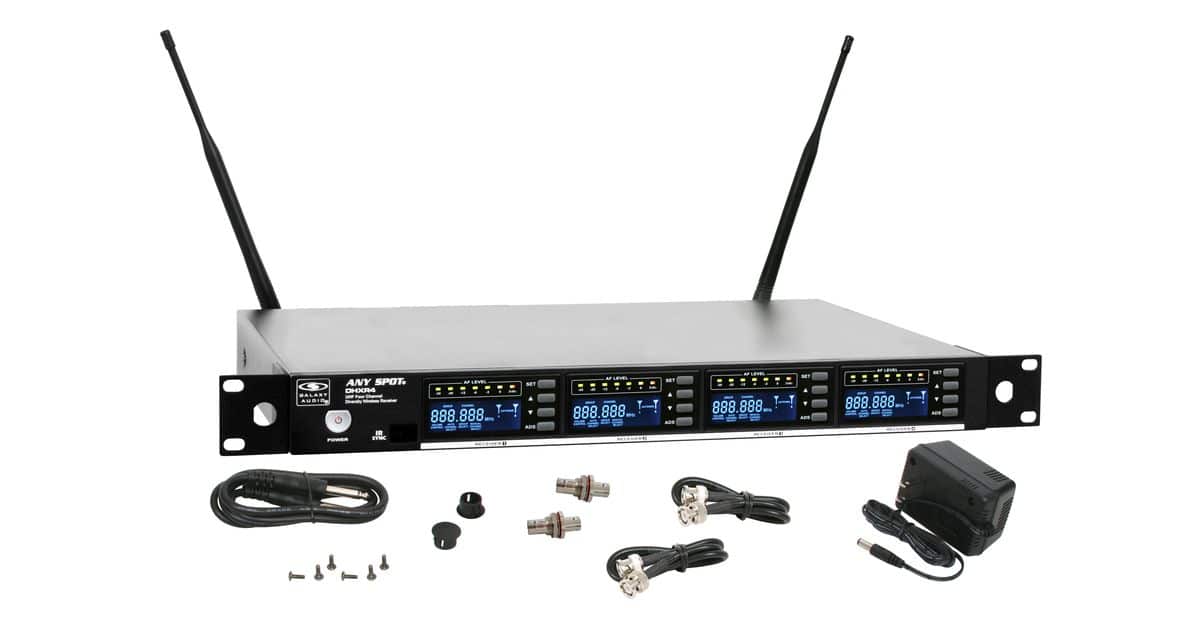

DHXR4 Four Receiver Rack Mount System

  • LCD Display
  • IR Sync Receiver to Transmitter
  • Frequency with Channel and Group Selector
  • AF/RF Indicators
  • Tone-key Squelch
  • Squelch Adjustment
  • XLR/1/4" Output
  • Detachable BNC Antennas
  • Metal Chassis

HH65 Transmitter

  • Cardioid Dynamic Element
  • LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
  • IR Sync Transmitter to Receiver
  • 10 mW
  • Gain Adjustment
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 9.5" x 2.1" (242 x 54 mm) (LxDia)
  • Weight: 10.6 oz (300 g)

HH65SC Transmitter

  • Super Cardioid with Condensor
  • LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
  • IR Sync Transmitter to Receiver
  • 10 mW
  • Gain Adjustment
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 9.6" x 2" (243 x 50 mm) (LxDia)
  • Weight: 10.6 oz (300 g)

MBP77 Transmitter

  • LCD Display
  • 3 Bar Battery Life Indicator
  • Channel Selector
  • On / Off / Mute Button
  • IR Sync Transmitter to Receiver
  • Mic/0/-10dB
  • 10 mW
  • Manually Set Frequency
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 3.5" x 2.6" x 1" (89 x 65 x 24 mm) (HxWxD)
  • Weight: 3 oz (85 g)

HH65SC Condenser Handheld

Click Here for 600MHz Wireless Buyback Rebate Information!
Super Cardioid Condensor Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System



  • Super Cardioid with Condensor
  • LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
  • IR Sync Transmitter to Receiver
  • 10 mW
  • Gain Adjustment
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 9.6" x 2" (243 x 50 mm) (LxDia)
  • Weight: 10.6 oz (300 g)












HH65 Dynamic Handheld

Click Here for 600MHz Wireless Buyback Rebate Information!
Dynamic Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System

  • Cardioid Dynamic Element
  • LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
  • IR Sync Transmitter to Receiver
  • 10 mW
  • Gain Adjustment
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 9.5" x 2.1" (242 x 54 mm) (LxDia)
  • Weight: 10.6 oz (300 g)

MBP77 Body Pack

Click Here for 600MHz Wireless Buyback Rebate Information!
Body Pack Transmitter for the DHX/DHXR4 Wireless Microphone Systems

  • LCD Display
  • 3 Bar Battery Life Indicator
  • Channel Selector
  • On / Off / Mute Button
  • IR Sync Transmitter to Receiver
  • Mic/0/-10dB
  • 10 mW
  • Manually Set Frequency
  • Works with WMC-CGR Charger Station
  • Operated on 2 AA Batteries (up to 6 hours Alkaline)
  • Dimensions: 3.5" x 2.6" x 1" (89 x 65 x 24 mm) (HxWxD)
  • Weight: 3 oz (85 g)

HS-U3BK Uni Headset

This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni directional headset microphone
  • Hooks over both ears

LV-U3BK

This uni-directional lavalier mic comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Lavalier Systems. The LV-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni-Directional
  • Lapel / Lavalier

Antenna Distributor ANT-DISTDC

Antenna Distribution System expands wireless microphone systems by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.

  • Combines Antennas for up to 4 receivers
  • Four DC outputs eliminate individual power supplies
  • 500MHz-900MHz Range
  • Built in Antenna Booster
  • Increase receiver signal rans up to 275 ft more
  • 3dB Gain Compensaton
  • 19" Rack Space

ANT-PDL

Directional antenna used to decrease interference to other equipment.  Frequency range 500-900MHz

The UHF wide-band (500-900 MHZ) directional LPDA (log periodic dipole array) antenna reduces outside interference while providing increased send/receive signal range. Each antenna paddle is matched to 50 ohms impedance with a low-loss BNC connector; 7dBi gain. For permanent or temporary installation; mounts to 5/8"-27 threads.

It is suggested that the angle between the paddle antenna and the thransmitter should be from 90º to 120º. Normally the effective range can reach about 300'.

  • 500-900 MHz
  • LPDA antenna
  • 7dBi gain
  • Can mount to mic stand
  • Improves Range

BNC Connector & Cable AS-EXT50/BNC

This Includes:
One BNC Connector (Part# CN-BNCPM) and
One 19.69" (50 cm) Cable (Part# EXTBNC) for front mounting antenna.

MICCLIPSI

Standard Mic Clip for Handheld Microphones

DHXR4 (UHF) Specifications

DHXR4 SYSTEM SPECS
Available Frequencies120
Frequency RangesCODE D 584~607 MHz
CODE L 655~679 MHz
CODE N 518~542 MHz
Transmitter Output Level20 mW
BandUHF
Operating RangeUnder Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response(+/-3 dB) 60 Hz - 16 kHz
Total Harmonic Distortion(+/-30 kHz deviation, 1 kHz tone): <1%
Dynamic Range>90 dB A-weighted
Operating Temperature Range14° F to 122° F (-10° C to 50° C), battery characteristics may limit this range

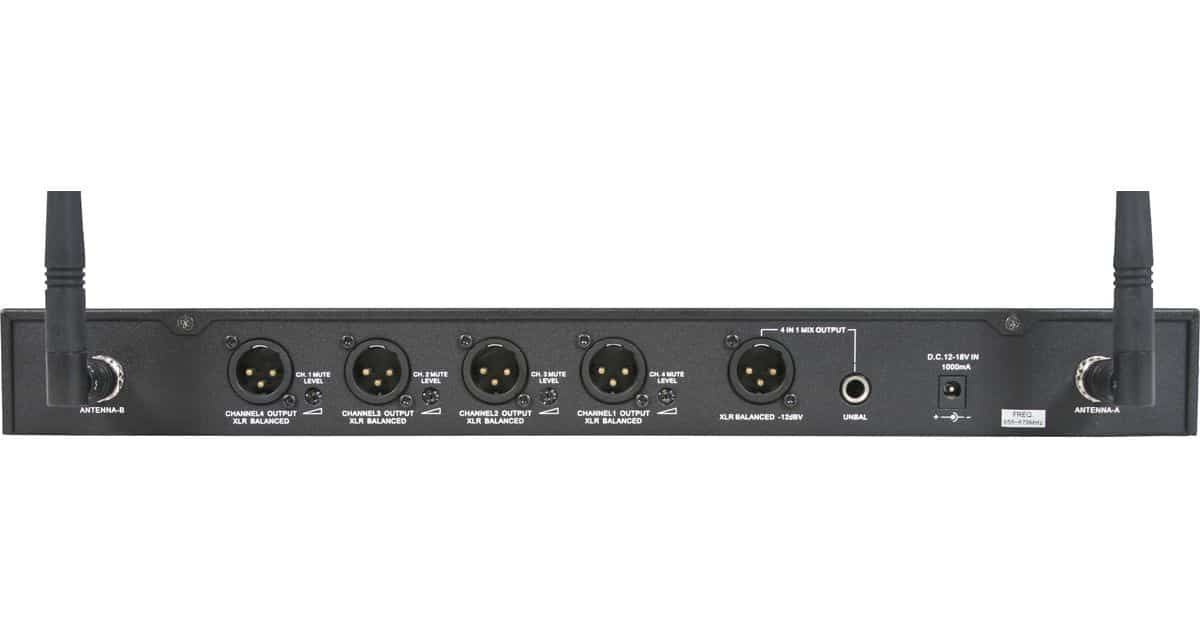

DHXR4 RECEIVER
Audio Output Level (+/-30 kHz deviation, 1 kHz tone)XLR Connector (into 600 Ohms load) -12 dBV
1/4" Connector (into 3 k Ohms load) -18 dBV
Output ConnectionsFour Male XLR Balanced
1 Mixed XLR Balanced
1 Mix 1/4" Unbalanced
Output ImpedanceXLR connector 200 Ohms
1/4" connector 1 k Ohms
XLR OutputImpedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Sensitivity-93 dBm for 30 dB
Image Rejection>90 dB
CasingMetal Chassis EIA STANDARD 1 U
Dimensions1.7" x 16.1" x 11" (45 x 410 x 280 mm) (HxWxD)
Weight117 oz (3,300 g)
Power Requirements12-18 V DC at 1000 mA, supplied by external power supply

HH65 & HH65SC HANDHELD TRANSMITTER
Max Audio Input Level0 dBV
Gain AdjustTrim Pot
RF Output20 mW
Frequency Response60 Hz- 15 kHz
DimensionsHH65: 9.5" x 2.1" (242 x 54 mm) (LxDia)
HH65SC: 9.6" x 2" (243 x 50 mm) (LxDia)
Weight10.6 oz (300 g)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 6 hours (alkaline)

MBP77 BODY PACK TRANMITTER
Max Audio Input Level0 dBV maximum at mic gain position
+10 dBV maximum at 0 dB gain position
+20 dBV maximum at -10 dB gain
Gain AdjustMic / 0 dB / -10 dB
RF Output20 mW
Input Impedance470 k Ohms
Dimensions3.5" x 2.6" x 1" (89 x 54 x 24 mm) (HxWxD)
Weight3.0 oz (85 g) (without batteries)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 6 hours (alkaline)
