CTS (UHF)
The CTS Series wireless systems feature 920 selectable UHF frequencies, IR Sync, Auto Scan, Squelch Adjustment, BNC detachable diversity antennas,...
Select a configuration below to purchase online
View Configurations
The CTS Series wireless systems feature 920 selectable UHF frequencies, IR Sync, Auto Scan, Squelch Adjustment, BNC detachable diversity antennas, LCD display and much, much more. CTS series also features 16 frequency groups with 14 channels per group; 2 groups can be user defined. Featuring Galaxy’s HH85 handheld transmitter with LCD display (frequency, battery life, mute, gain, RF signal strength) and magnesium alloy metal chassis for road worthy durability, CTS is a tour grade vocal artist wireless microphone system offering reliability and performance for the professional musician. Bundles are also available with any of our high quality Lav or Headset Mics. Single/Dual rack mount kit included.
- 300' Range
- Auto Scan
- True Diversity
- 920 Selectable UHF Frequencies
- Single/Dual Rack Mount Included

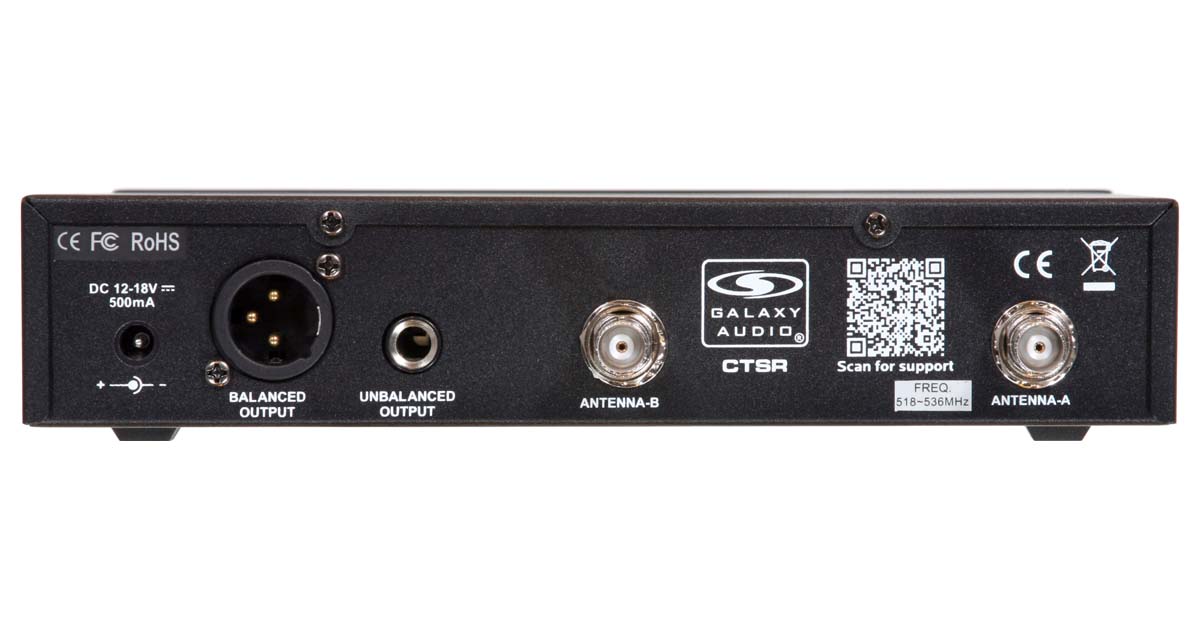

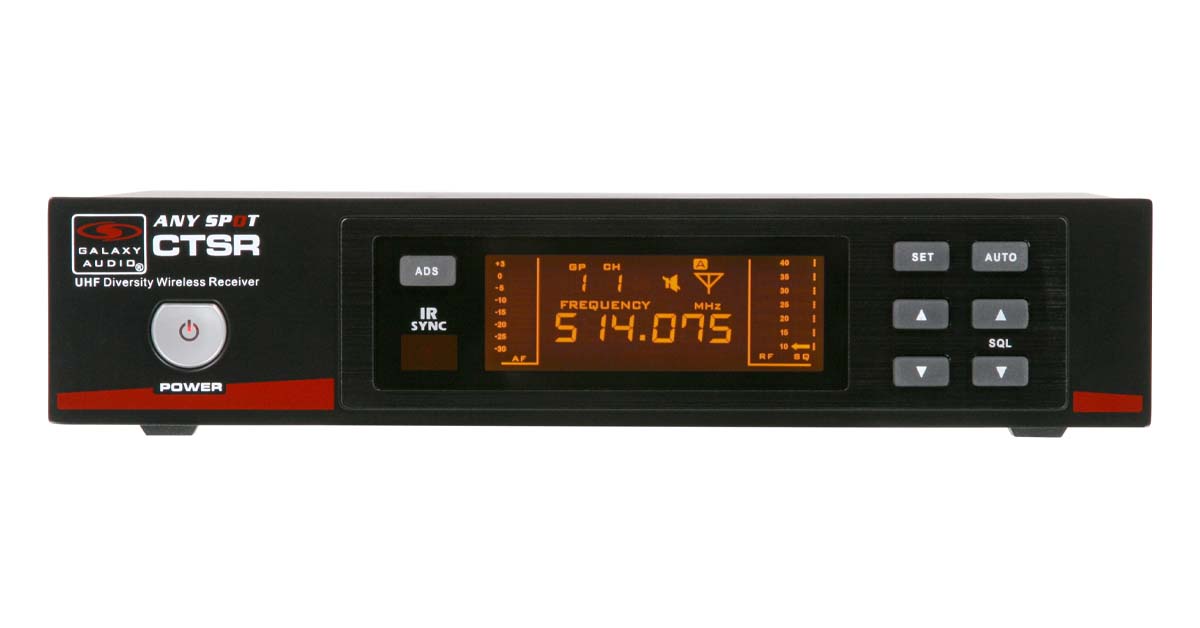

CTSR Receiver
- Transmitter Status Display
- IR Sync Receiver to Transmitter
- AF/RF Indicators
- XLR / 1/4" Outputs
- Detachable BNC Antennas
- Metal Chassis
- Cardioid Dynamic Element
- Power/Mute Button
- LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
- IR Sync Transmitter to Receiver
- Selectable Power 5, 10, 20 mW RF
- Selectable Gain -3, 0, 3, 6, 9
- Operates on 2 AA Batteries (up to 12 hours Alkaline)
- Dimensions: 9.68" x 2.08" (246 x 53 mm) (LxDia)
- Weight: 8.8 oz (250 g)
- Power/Mute Button
- LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
- IR Sync Transmitter to Receiver
- Selectable Power 5, 10, 20 mW
- Selectable Gain -3, 0, 3, 6, 9
- Operates on 2 AA Batteries (up to 12 hours Alkaline)
- Dimensions: 3.85" x 2.51" x 0.90" (98 x 64 x 23 mm) (HxWxD)
- Weight: 3.17 oz (90 g)
Transmitter quantity can be modified in cart before checkout.
Additional products in this configuration:
Transmitter quantity can be modified in cart before checkout.
Additional products in this configuration:
Transmitter quantity can be modified in cart before checkout.
Additional products in this configuration:
Transmitter quantity can be modified in cart before checkout.
Additional products in this configuration:
Transmitter quantity can be modified in cart before checkout.
Additional products in this configuration:
Transmitter quantity can be modified in cart before checkout.

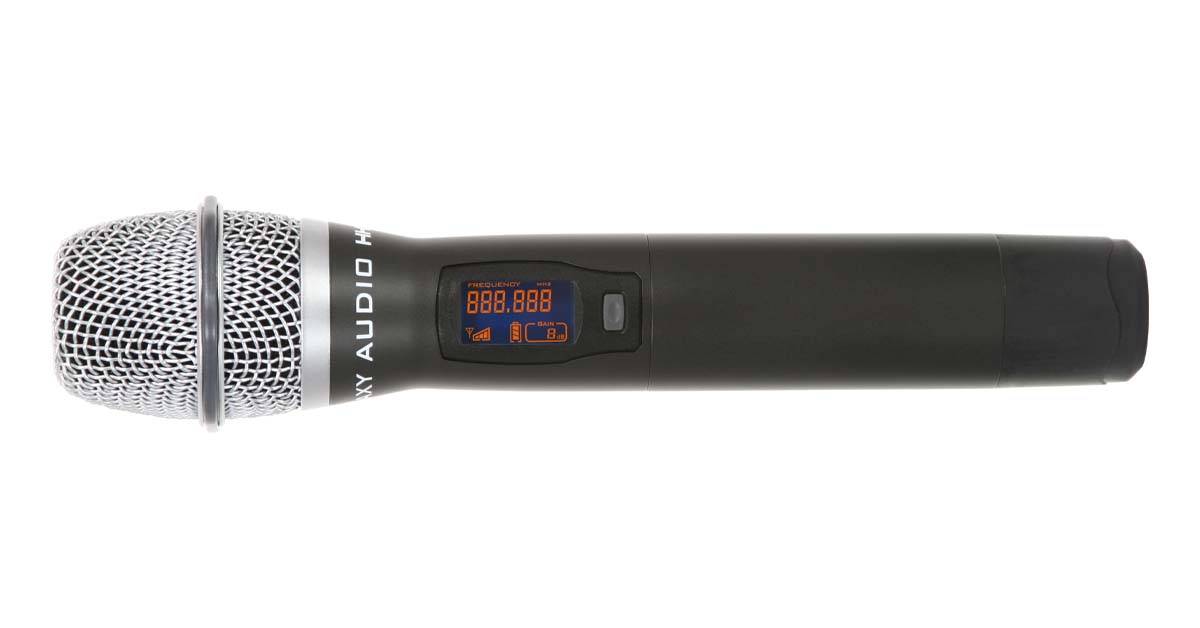

HH85 Dynamic Handheld
HH85 Dynamic Handheld Transmitter for the CTS Wireless Microphone System
- Cardioid Dynamic Element
- Power/Mute Button
- LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
- IR Sync Transmitter to Receiver
- Selectable Power 5, 10, 20 mW RF
- Selectable Gain -3, 0, 3, 6, 9
- Operates on 2 AA Batteries (up to 12 hours Alkaline)
- Dimensions: 9.68" x 2.08" (246 x 53 mm) (LxDia)
- Weight: 8.8 oz (250 g)

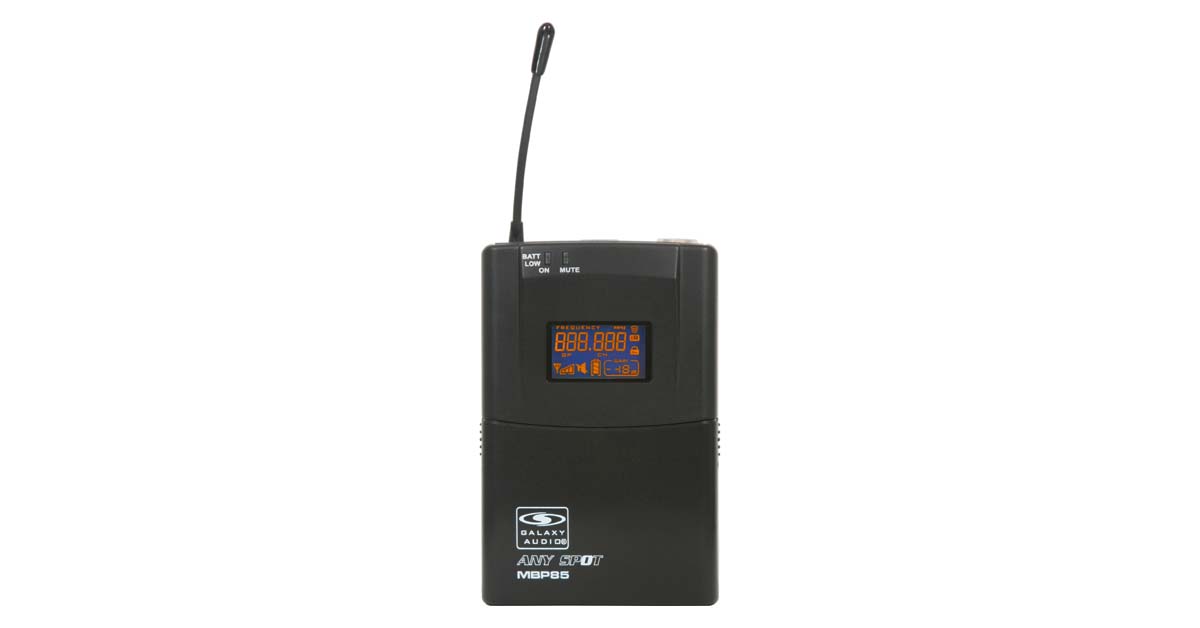

MBP85 Body Pack
Body Pack Transmitter for the CTS Wireless Microphone System
- Power/Mute Button
- LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
- IR Sync Transmitter to Receiver
- Selectable Power 5, 10, 20 mW
- Selectable Gain -3, 0, 3, 6, 9
- Operates on 2 AA Batteries (up to 12 hours Alkaline)
- Dimensions: 3.85" x 2.51" x 0.90" (98 x 64 x 23 mm) (HxWxD)
- Weight: 3.17 oz (90 g)

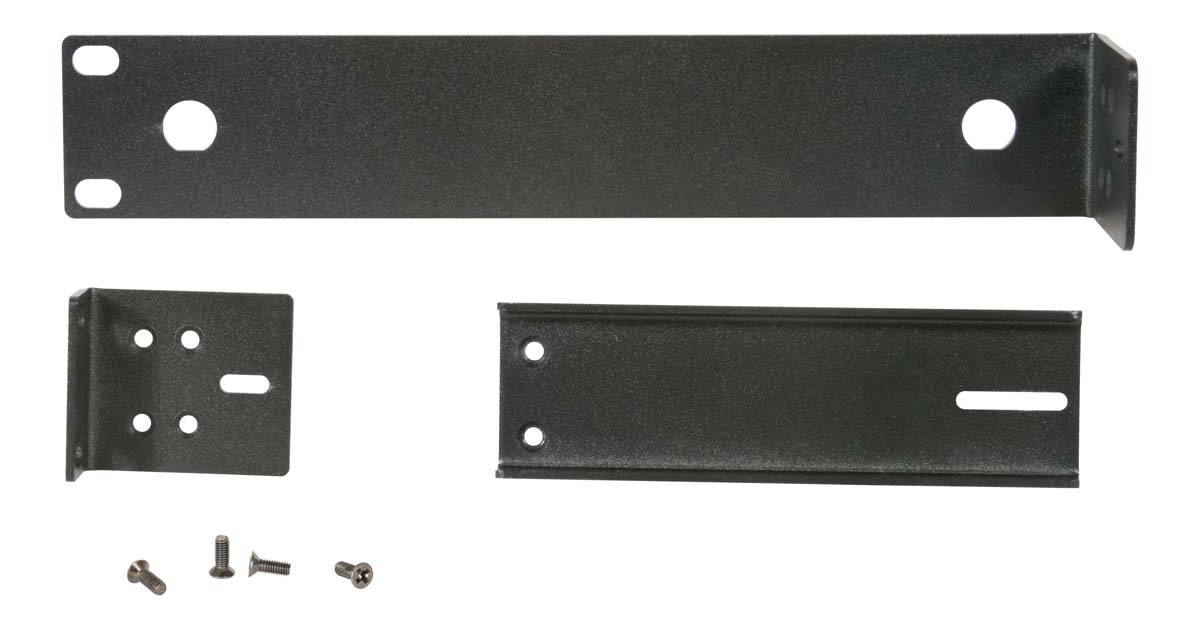

MREWD
Single and Dual Monitor Rack Mount Kit, includes 1 long rack ear, 2 short rack ear, 2 coupler plates, and assorted screws. The MREWD allows for racking a single or two wireless in-ear monitors systems or wireless mic systems in a 1U space. Works with PSE, DHX, CTS, AS-900, AS-1100, & AS-1400 systems.
LV-U3BK
This affordable lav mic comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Lavalier Systems. The LV-U3BK unidirectional lapel microphone works with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.
- Uni-Directional
- Lapel / Lavalier
HS-U3BK Uni Headset
This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK uni headset microphone can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.
- Uni directional headset microphone
- Hooks over both ears
MICCLIPSI
Standard Mic Clip for Handheld Microphones
Antenna Distributor ANT-DISTDC
The Wireless Microphone Antenna Distribution System expands wireless microphone systems only, by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.
Note: Only works with wireless microphone receivers. This Wireless Microphone Antenna Distribution System does NOT work with In-Ear systems.
- Combines Antennas for up to 4 mic receivers
- Four DC outputs eliminate individual power supplies
- 500MHz-900MHz Range
- Built in Antenna Booster
- Increase receiver signal rans up to 275 ft more
- 3dB Gain Compensaton
- 19" Rack Space
ANT-PDL
Wireless Directional Antenna used to decrease interference to other equipment. Frequency range 500-900MHz
The UHF wide-band (500-900 MHZ) directional LPDA (log periodic dipole array) antenna reduces outside interference while providing increased send/receive signal range. Each antenna paddle is matched to 50 ohms impedance with a low-loss BNC connector; 7dBi gain. Professional wireless antenna for permanent or temporary installation; mounts to 5/8"-27 threads.
It is suggested that the angle between the paddle antenna and the thransmitter should be from 90º to 120º. Normally the effective range can reach about 300'.
- 500-900 MHz
- LPDA antenna
- 7dBi gain
- Can mount to mic stand
- Improves Range
19.69” BNC Cable & Connector Combo
This Includes:
One Wire BNC Connector Cable (Part# CN-BNCPM) and
One 19.69" (50 cm) RG58 Cable (Part# EXTBNC) for front mounting antenna.
Universal Power Adaptor AS-UA12-14.5
Universal Power Adaptor. The AS-UA12-14.5 supplies 12V DC at 1000mA to Our Wireless Microphone & Monitor systems such as the DHT, DHX, DHTRQUAD, DHXR4, PSE, ECM, ECD, EDX, AS-900, Galaxy Audio AS-1100 & AS-1800 using the common 5.5mm barrel plug with center positive. The universal AC power adaptor comes with 4 different AC plug adaptors, and will accept any input voltage from 100 to 240v AC, 50-60Hz, which means it will work in nearly every country on the planet.
- 12V DC 1000mA
- 5.5mm PLUG
- Converts Systems To Accept 230 VAC.
CTS (UHF) Specifications
| CTS SYSTEM SPECS | |
|---|---|
| Available Frequencies | 920 |
| Frequency Ranges | CODE D 584 - 607 MHz CODE J 514 - 537 MHz |
| Transmitter Output | 5 mW, 10 mW, 20 mW |
| Band | UHF |
| Operating Range | Under Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference. |
| Audio Frequency Response | (+/-3 dB) 60 Hz - 16 Hz |
| Total Harmonic Distortion | (+/-30 kHz deviation, 1 kHz tone): <1% |
| Dynamic Range | >90 dB A-weighted |
| Operating Temperature Range | 14° F to 122° F (-10° C to 50° C), battery characteristics may limit this range |
| CTSR RECEIVER | |
| Audio Output Level (+/-30kHz deviation 1kHz tone) | XLR Connector (into 600 Ohms load) 6 dBV 1/4" Connector (into 3 k Ohms load) 0 dBV |
| Output Connection | 1 Male XLR Balanced, 1/4" Unbalanced |
| Output Impedance | XLR Connector 200 Ohms 1/4" Connector 1 k Ohms |
| XLR Output | Impedance Balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio - |
| Sensitivity | -102 dBm |
| Image Rejection | >90 dB |
| Casing | Metal Chassis EIA STANDARD 1/2 U |
| Dimensions | 1.7" x "8.3" x 6.3" (45 x 212 x 160 mm) (HxWxD) |
| Weight | 31.7 oz (900 g) |
| Power Requirements | 12 V DC at 500 mA, supplied by external power supply |
| HH85 HANDHELD TRANSMITTER | |
| Max Audio Input Level | -5 dBm (-3 gain) |
| Gain Adjust | software control -3 dB to +9 dB in 3 dB steps |
| RF Output | 5 mW, 10 mW, 20 mW |
| Frequency Response | 60 Hz - 15 kHz |
| Dimensions | 9.68" x 2.08" (246 x 53 mm) (LxDia) |
| Weight | 8.8 oz (250 g) (without batteries) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 12 hours (alkaline) |
| MBP85 BODY PACK TRANSMITTER | |
| Max Audio Input Level | -6 dBV (-3 gain) |
| Gain Adjust | -3 dB, 0 dB, +3 dB, +6 dB, +9 dB |
| RF Output | 5 mW, 10 mW, 20 mW |
| Input Impedance | 470 k Ohms |
| Dimensions | 3.85" x 2.51" x 0.90" (98 x 62 x 23 mm) (HxWxD) |
| Weight | 3.17 oz (90 g) |
| Power Requirements | 2 "AA" size alkaline or rechargeable batteries |
| Battery Life | About 12 hours (alkaline) |
