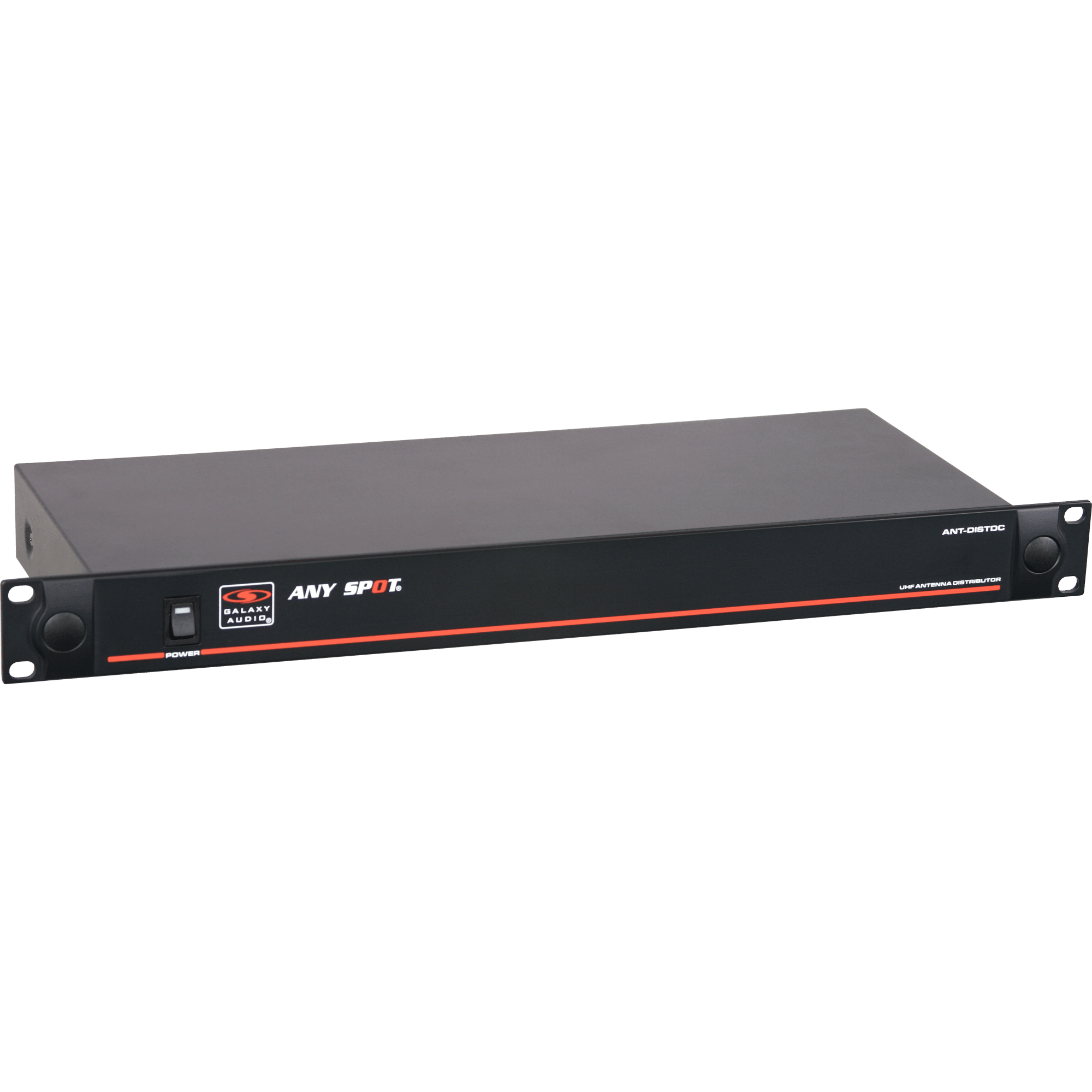

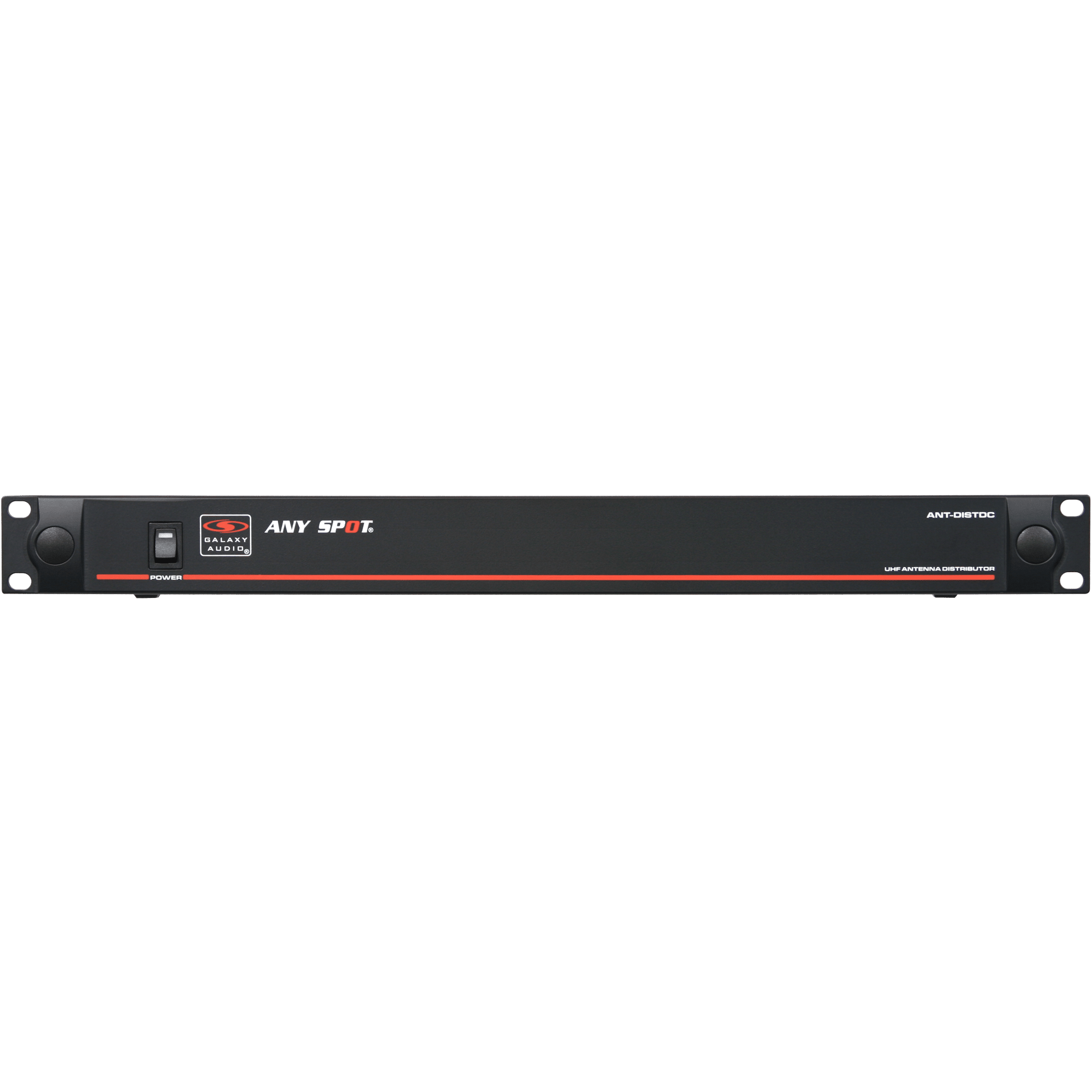

Antenna Distributor ANT-DISTDC

Antenna Distribution System expands wireless microphone systems by splitting one pair of antennas to allow up to four single channel receivers...

View More Details

Buy Now

Find a Dealer

from

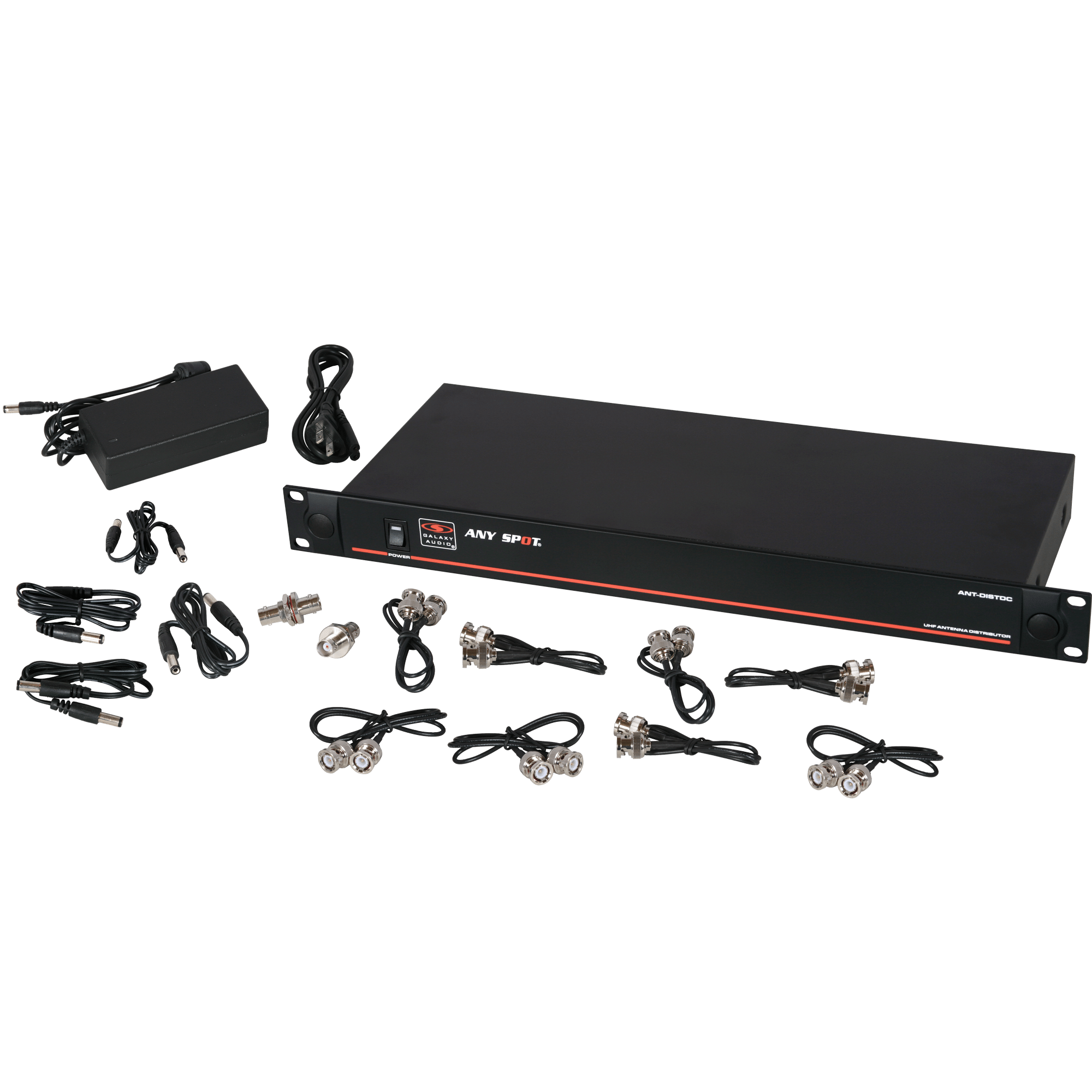

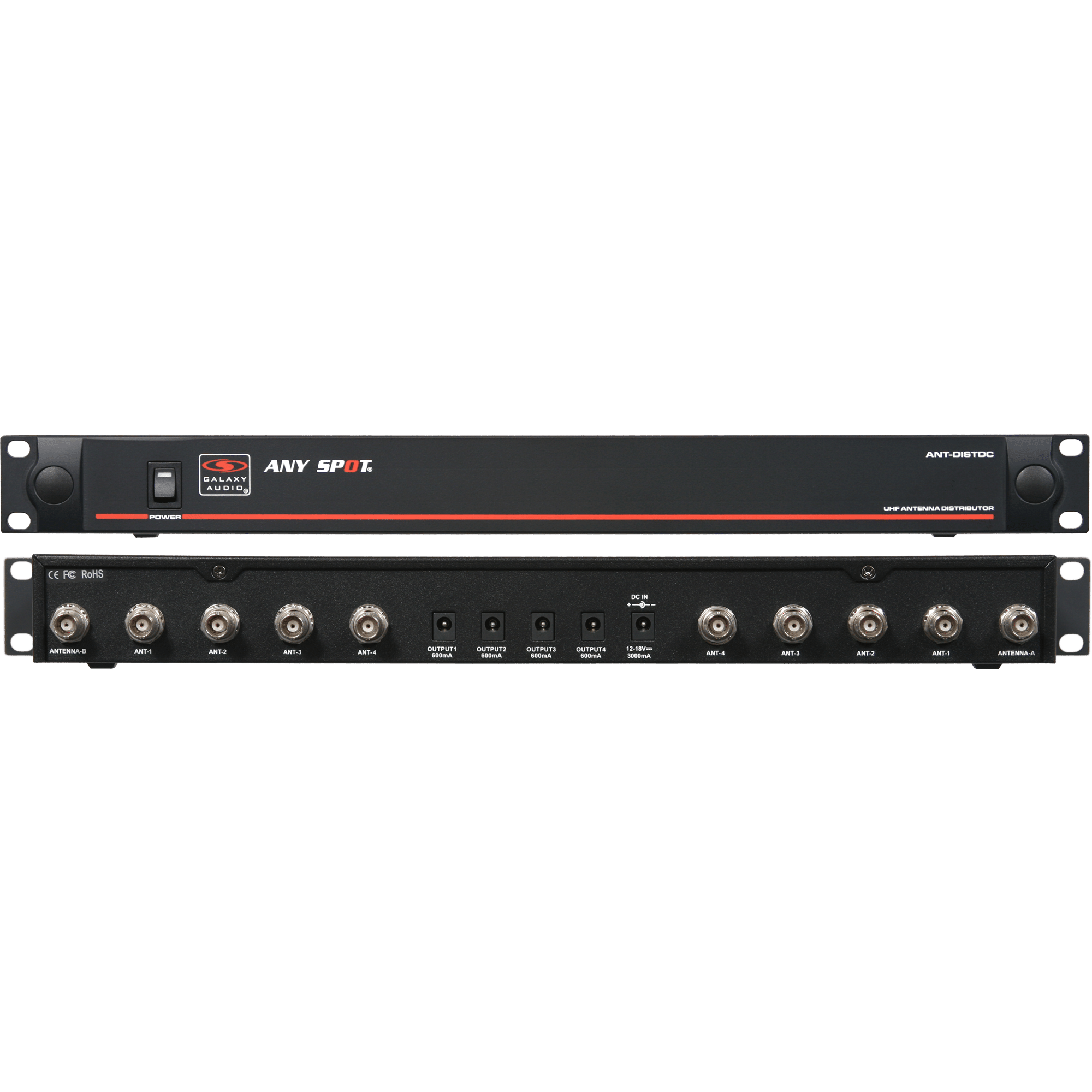

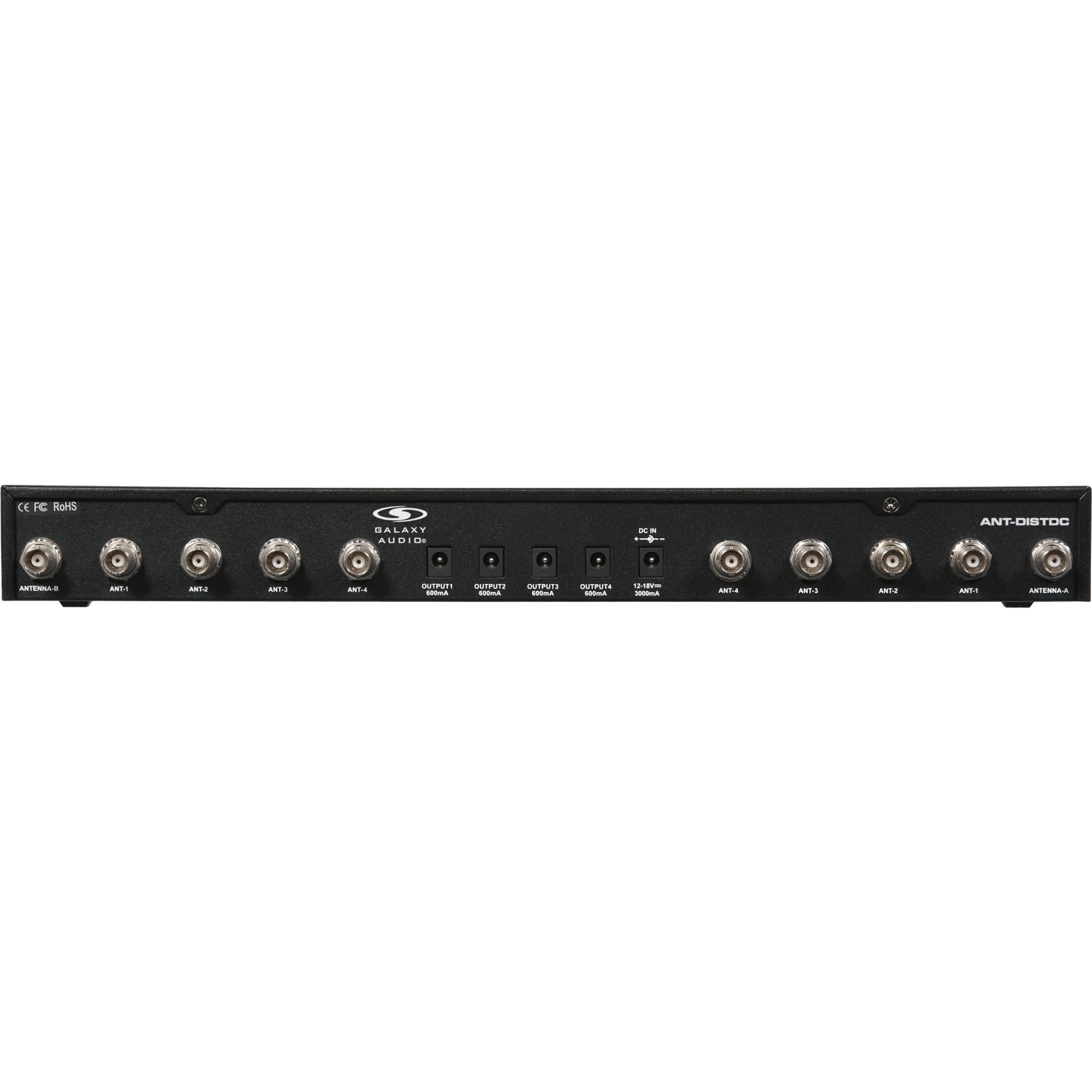

Antenna Distribution System expands wireless microphone systems by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.

  • Combines Antennas for up to 4 receivers
  • Four DC outputs eliminate individual power supplies
  • 500MHz-900MHz Range
  • Built in Antenna Booster
  • Increase receiver signal rans up to 275 ft more
  • 3dB Gain Compensaton
  • 19" Rack Space

Manuals

Manual ( pdf - 0.8 MB )

Product Images

Videos

This product has not been rated yet.

Reviews

  • This item has not been rated yet.

Suggested Products

Federal Communitcations Commission USA

FCC Consumer Alert for Wireless Microphones (U.S.)

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change.

For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at fcc.gov/cgb/wirelessmicrophones
