JIB/Y XLR mic & audio splitter that allows you to split a single mic signal into 2 different inputs.

JIB/Y Audio XLR Mic Splitter Box - need more outputs? XLR splitter splits one XLR signal to two different outputs, contains a phantom block circuit,...

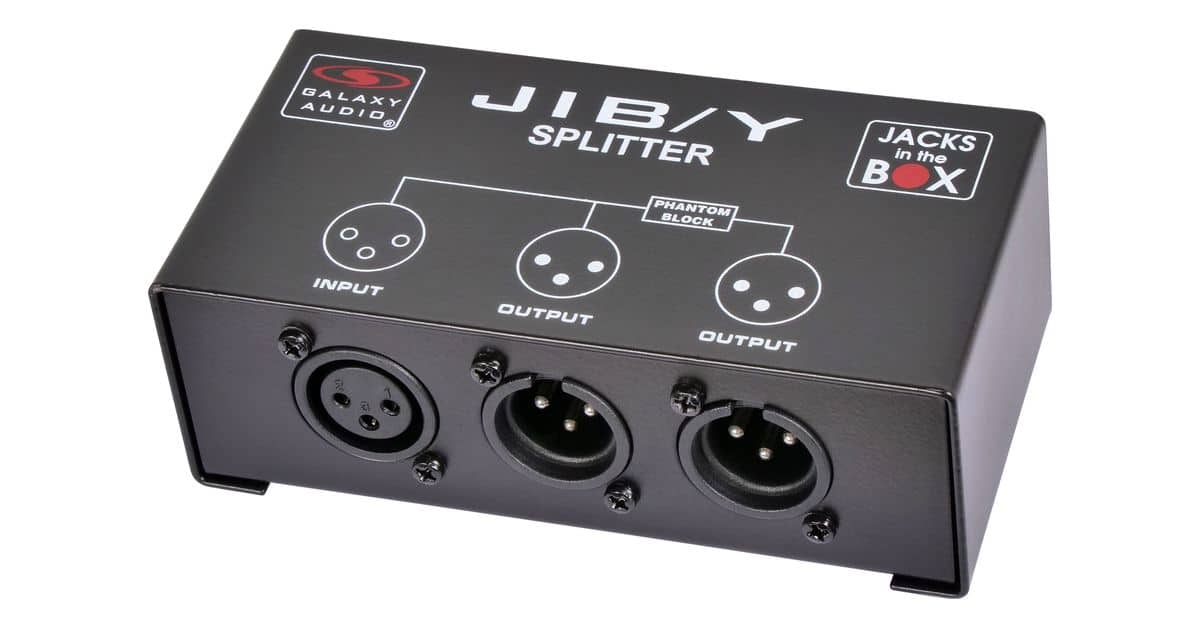

JIB/Y Audio XLR Mic Splitter Box - need more outputs?

XLR splitter splits one XLR signal to two different outputs, contains a phantom block circuit, which prevents interference from two different phantom power sources.

The Galaxy Audio JIB/Y allows you to split a microphone to 2 different inputs. One application is splitting your microphone, first to the monitor board or powered monitor on stage and second to the front of house board. This will split your signal, giving you control of your own stage mix without affecting the house volume. Phantom block circuitry prevents interference from two different phantom power sources.

  • Splits a microphone to two different inputs, like a POWERED HOT SPOT (or other powered monitors) and a console.
  • Phantom block circuitry prevents interference from two different phantom power sources.

JIB/Y XLR mic & audio splitter that allows you to split a single mic signal into 2 different inputs. Specifications

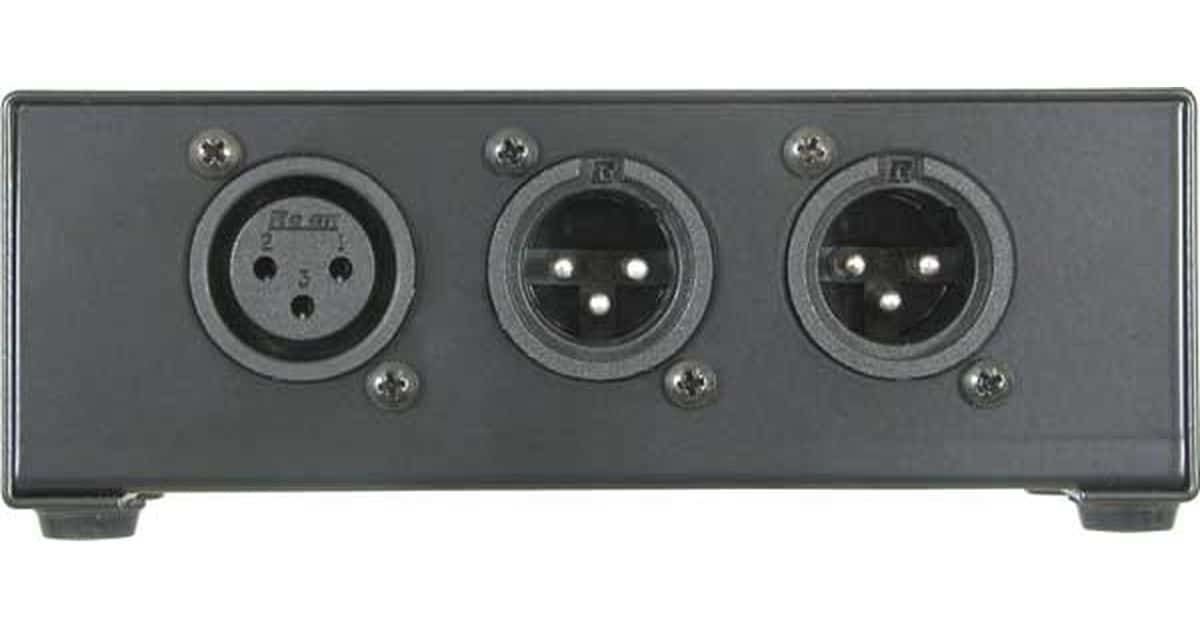

InputOne Male XLR
OutputTwo Female XLR
ConstructionMetal
Dimensions5" x 2.5" x 1.75" (127 x 63.5 x 44.45 mm)
Weight12 oz (340.2 g)

Manuals

Cut Sheet ( PDF - 1.07 MB )
Chart ( pdf - 0.29 MB )
