JIB/C

Add an additional microphone to the POWERED HOT SPOT (or other portable powered speakers) when all inputs are in use. ​Permits phantom power...

This product must be purchased through our retailer network

Choose a Retailer

Find a Dealer

from
$32.39
  • Add an additional microphone to the POWERED HOT SPOT (or other portable powered speakers) when all inputs are in use.
  • ​Permits phantom power to go to both microphones if available from the console.


JIB/C  -  Need more inputs?

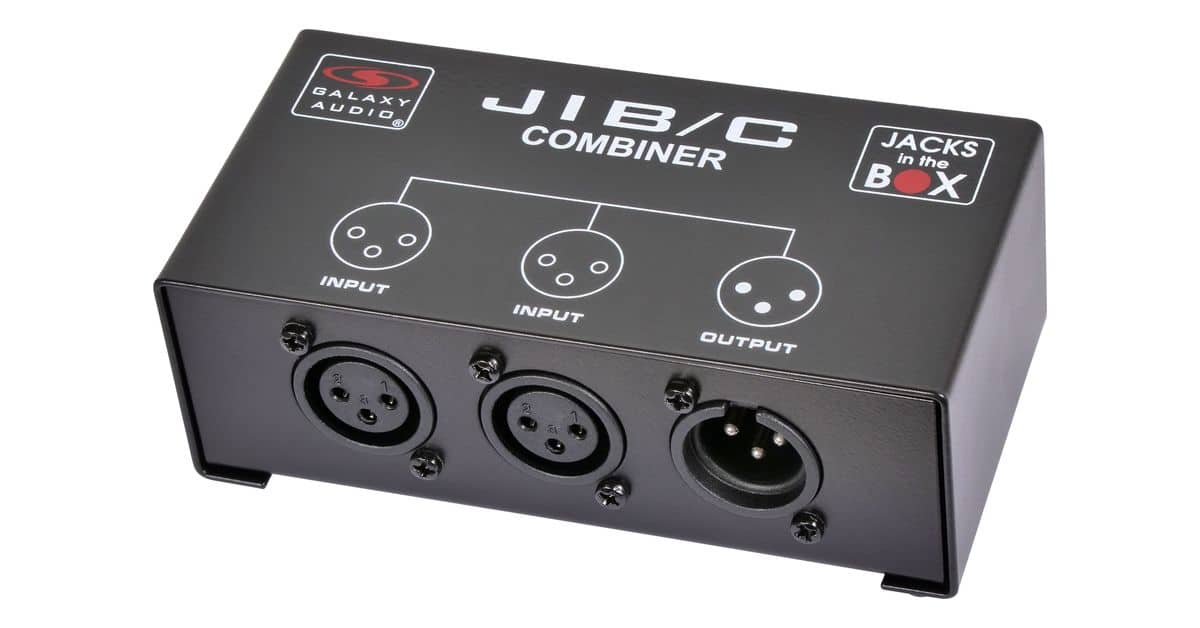

The Galaxy Audio JIB/C is designed for those situations when you need one extra channel to plug a microphone into your mixer. Simply plug a microphone (wired or wireless) into each input and connect the output of the JIB/C to the input of your mixer.  Another great feature of the JIB/C XLR and microphone combiner is that it will also allow the
phantom power (supplied from the mixing console) to go to both microphones.
Keep in mind, there is a 10dB loss to summing. It would be best to sum microphones in the same sound field such as combining two microphones suspended over a choir.

JIB/C Specifications

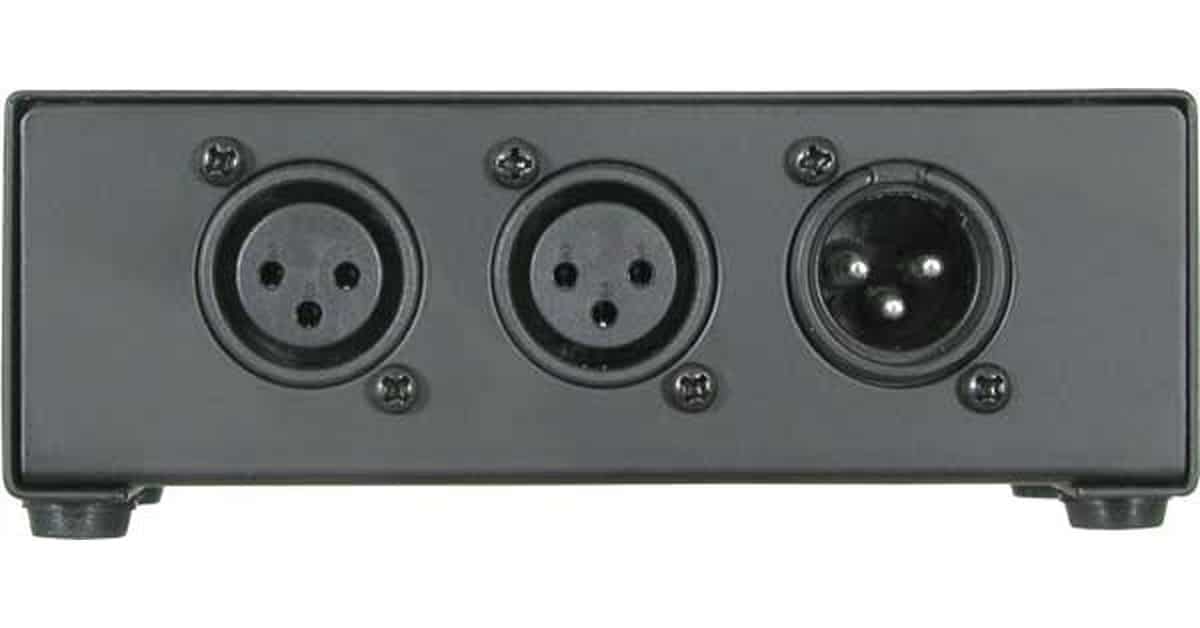

InputTwo Male XLR
OutputOne Female XLR
ConstructionMetal
Dimensions5" x 2.5" x 1.75" (127 x 63.5 x 44.45 mm)
Weight12 oz (340.2 g)

Manuals

Cut Sheet ( PDF - 1.07 MB )
Chart ( pdf - 0.17 MB )
