CM-C200

Over time, all SPL meters lose their calibration. The Galaxy Audio CM-C200 is a sound pressure level (SPL) meter calibrator. The CM-C200 meets...

View More Details

Buy Now

Find a Dealer

from

Over time, all SPL meters lose their calibration. The Galaxy Audio CM-C200 is a sound pressure level (SPL) meter calibrator. The CM-C200 meets IEC 60942 2003 Class 2 and ANSI S1.40-1984 standards. The CM-C200 can calibrate 1", 1/2" and 1/4" microphone capsules at 94dB and 114dB.

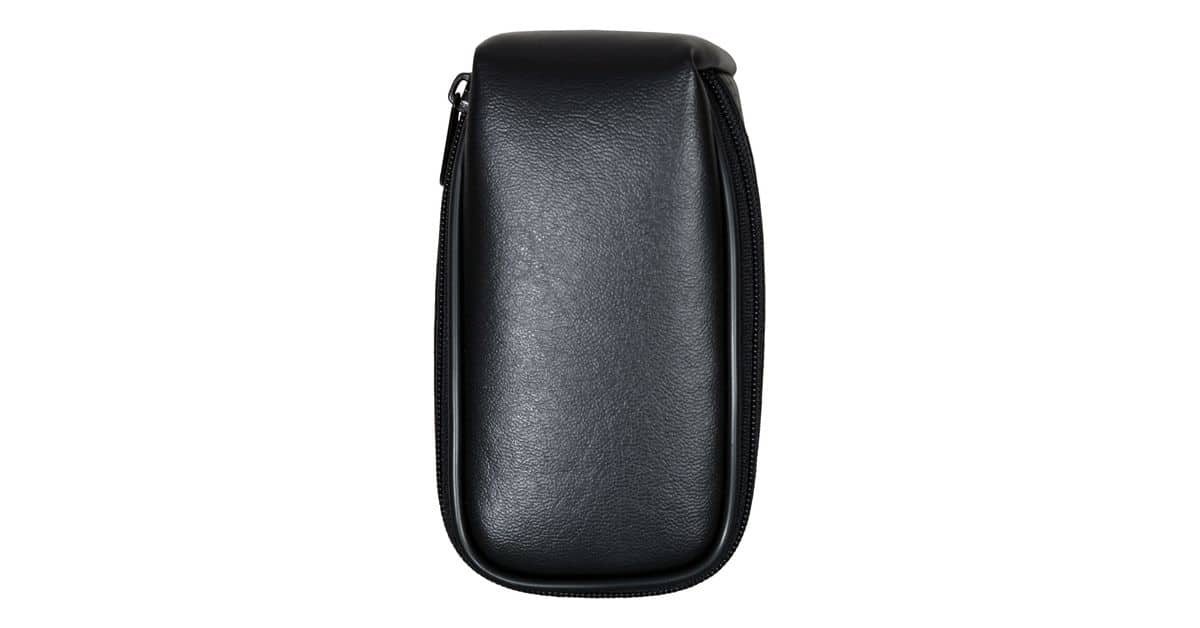

The calibrator is designed to calibrate SPL Meters with a microphone diameter of 1/4", 1/2" and 1". The CM-C200 will work with any of the CheckMate SPL Meters and many other brands. The CM-C200 has a test tone at 1kHz at both 94dB and 114dB. The CM-C200 includes 2 adaptors a protective zipper pouch and manual.

  • Accurate and simple to use
  • Calibration levels of 94dB and 114dB at 1kHz
  • Fits 1", 1/2" and 1/4" diameter microphones
  • Conforms to IEC 60942 2003 Class 2 and ANSI S1.40-1984
  • Weight: approx 0.41lbs (186.4g) (including battery)

CM-80

Today, there is a need to know just how loud your surroundings really are. The CM-80 is an affordable IEC 651 TYPE 2 & ANSI S1.4 TYPE 2 SPL meter. The CHECK MATES are inexpensive tools that everybody working in loud environments should own. Windscreen and protective case are included with the CHECK MATE models.

The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure SPL in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound. We have expanded our line from one CHECK MATE SPL Meter to four products in the category. We have sold thousands of units to working musicians, DJs, police departments, sound contractors, racetracks, etc...

The CM-80 is the latest in the line of Galaxy Audio SPL Meters. The CM-80 measures sound pressure levels in real time, has a MAX/MIN hold function, power save, and has an automatic light detection that will turn the blacklight on when environmental light is inadequate. The CM-80 audio SPL meter comes with a windscreen.

  • Mini Size
  • Low Cost
  • MAX/MIN Hold Function
  • Automatic Backlight Display
  • Level Range Display
  • Resolution 0.1 dB
  • Low Battery Indication
  • Auto Power Off

CM-130

Today, there is a need to know just how loud your surroundings really are. CHECK MATE SPL Meters are inexpensive tools everybody should own. Windscreen and battery are included with the Galaxy Audio CHECK MATE CM-130 SPL Audio DB Meter.

The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure SPL in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound. We have expanded our line from one CHECK MATE SPL Meter to four products in the category. We have sold thousands of units to working musicians, DJs, police departments, sound contractors, racetracks, etc...

  • Mini Size
  • Low Cost High Performance
  • MAX Function
  • Level Range Display
  • Resolution 0.5dB

CM-140

Today, there is a need to know just how loud your surroundings really are. The CHECK MATES are inexpensive tools everybody should own. The Galaxy Audio CM-140 and Galaxy Audio CM-170 meet the same IEC 651 Type 2 standards of SPL meters that cost 5 times as much or more. Windscreen and battery are included with the Galaxy Audio CM-140 and all other CHECK MATE models.

The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure SPL in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound. We have expanded our line from one CHECK MATE SPL Meter to four products in the category. We have sold thousands of units to working musicians, DJs, police departments, sound contractors, racetracks, etc...

  • Mini Size
  • Low Cost High Performance
  • MAX/MIN Function
  • Level Range Display
  • AC Signal Output
  • Resolution 0.1dB
  • IEC 651 Type II, ANSI S1.4 Type II

CM-170

Today, there is a need to know just how loud your surroundings really are. The Galaxy Audio CM-170 is an affordable IEC 61672-1 Type II sound pressure level meter that competes with some of the best audio level meters on the market. The CHECK MATES are inexpensive audio level meters that everybody working in loud environments should own. Windscreen and protective case are included with the CHECK MATE models.

The CHECK MATE series SPL (Sound Pressure Level) meters, first introduced in early 2003, allow musicians, sound contractors, and others to measure sound pressure level in decibels (dB). A decibel is defined as the unit for measuring relative loudness of a sound. We have expanded our line from one CHECK MATE SPL Meter to four products in the category. We have sold thousands of units to working musicians, DJs, police departments, sound contractors, racetracks, etc...

The CM-170 is the latest in the line of Galaxy Audio SPL Meters. The CM-170 is similar to our CM-160 model, except that it has Data Logging with Clock feature, Fast/Slow Time Weighting, and Electronic Calibration. The Galaxy Audio CM-170 comes complete with a carry case, windscreen, USB cable, and software for computer.

  • Freq. Range: 20Hz - 8kHz
  • Freq. Weighting: A/C
  • Fast/Slow Time Weighting
  • Data Logging with Clock
  • USB Mini Interface
  • Includes Software and USB Cable for Charging
  • IEC 61672-1 Type II
  • Range 30 - 130dB
  • Accuracy ± 1.4dB
  • Electronic Calibration

CM-C200 Specifications

StandardIEC 60942 2003 Class 2, ANSI S1.40-1984
Accuracy (under reference conditions 94dB @1kHz)±0.5dB
Output Sound Pressure Levels94dB and 114dB at 1kHz, re 20 uPa (under reference conditions)
Output Frequency1000Hz ±4%
IndicatorsPower/Low Battery LED
Microphone Cavity Size1" (1/2" and 1/4" Adapters included)
Power Supplied ByOne 9V battery, 006P or IEC 6F22 or NEDA 1604 (not included)
Operation Temp.0°C to 40°C (32°F to 104°F) (<90% R.H.)
Storage Temp.-10°C to 50°C (14°F to 122°F) (<70% R.H.)
Dimensions4.62" x 2.47" x 1.72" (117.36 x 62.75 x 43.73mm) (HxWxD)
Weight (with battery)6.6 oz (186.4 g)

Manuals

Manual ( pdf - 0.7 MB )
Cut Sheet ( pdf - 2.24 MB )
