PA6BT Active Full Range Compact Personal Monitor

The original mic-stand-mountable Powered Hot Spot Full Range Compact Personal Monitor with controls right at your fingertips. Galaxy Audio’s...

This product must be purchased through our retailer network

Choose a Retailer
PA6BT Active Full Range Compact Personal Monitor Callout

The original mic-stand-mountable Powered Hot Spot Full Range Compact Personal Monitor with controls right at your fingertips.

Galaxy Audio’s PA6BT Powered Hot Spot continues to be the industry standard in compact near-field live stage vocal monitoring. By minimizing the audio footprint and positioning the monitor in closer proximity to the performer, stage clutter and noise is drastically reduced for a more professional appearance and performance. The lightweight portability of Galaxy Audio compact monitors makes them ideal for gigging musicians and smaller stage venues.

The Powered HOT SPOT® PA6BT personal monitor focuses on live vocal reproduction. The need for a near-field vocal monitor became apparent as stage volumes became increasingly more difficult to control.  The Powered HOT SPOT® PA6BT offers the perfect solution for many live stage and portable PA applications. The PA6BT can be mounted on a microphone stand, positioning the monitor in closer proximity to the user and reducing feedback on stage. The mic stand socket and included mic stand adapter on the PA6BT is designed for use with most mic stands. The integrated handle, mic boom mount, and built-in bracket mount points, combined with the optional MBA (mic boom adaptor), allows a gooseneck or microphone boom to be mounted on top of the unit for a clean monitor set-up.

Many performers purchase cumbersome 12" or 15" floor monitors, roll off the low end and crank up the volume in order to cut through the mix. The Full Range PA6BT’s front facing EQ allows the performer to boost the mid-range, and minimal distance to the performer reduces stage volume and feedback. Galaxy Audio Compact Monitors feature a small, lightweight design, making it easier to transport and is the perfect choice for audio clarity and articulation in hostile stage environments.

The Original Near-Field Compact Personal Vocal Monitor is still the preferred choice by audio professionals worldwide.

  • Built-in Bluetooth® with Performer Facing Volume Control
  • 170 Watt built-in amplifier
  • Freq. Response 80Hz - 18kHz
  • Two Way Speaker System:
    6.5" Neodymium High Power Woofer
    1.5" High Efficiency Tweeter
  • Two Channels with Performer Facing Volume Controls:
    CH.1 XLR / 1/4", CH.2 XLR / 1/4" & 1/8"
  • -20dB Pad Switches on each XLR Input
  • 3 Band EQ Performer Facing Controls
  • Built in Compressor/Limiter
  • Pass Through on each XLR Input
  • Integrated Handle
  • Mounting Point for Mic Boom and Bracket
  • Mounts to Most Mic Stands
  • MSA-1 Stand Adaptor Included

The Details.
The PA6BT takes full advantage of recent improvements in speaker and amplifier technology, making it the lightest, most powerful, and cleanest sounding compact PA system we have ever offered. Features include Bluetooth® technology with its own volume control, a 155 watt NEOLITE 6.5" Woofer, and our highly efficient 1.5" 60 watt Tweeter. XLR pass-through on both channels allow independent control of mics without affecting the signal sent to the house PA. A –20dB Pad switch on each XLR input ensures that even the hottest signals will be accepted without overdriving the inputs. An additional 1/8" Line input on Channel 2 will accept stereo or mono signals from sources including tape or digital media players as well as line level instruments.

The two-way speaker system gives the PA6BT Powered Personal Monitor a much wider frequency response than earlier models. This means that full range music, such as keyboards or backing tracks, will come through with solid bass and crisp highs. The enhanced frequency response makes the PA6BT a great stand-alone PA system for small club gigs, lectures and A/V presentations. A simple adjustment of the 3-band EQ can tailor the response for singers who love the time-honored accentuated midrange of the classic Hot Spot vocal monitor. The PA6BT gives you the versatility you expect for diverse stage set-ups.

The PA6BT comes equipped with a built-in high-tech Class D 170 watt amplifier, designed to handle the most demanding audio environments. This proven, robust design allows the PA6BT to function both as a stand-alone powered personal monitor system or a high-powered vocal monitor designed to cut through loud stage volumes. For larger gigs that require more coverage, simply patch from the Preamp Output to the main house PA, while using the PA6BT as your onstage monitor.

The PA6BT also features a built in 18dB Compressor/Limiter circuit with Compressor and Clip LEDs. The Compressor acts to smooth out transient peaks in the audio signal, resulting in improved overall sound quality and perceived volume. The Limiter is designed to protect the woofer and tweeter from possible damage caused by amplifier distortion. The Clip LED indicates when a reduction in volume is recommended.

"After years of wishing for a small powered speaker for my small private gigs and rehearsals, my dreams have been answered a hundredfold. The Galaxy PA6S is simply the best small monitoring system that I have ever heard that is on the market today. I am able to play 6-7 note Full piano chords, organ and synth leads at sustained high levels without ANY distortion, yet maintaining a brilliant clarity that fills rooms much larger than I thought capable of.  Nothing… I mean NOTHING, gets close!  I am a Galaxy fan for Life!"

Rubén Valtierra
Keyboard Director w/Weird Al Yankovic since 1991

MBA Mic Boom Adaptor

MIC BOOM ADAPTOR: mounts to the top of a PA6BT, PA6S, PA6SR or HS7. The MBA microphone boom and speaker mount adapter allows most microphone booms to be mounted on the top of the Hot Spot to eliminate the need for a stand for the Hot Spot and a stand for the microphone and boom. Works With 3/8" & 1/2" mic boom.

Hot Spot Yoke Bracket / Wall Mount YBHS

Yoke Mounting Bracket and hardware kit for HS7 and PA6BT/PA6S/PA6SR. Will allow for mounting to wall or mic stand (MSA-1 stand adaptor not included with bracket, but is included with the HS7 & PA6BT/PA6S/PA6SR)

  • Works with HS7 and PA6BT/PA6S/PA6SR Models
  • Bracket can Mount to Walls or Ceilings
  • Mount Vertically or Horizontally to Microphone Stand if used with the MSA-1 Adaptor (included with HS7 & PA6BT/PA6S/PA6SR)
  • Multiple Mounting Points for Tight Spaces and Reduced Visibility

MSA-1

Spun aluminum mic stand adapter with 5/8" Female thread insert and 3/8" female threaded insert at opposite end.

The MSA-1 will mount a unit to any microphone stand. Works with all HOT SPOT MONITORS.

Life Saver Sand/Water Bag LSR38

The Galaxy Audio Life Saver is a unique equipment stand stabilizer that may be used in a variety of ways in Audio, Video, Lighting, and Theatre applications. Any mic or speaker stand may become unstable because of a top-heavy center of gravity, a boom extended laterally, or simply because the stand is set on an uneven surface. When filled with Sand or Water the Life Saver provides enough weight at the bottom to stabilize most mic and speaker stand applications. The doughnut shape of the LSR38 ensures that the Life Saver will stay on the base of the stand, even if the stand is pushed or bumped. The LSR38 weighs 38lbs. when filled with sand, and 22lbs. when filled with water. The durable reinforced vinyl material and easy-fill water tight design allow the user to transport the Life Saver empty, and fill with water on location. The LSR38 dimensions are: 16" O.D. x 6" I.D. x 3" Thick. The Life Saver will pay for itself the first time it prevents your expensive mics or speakers from hitting the floor. (Sand/water not included)

  • May be filled with sand or water
  • Protects mics and speakers from damage
  • Helps keep microphone, speaker and lighting stands upright
  • Sand/Water not included
  • Unique doughnut shape keeps bag on the stand

Saddle Bag Sand/Water Bag SDB40

The Saddle Bag Sand/Water Bag is designed to help improve the stability of speaker, keyboard, mic, lighting stands and many other types of stands. Also great as a boom counterweight. The Saddle Bag is constructed of a durable reinforced vinyl. When filled with sand (not included) the Saddle Bag weighs approximately 45lbs and 28lbs when filled with water. The filled Saddle Bag will help stabilize a top- heavy stand.

Works great on keyboard, speaker, mic, lighting, and many other types of stands.

Great for: bands, churches, theater, broadcast, recording & video production

  • Dual wing design
  • Nylon handle with clip
  • May be filled with sand or water
  • Helps protect equipment from damage and keeps stands upright and stable

Sand can be acquired at most home improvement centers, concrete supply warehouses, landscaping supply houses or a sand blasting supply company. Tip: Coarse dry commercial sand works best. Use a funnel for faster fills. Equipped with large 1-inch inner diameter plugs for ease of filling.

WARNING
1. We are not responsible for any damage caused by the use or misuse of the bag.
2. The water filled bag should not be used near electrical wiring.
3. Only dry sand should be used in a dry bag.
4. Water should not be left in the bag for long periods.
5. Do not subject the bag to freezing weather when filled with water.
6. The bag is not intended as a flotation device.

PA6BT Active Full Range Compact Personal Monitor Specifications

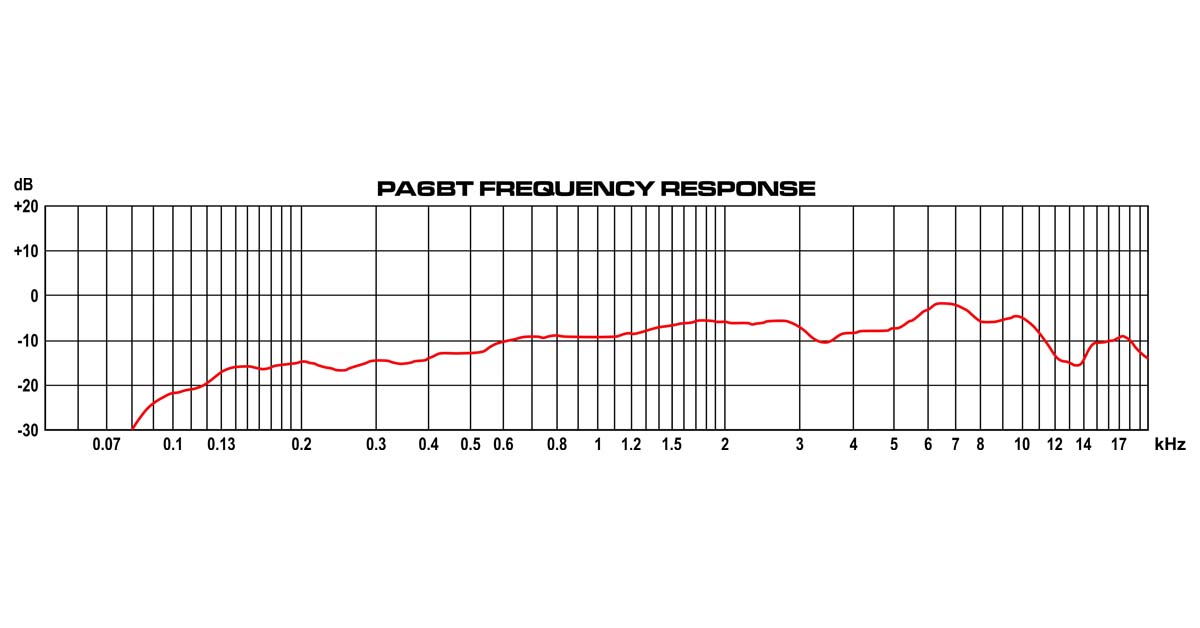

Frequency Response80Hz - 18kHz
Output/Peak170 Watts @ 4 Ohms
Sensitivity98dB, 1 W @ 1 m (1kHz octave band)
Max SPL118dB
Speaker Compliment1 SW6.5, 6.5" NEOLITE Neodymium Woofer
1 ST1.5 ferro fluid cooled 1.5" NEOLITE
Neodymium Titanium Dome Tweeter
Nominal Impedance4 Ohms
EqualizationThree Band Center Detent
Lo: ± 12dB @ 200Hz
Mid: ± 12dB @ 2kHz
Hi: ± 12dB @ 10kHz

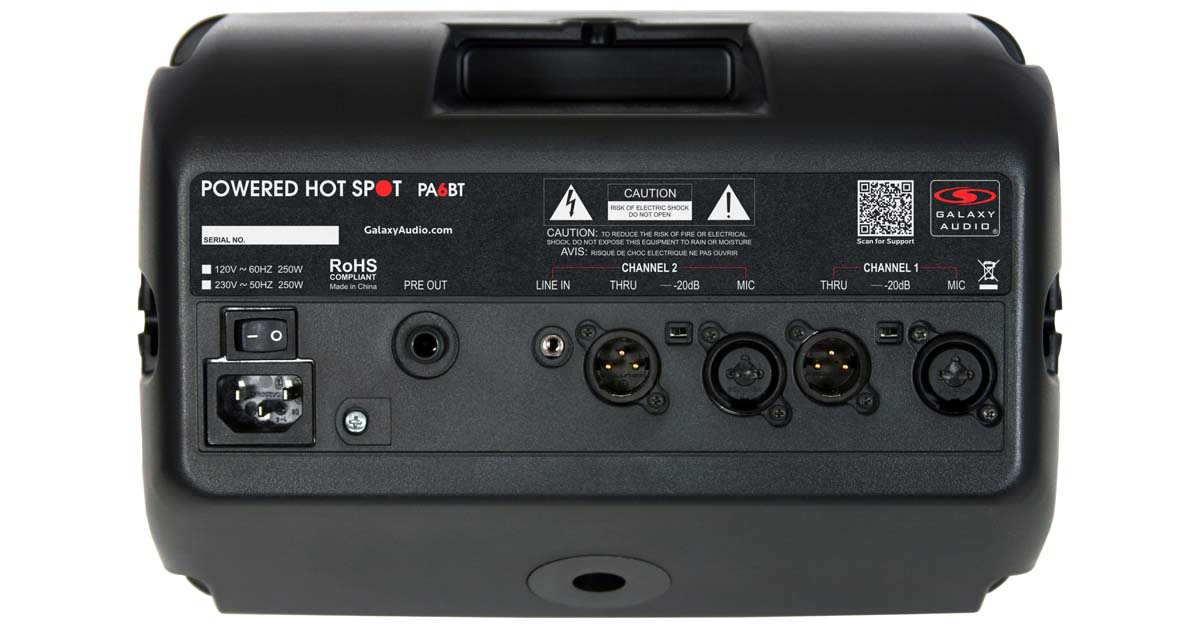

Input ConnectionsTwo 1/4" Balanced/Unbalanced
Two XLR +28V Phantom Power
One 1/8" Stereo Line In
Output ConnectionsTwo XLR Thru Outputs, One 1/4" Preamp Output

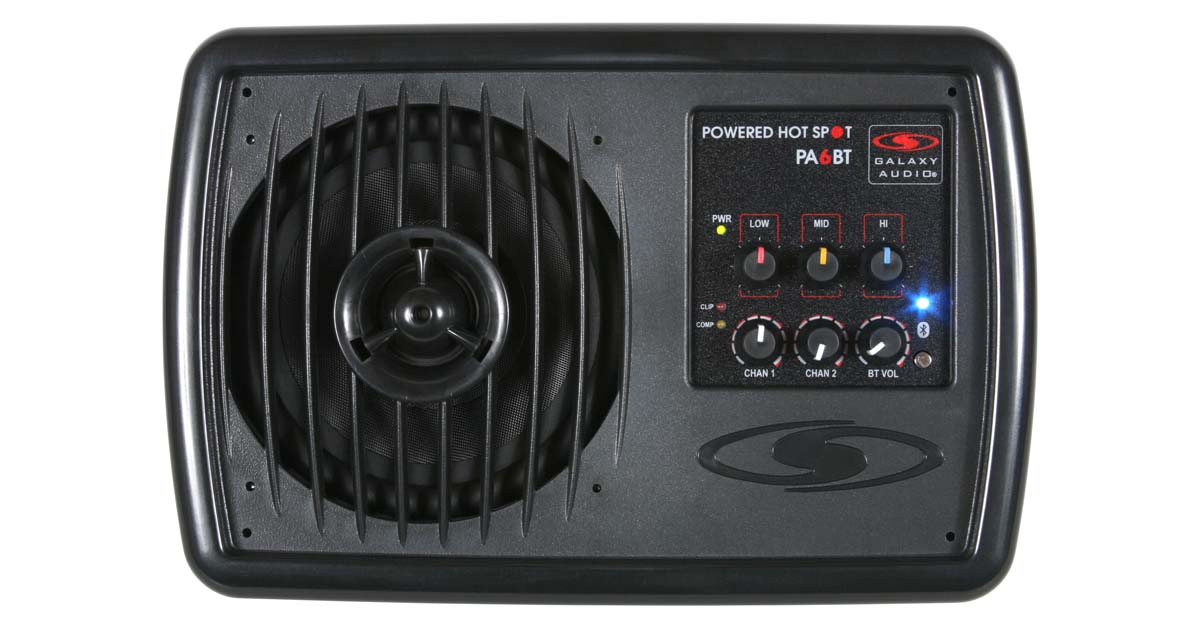

ControlsCH1 & CH2 Level, High Frequency, Mid Frequency, Low Frequency, CH1 & CH2 20dB Pad, Bluetooth® Button, Bluetooth® Volume Control, Power Switch
IndicatorsPower LED, Clip LED & Compressor LED
ProtectionShort circuit current limiting. Short circuit foldback limiting. Thermal short circuit protection
Power RequirementsDomestic: 120Vac~ 60Hz
Export: 230Vac~ 50Hz
Splowt18.44
Enclosure MaterialsFire Retardant Styrene, Integrated Handle
Mounting/RiggingBuilt-in yoke bracket points, built-in mic stand insert
ColorBlack
AccessoriesMSA-1 Stand Adaptor, IEC Power Cable, Quick Start Guide
Dimensions7.75" x 11.75" x 6.75" (197 x 298 x 171 mm)(HxWxD)
Weight6.4 lbs (2.9 kg)

Manuals

Manual ( pdf - 8.57 MB )
PA6BT Quickstart ( pdf - 0.62 MB )
