JIB/BT4R XLR Bluetooth Receiver

The JIB/BT4R is a lightweight, compact, portable XLR Bluetooth® receiver that allows a user to transmit high quality mono Bluetooth® audio...

View More Details

Buy Now

Find a Dealer

from
JIB/BT4R XLR Bluetooth Receiver Callout

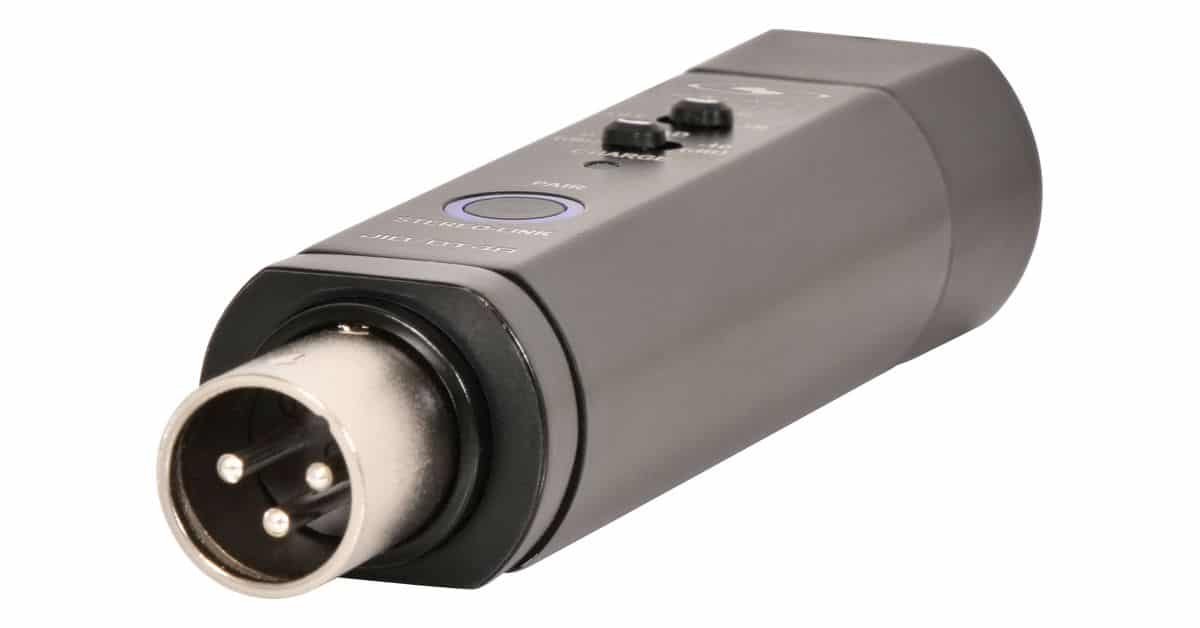

The JIB/BT4R is a lightweight, compact, portable XLR Bluetooth® receiver that allows a user to transmit high quality mono Bluetooth® audio wirelessly from a smart phone to an active speaker or mixing console. The receiver offers a practical, straightforward audio solution for venues that require a quick wireless set up. Just pair the receiver to a Bluetooth® enabled device such as a smart phone and plug it into an active speaker or mixing console. Using the JIB/BT4R eliminates cable clutter for a clean, hassle free set up. The rechargeable receiver enlists an internal 3.7V Lithium battery and comes standard with a micro USB charging cable that can be plugged into a computer or A/C adapter to charge. For a more permanent mixer installation, it can stay plugged in for a continuous power source. DJs accepting requested songs that they might not have in their track list can allow a user to Bluetooth® a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver while using another mic input for vocals. The JIB/BT4R can also be used for a number of other audio streaming applications including dance studios, aerobics classes, school and gym classes, house of worship, karaoke, weddings, and many more.

  • Transmit Audio from Phone to Active Speaker or Mixer
  • Single/Dual Receivers for Mono or Stereo Playback
  • Lightweight, Compact, & Portable
  • Micro USB Rechargeable

JIB/BT4RS Dual Receivers

The JIB/BT4RS wireless Bluetooth® receiver system comes with two receivers to create a stereo-link. After pairing a phone to a receiver via Bluetooth®, a second receiver can be linked to the first receiver to work in tandem. This turns audio transmission into a stereo playback to better fill a room with more sound. Both receivers can then be plugged into two XLR inputs on a mixing console and be outputted to two active speakers or amplifiers.

JIB/BT4R: Comes as a single receiver with a micro USB charging cable.
JIB/BT4R: Comes as a single receiver with a micro USB charging cable.
JIB/BT4RS: Comes as two receivers that work in tandem for a stereo-link playback with a micro USB charging cable.
JIB/BT4RS: Comes as two receivers that work in tandem for a stereo-link playback with a micro USB charging cable.

JIB/BT4R XLR Bluetooth Receiver Specifications

Bluetooth® VersionV4.0
Frequency Range2.4GHz - 2.48GHz

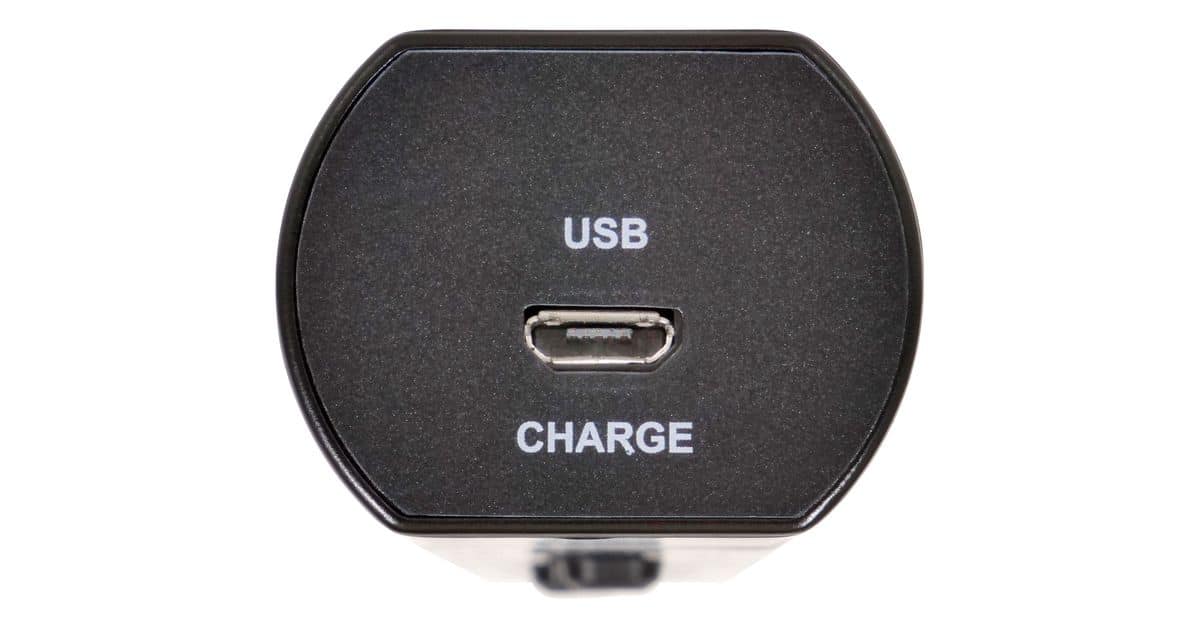

Input ConnectorMicro USB Charging Input

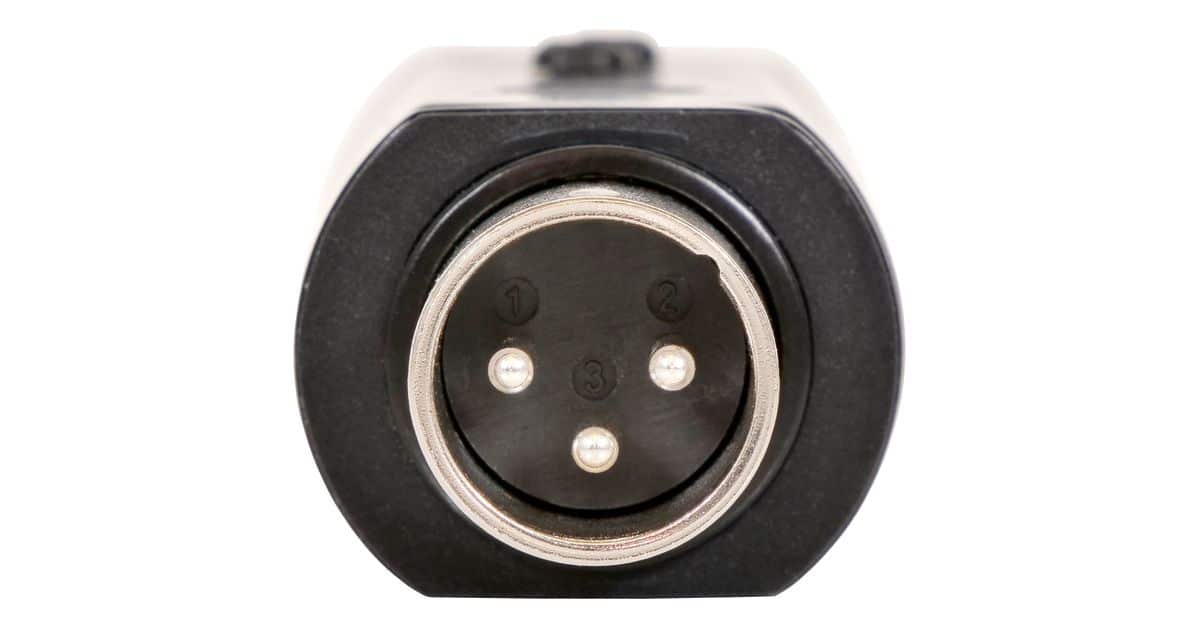

Output ConnectorXLR/M
ControlsPower, PAD Switch, Bluetooth Pair/Stereo-Link Button
IndicatorsCharging LED, Stereo-Link/Pair LED
Sensitivity-80dBm < +/-0.1% BER
Signal to Noise>75dB
Total Harmonic Distortion<0.1%
Operating RangeUnder Typical Conditions 32.8' (10 m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Operating TemperatureRange -40º F to 176º F (-40 Cº to +80 Cº)
Note: battery characteristics may limit this range
Dimensions4.9" x 1.32" x 1.1"
(124 x 33.4 x 27.5 mm)(HxWxD)
Weight3.35 oz (95 g)
Power RequirementsInternal 3.7V Rechargeable Lithium Battery Power Supply
Battery OperationAbout 10 hours

Manuals

JIB/BT4R Manual ( pdf - 3.86 MB )
JIB/BT4R Quickstart Guide ( pdf - 1.59 MB )
JIB/BT4R Cutsheet ( pdf - 0.26 MB )
