ESM8 Single Ear
Galaxy Audio offers the best choice for quality performance in an affordable headset. The super lightweight design makes wearing the microphone...
Buy NowFind a Dealer

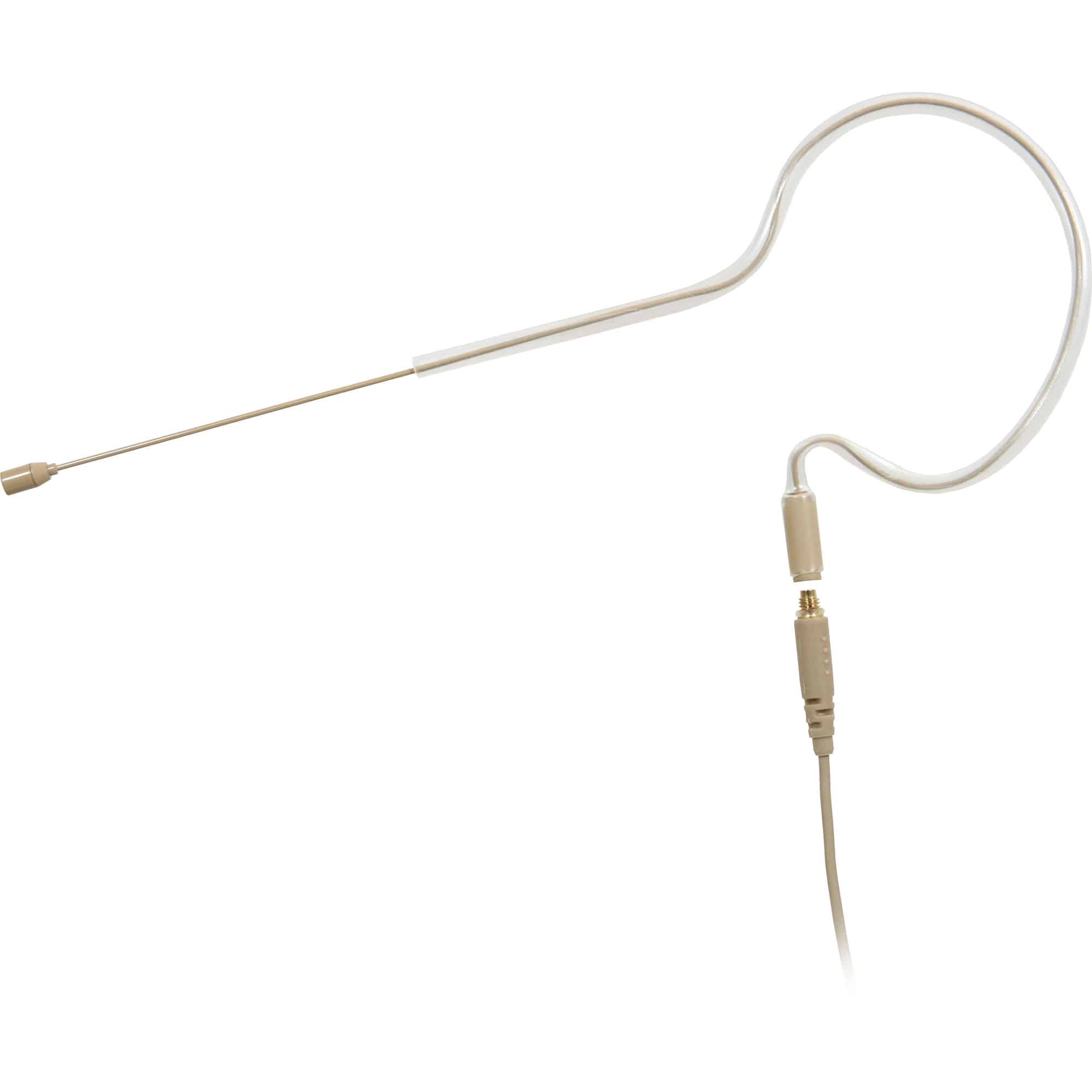

Galaxy Audio offers the best choice for quality performance in an affordable headset. The super lightweight design makes wearing the microphone more comfortable, even for long periods of time, without using excessive pressure to hold the microphone in place. The soft microphone stem allows for easy adjustment of the microphone’s position as you wear the headset. These Headset microphones, work great with many available wireless transmitters. Our detachable cables can be wired to work with transmitters made by Galaxy Audio®, AKG®, Shure®, Audio-Technica® & Sennheiser®. We can also custom wire to work with virtually any brand or model of wireless transmitter. You can also use the microphones with most PC sound cards (adaptor not included).

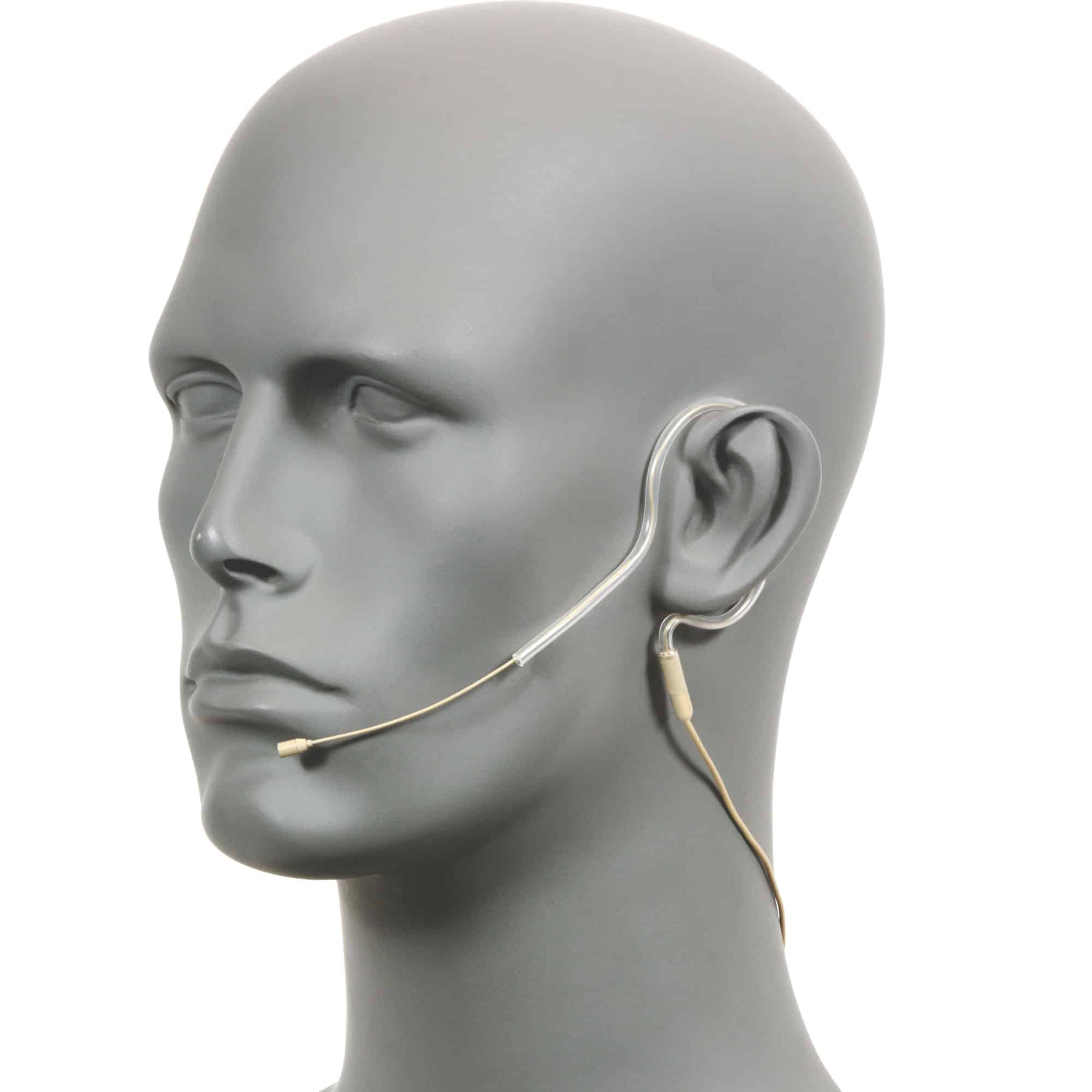

- Hooks Around One Ear
- Flexible for Easy Formation
- 4" Mic Boom Length (Omni)
- 4.7" Mic Boom Length (Uni)
- 3.5 mm Omni Mic Diameter
- 7 mm Uni Mic Diameter
- Condenser Element
- Freq. Response:
Omni..20Hz-20kHz
Uni.....50Hz-16kHz - Detachable Cables

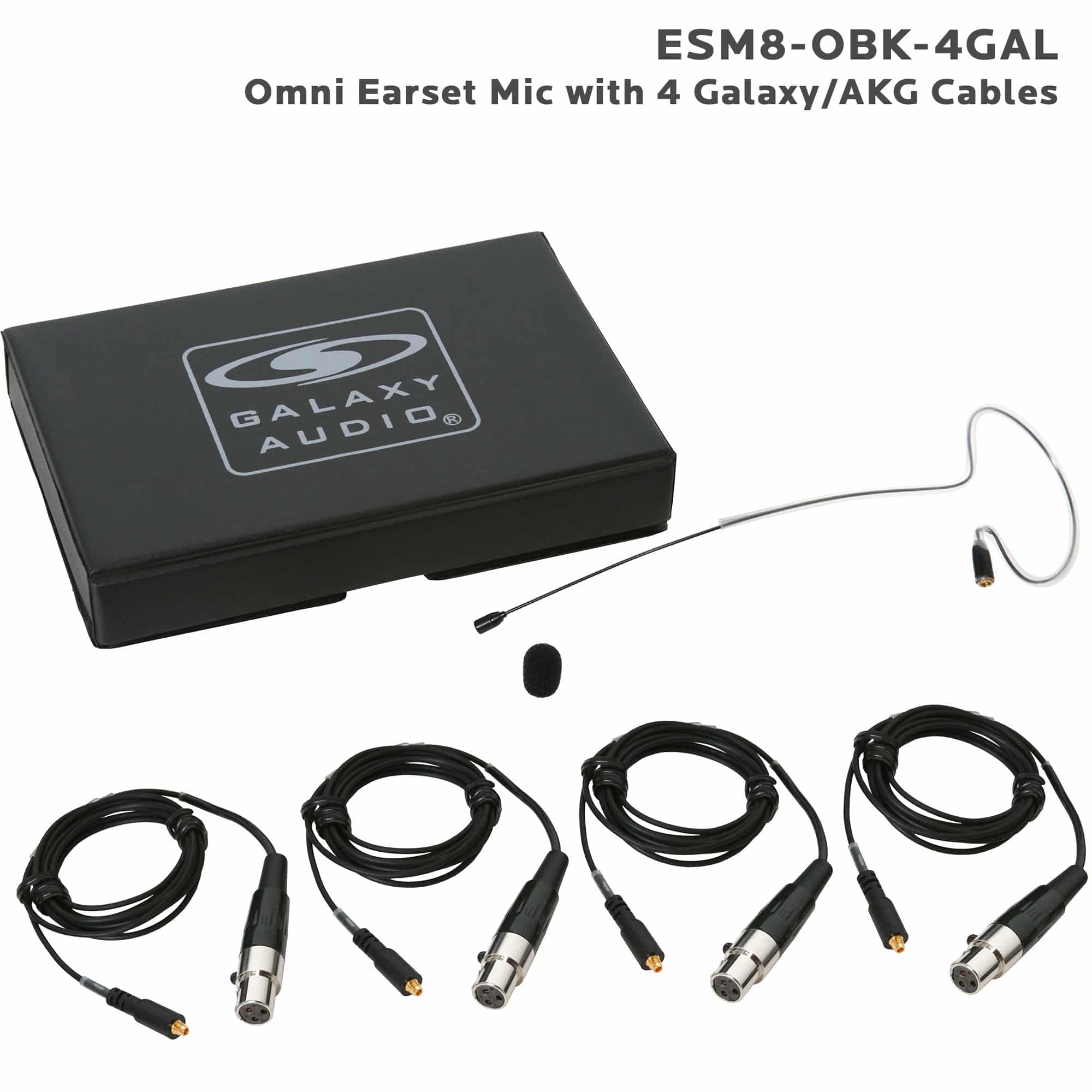

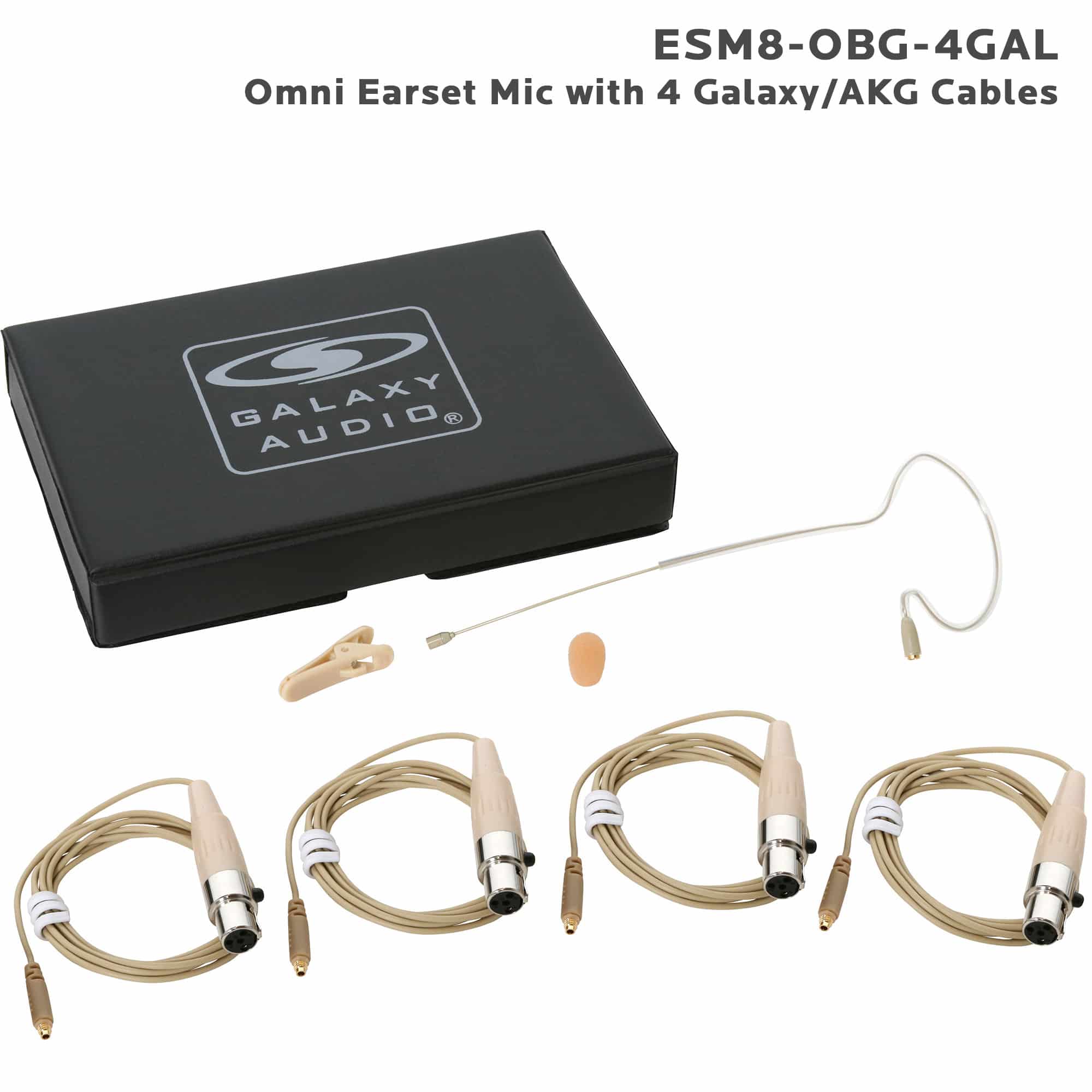

CBLAKG
HSM8 / ESM8 / ES3 / ESS / HS3 / HSD / HSE / HSH Headset Replacement Cable wired for most Galaxy Audio or AKG systems with a TA3F connector. Available in Beige, Black, or Cocoa.
CBLSHU
HSM8 / ESM8 / ES3 / ESS / HS3 / HSD / HSE / HSH Headset Replacement Cable wired for most Shure systems with a TA4F connector. Available in Beige, Black, or Cocoa.

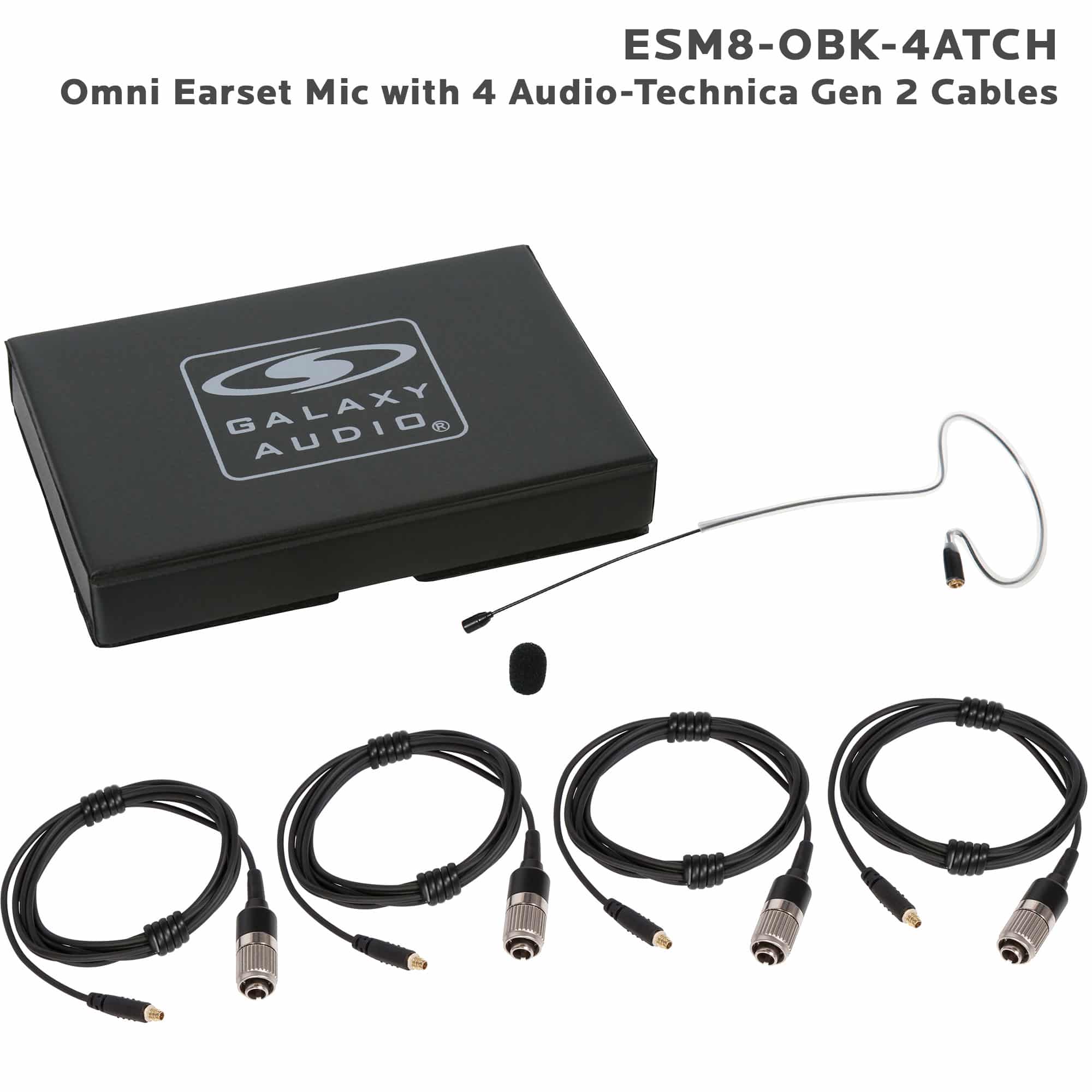

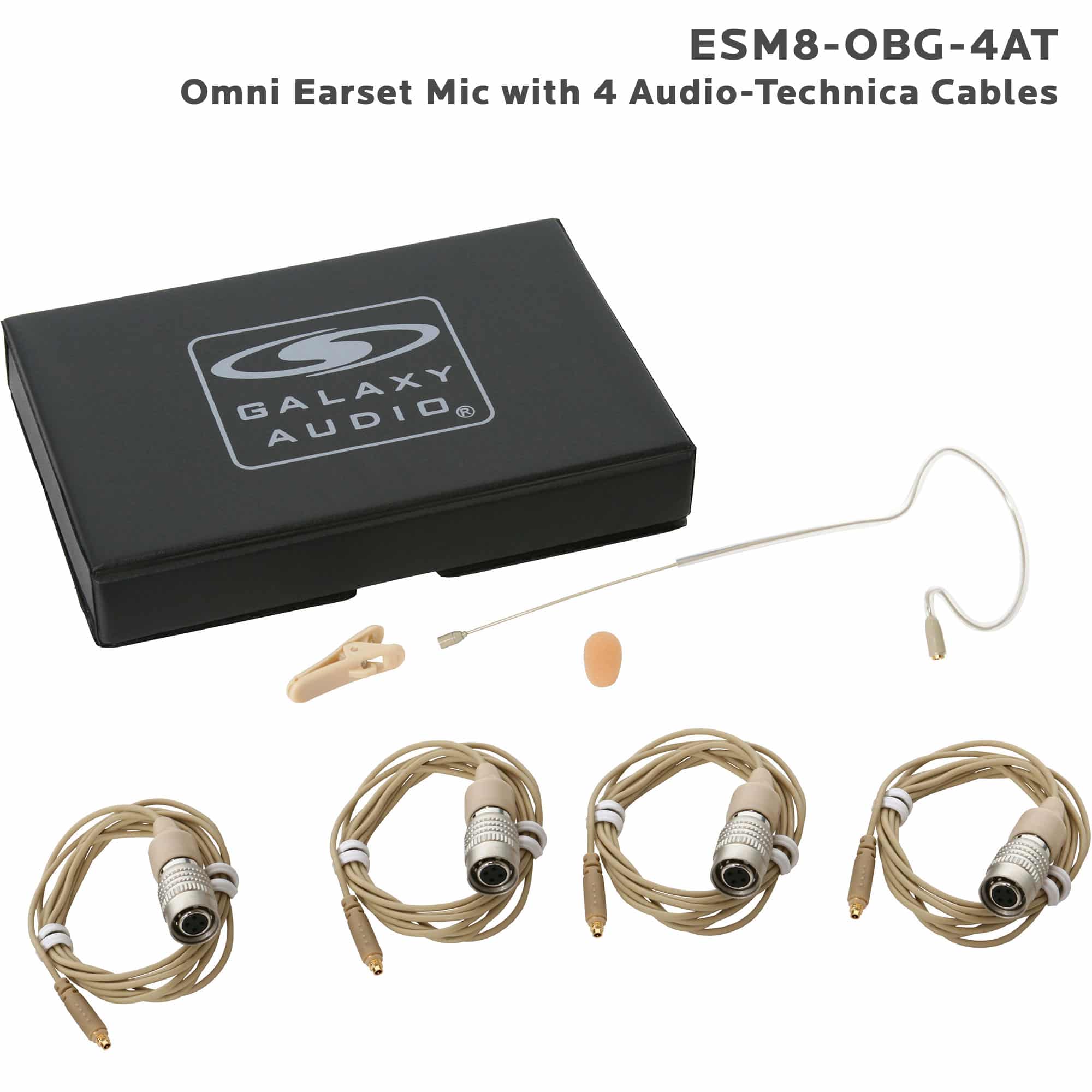

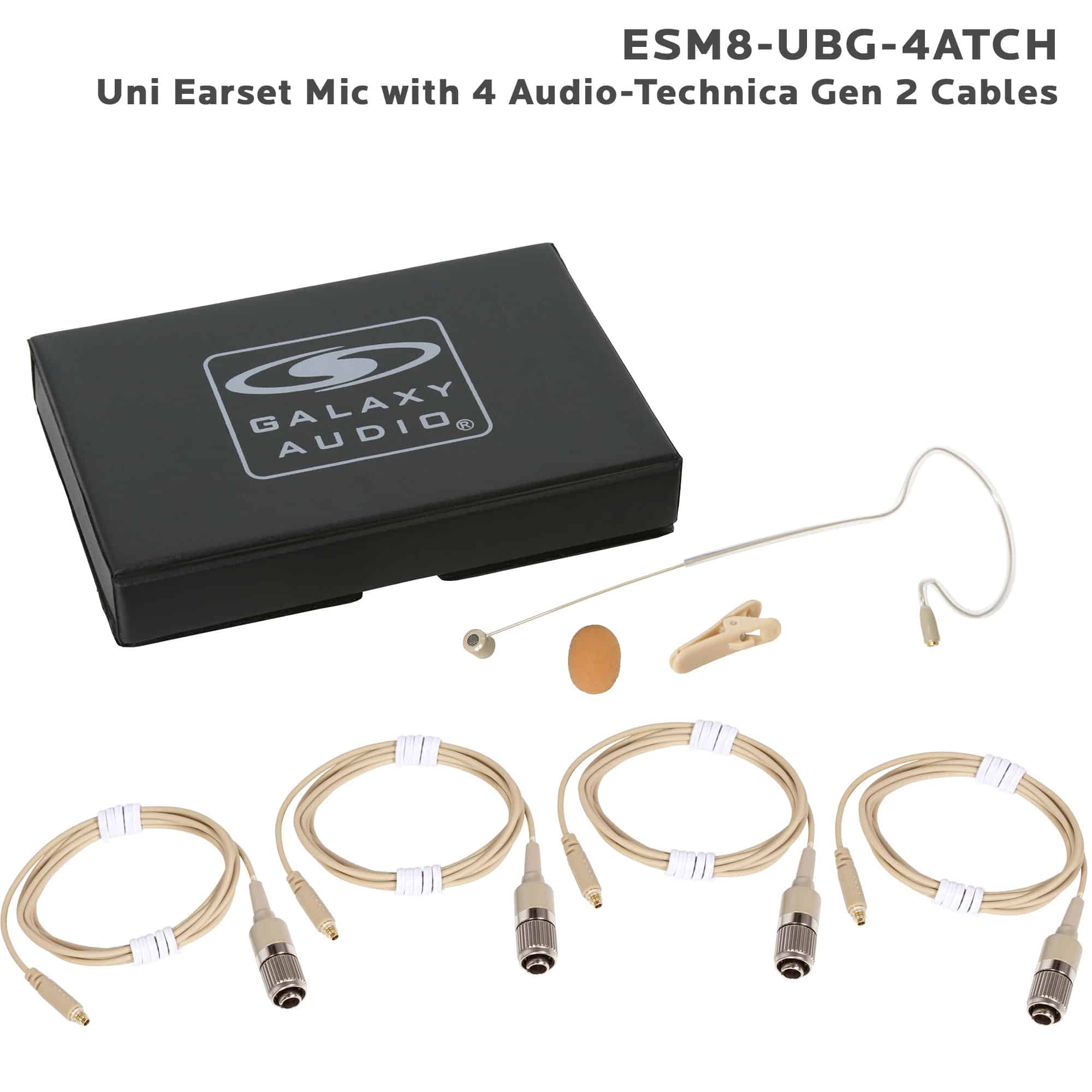

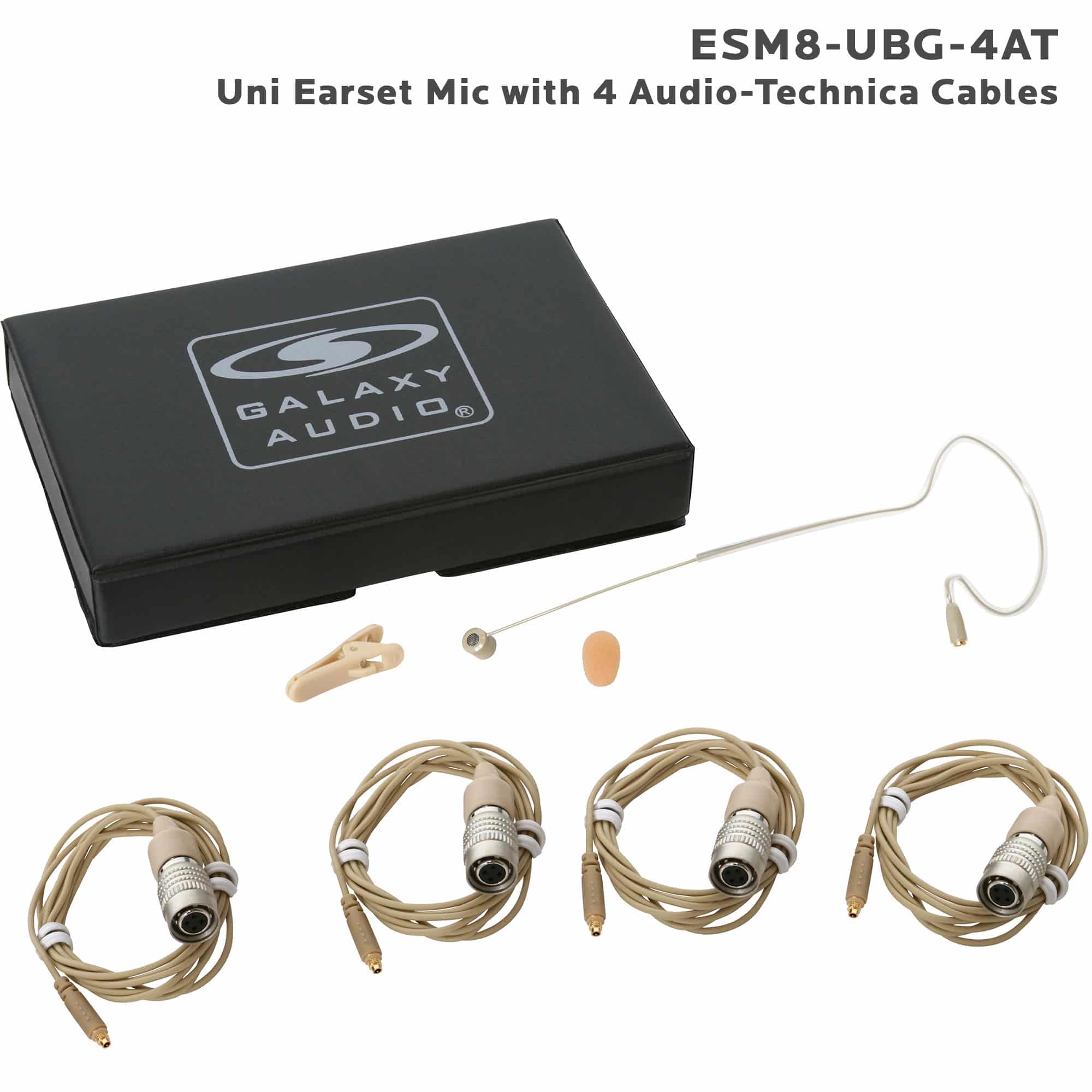

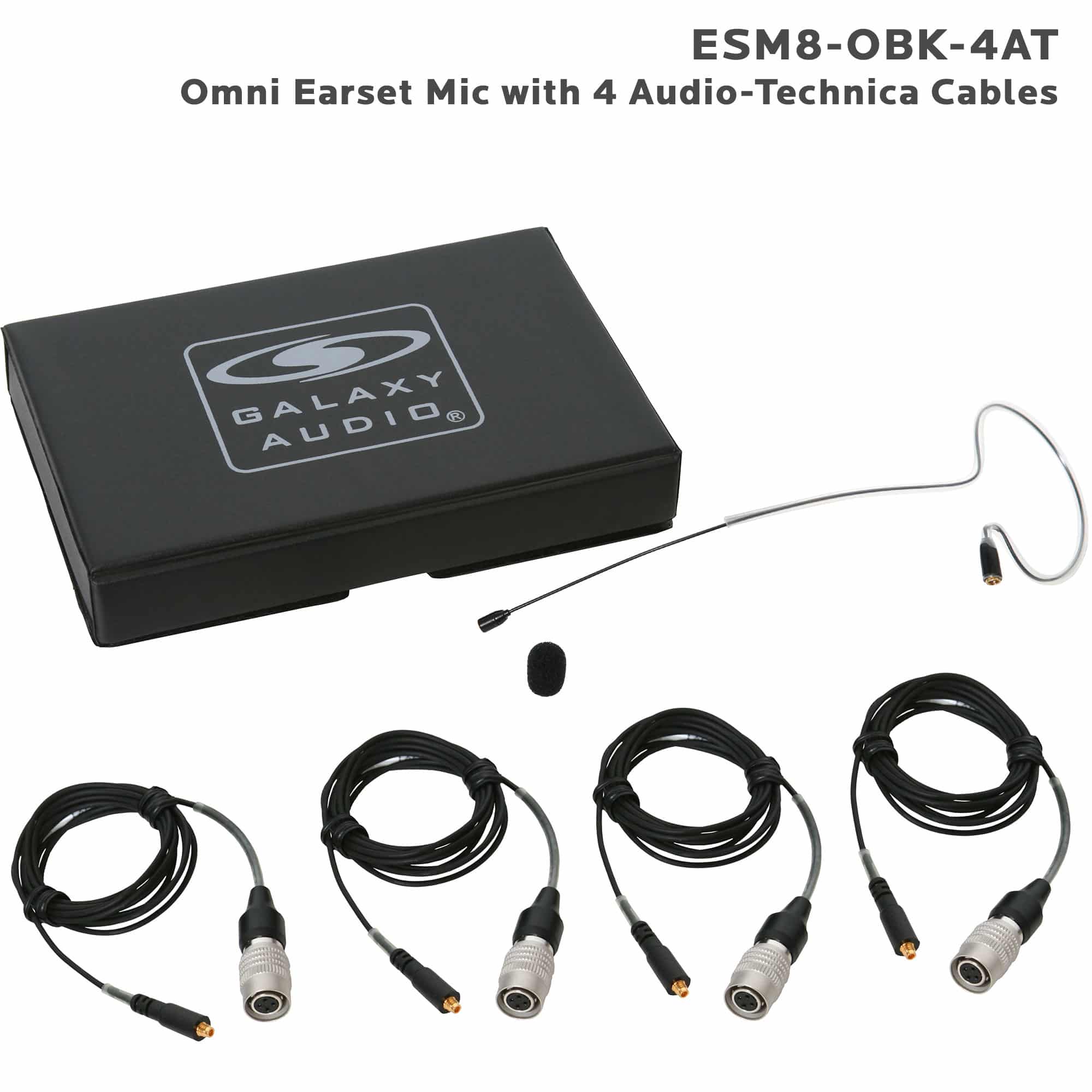

CBLAT
HSM8 / ESM8 / ES3 / ESS / HS3 / HSD / HSE / HSH Headset Replacement Cable wired for most Audio Technica systems with a HIROSE cW 4 pin connector. Available in Beige, Black, or Cocoa.

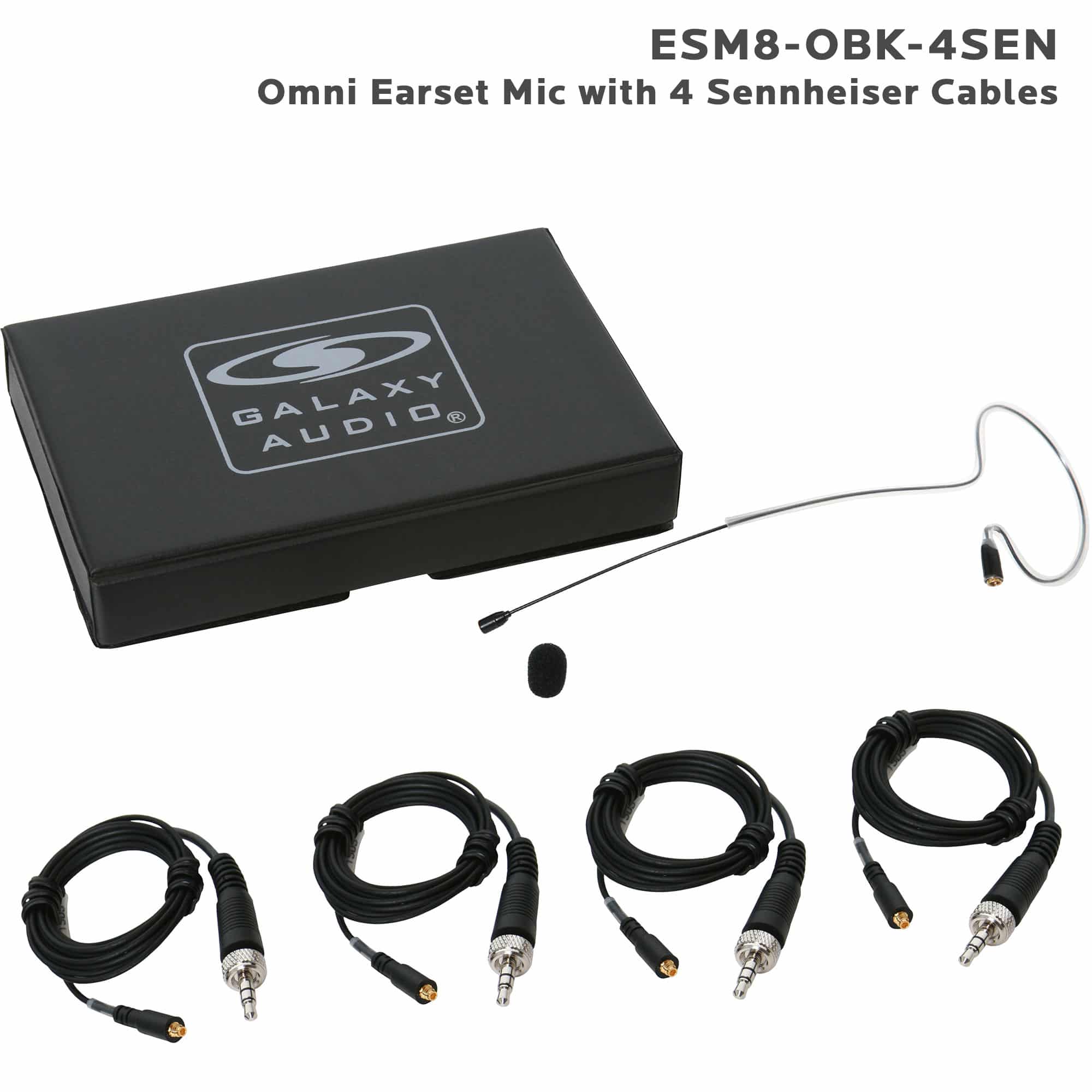

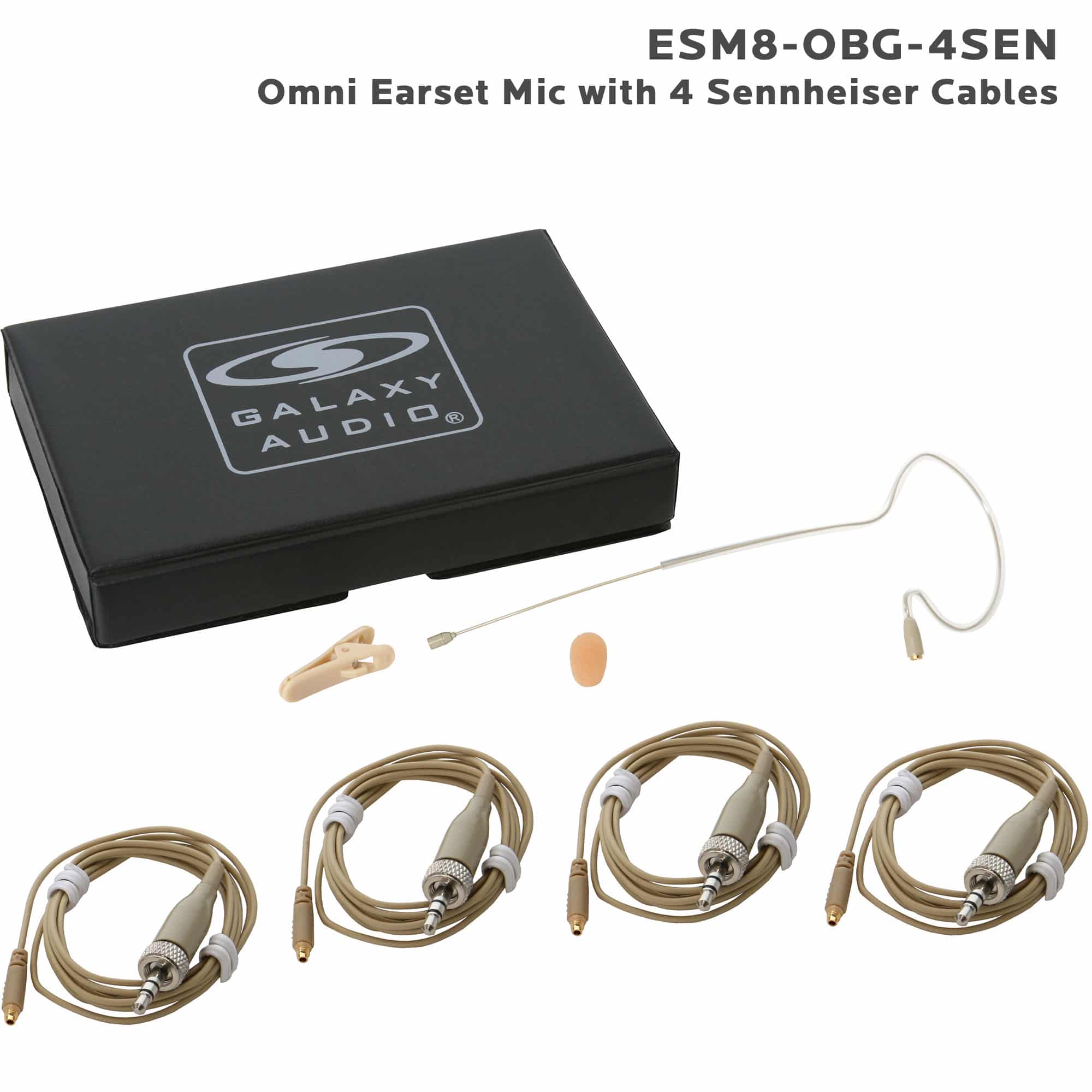

CBLSEN
HSM8 / ESM8 / ES3 / ESS / HS3 / HSD / HSE / HSH Headset Replacement Cable wired for most Sennheiser systems with a 3.5mm locking connector. Available in Beige, Black, or Cocoa.
ESM8 Single Ear Specifications
| Polar Pattern | Uni-Directional / Omni-Directional |
|---|---|
| Frequency Response | Omni: 20Hz - 20kHz Uni: 50Hz - 16kHz |
| Impedance | Omni: 1,800 Ohms Uni: 1,000 Ohms |
| Sensitivity | Omni: -65dB re. 8mV/Pa Uni: -67dB re. 5mV/Pa |
| Max SPL | 135dB |
| Operating Voltage | 1.5 - 9 Vdc |
| Cable Length | 4' (1.22 m) x 1.5 Diameter, 1.5 mm Thick Detachable Cable |
| Mic Boom Length | Omni: 4" Uni: 4.7" |
| Element (Omni) | Omni: Diameter 3.5 mm Uni: Diameter 7 mm |
| Element Type | Back Electret Condenser |
| Included Accessories | Choice of 4 Free Standard Cables*, Windscreen, Choice of Cable, Manual |
| Color | Beige (Omni and Uni) or Black (Omni only) |
| Weight Without Cable (Omni) | Omni: 2.8g Uni: 2.9g |

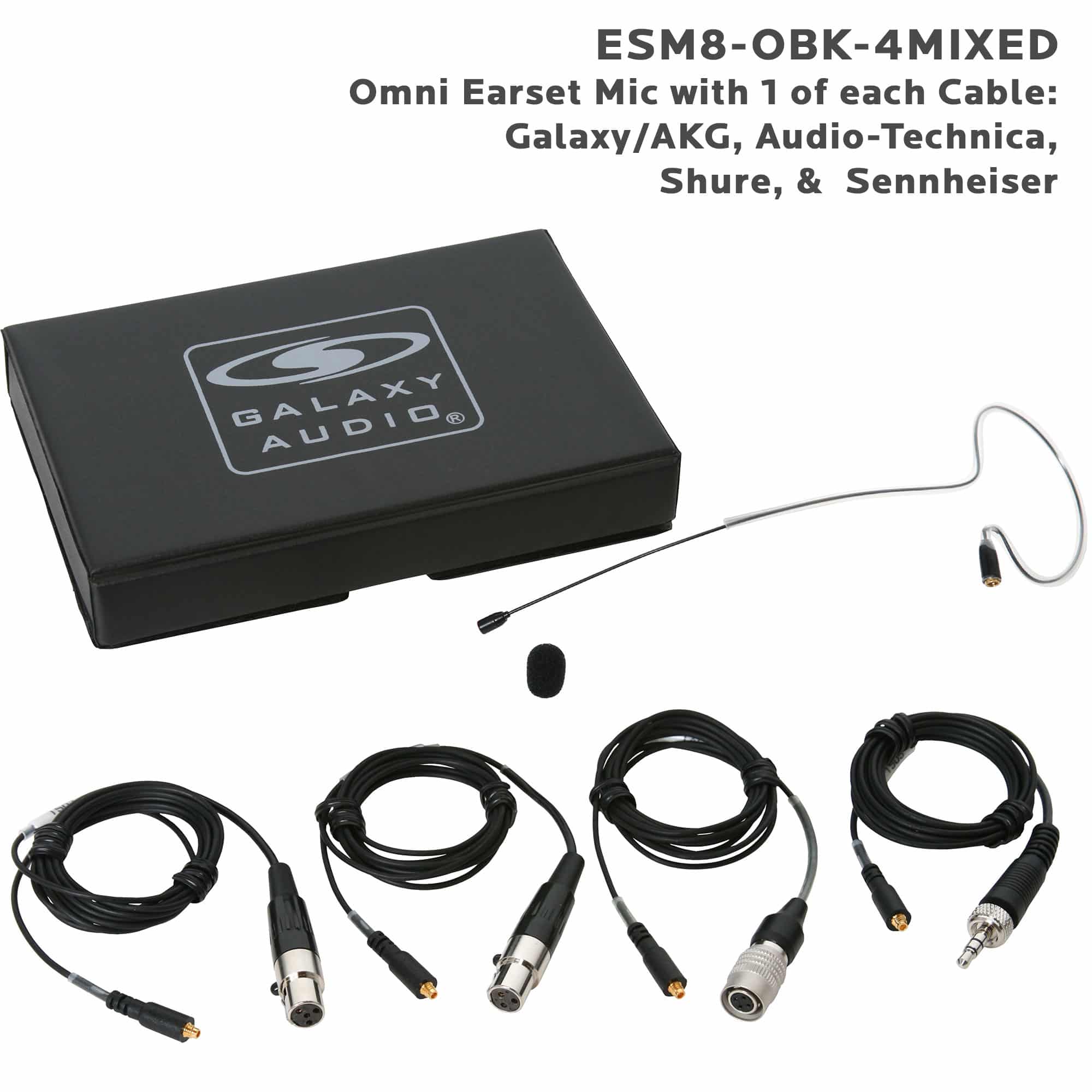

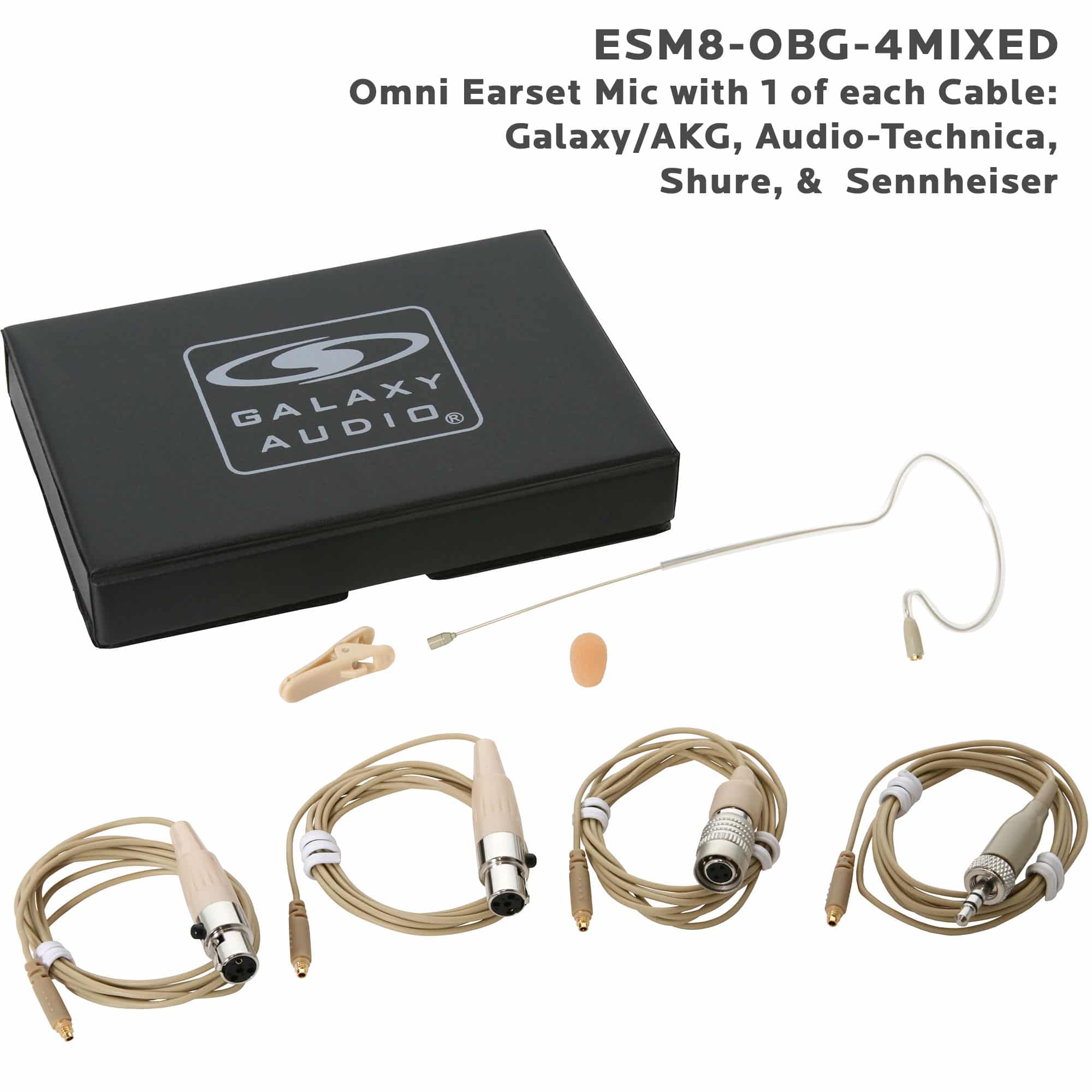

| *4 Free Standard Easy-Replace Cables. Galaxy Audio®/AKG®, Shure®, Audio Technica®, and Sennheiser® or a Mix of all 4. We wire for most brands. Additional charges may apply. |
