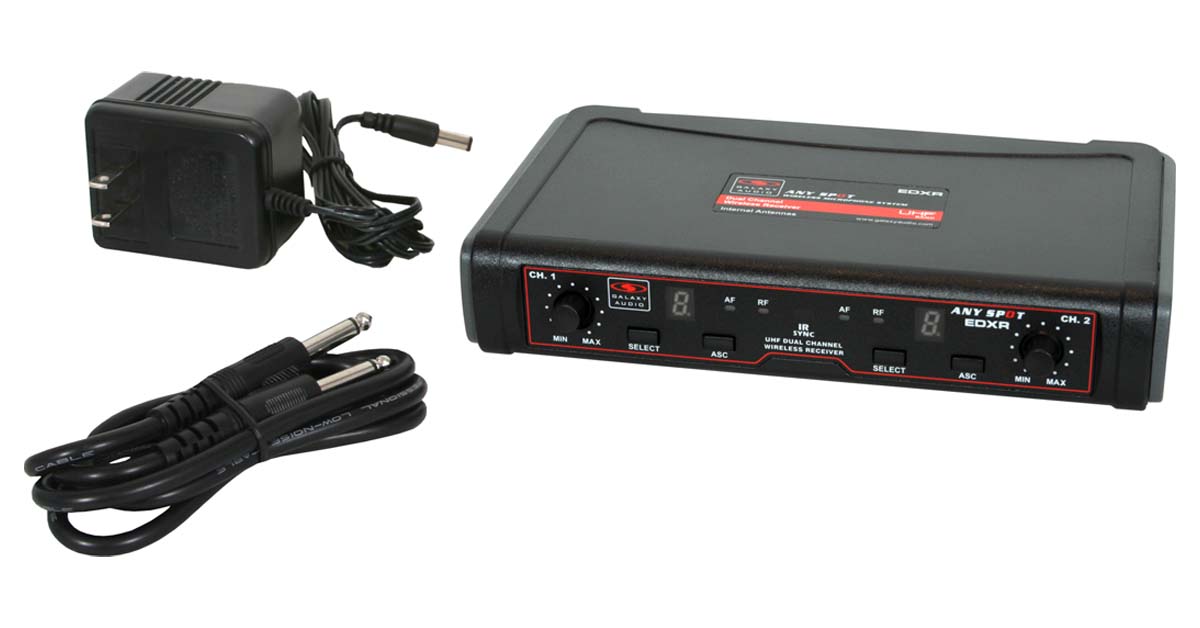

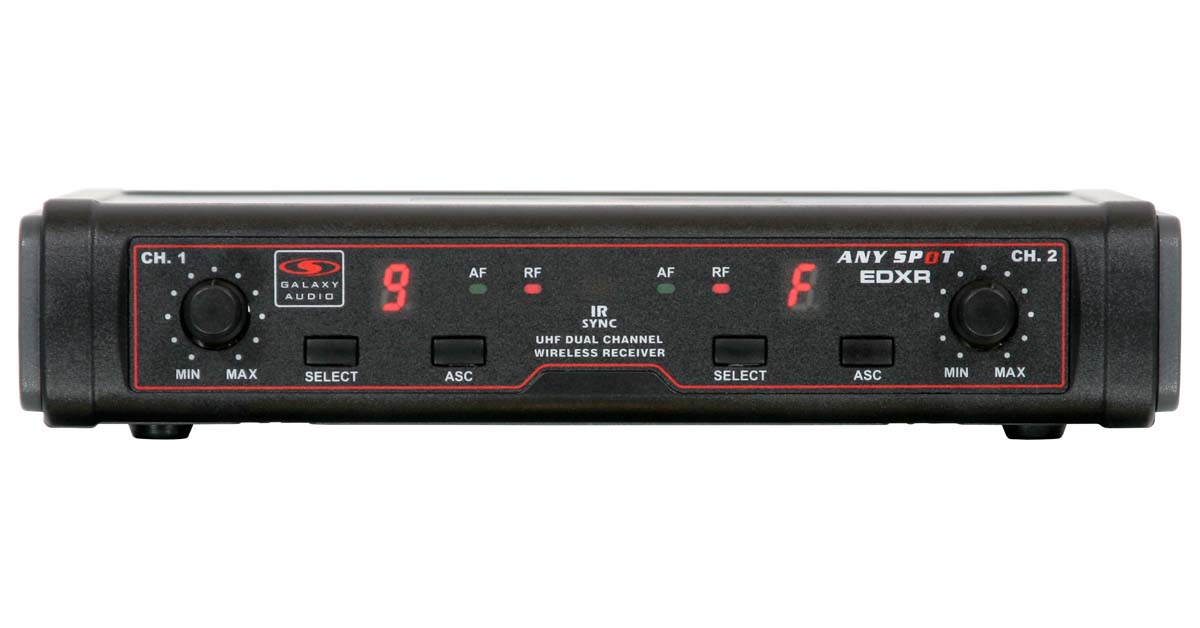

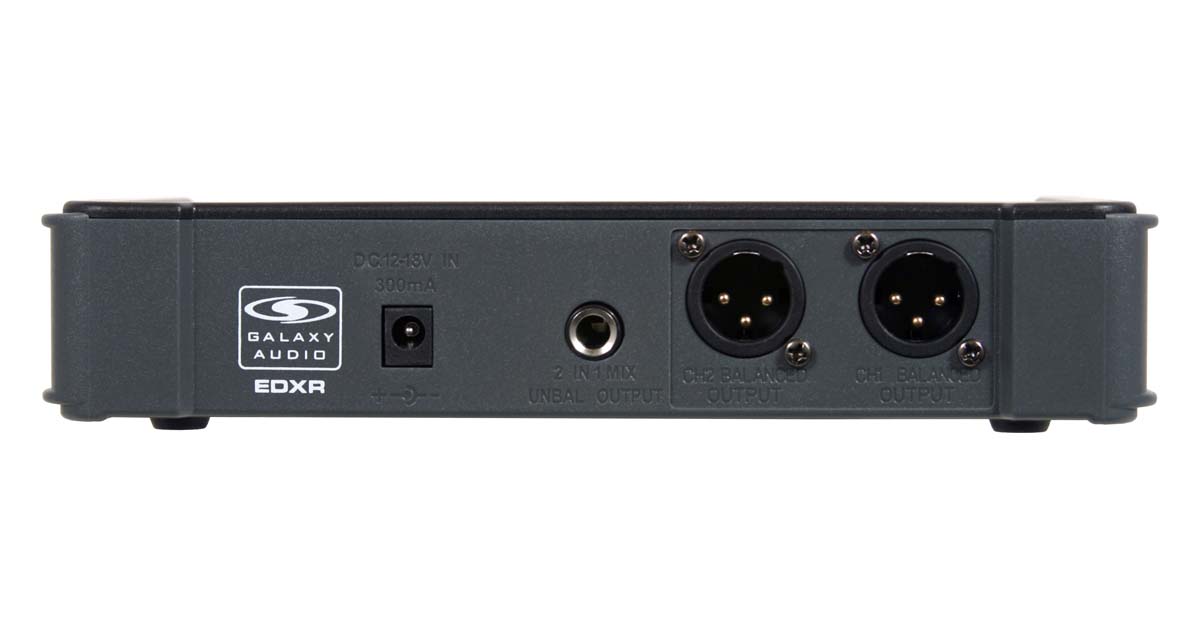

The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.
The EDXR can be used and will sync with either the HH38 handheld or the MBP38 body pack transmitters. Systems with the MBP38 body pack are available with either a lavalier, or headset. Both transmitters feature an on/off switch and are powered by two “AA” batteries. The MBP38 body pack transmitter also features a Mic/0/-10 selector switch for various input level sources.
EDXR/38SV - Headset and Lavalier Microphones: Uni-Directional. This system includes the EDXR Receiver, 2 MBP38 Body Pack Transmitters, the HS13-UBK Headset Microphone, and the LV13-UBK Lavalier Microphone.

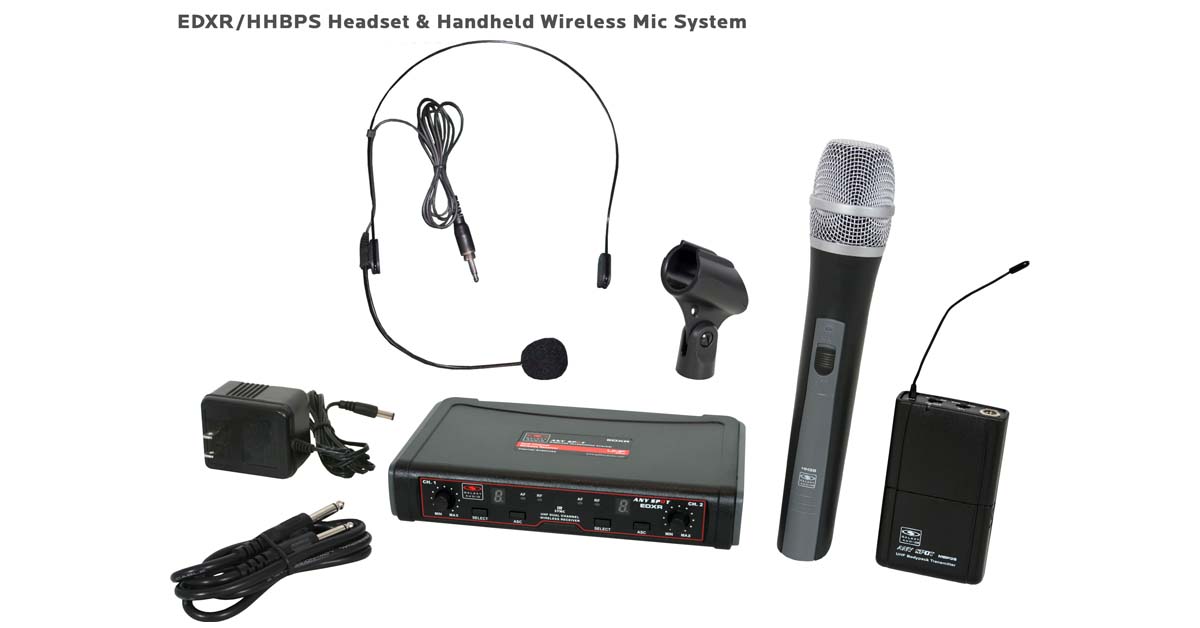

EDXR/HHBPS - Headset & Handheld Microphone: Uni-Directional. This system includes the EDXR Receiver, the HH38 Handheld Transmitter, the MBP38 Body Back Transmitter, and the HS13-UBK Headset Microphone.

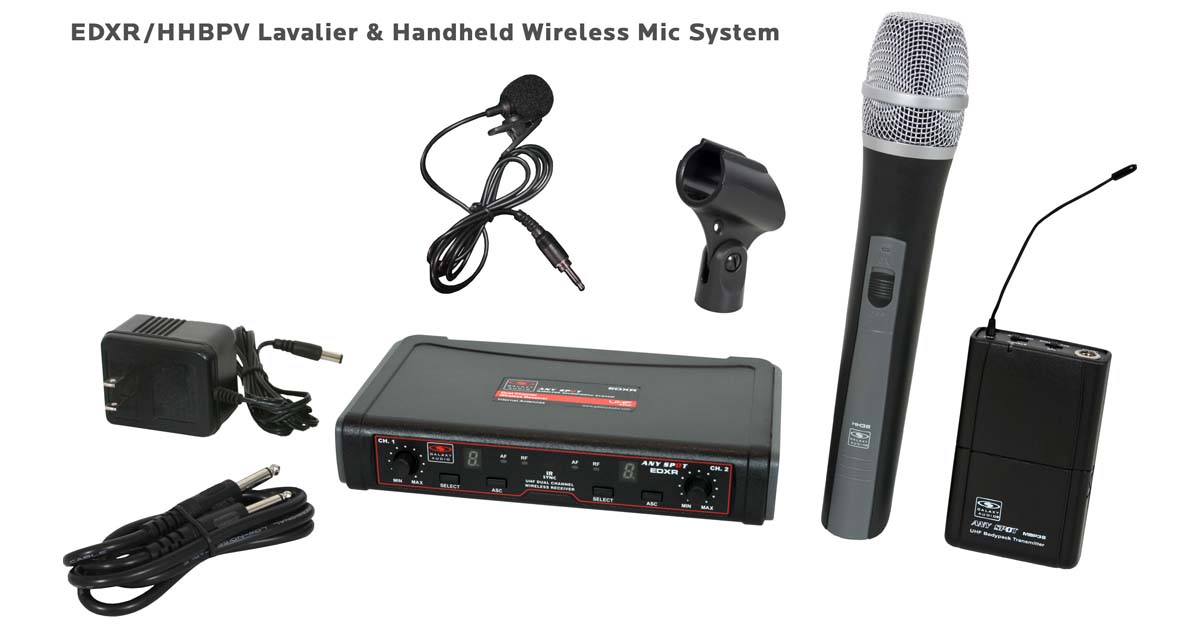

EDXR/HHBPV - Lavalier & Handheld Microphone: Uni-Directional. This system includes the EDXR Receiver, the HH38 Handheld Transmitter, the MBP38 Body Back Transmitter, and the LV13-UBK Lavalier Microphone.
The Wireless Microphone Antenna Distribution System expands wireless microphone systems only, by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.
Note: Only works with wireless microphone receivers. This Wireless Microphone Antenna Distribution System does NOT work with In-Ear systems.
Combines Antennas for up to 4 mic receivers
Four DC outputs eliminate individual power supplies
Directional antenna used to decrease interference to other equipment. Frequency range 500-900MHz
The UHF wide-band (500-900 MHZ) directional LPDA (log periodic dipole array) antenna reduces outside interference while providing increased send/receive signal range. Each antenna paddle is matched to 50 ohms impedance with a low-loss BNC connector; 7dBi gain. For permanent or temporary installation; mounts to 5/8"-27 threads.
It is suggested that the angle between the paddle antenna and the thransmitter should be from 90º to 120º. Normally the effective range can reach about 300'.
Universal Power Adaptor. The AS-UA12-14.5 supplies 12V DC at 1000mA to Our Wireless Microphone & Monitor systems such as the DHT, DHX, DHTRQUAD, DHXR4, PSE, ECM, ECD, EDX, AS-900, Galaxy Audio AS-1100 & AS-1800 using the common 5.5mm barrel plug with center positive. The universal AC power adaptor comes with 4 different AC plug adaptors, and will accept any input voltage from 100 to 240v AC, 50-60Hz, which means it will work in nearly every country on the planet.
