AS-1400 275 Channel Stereo Wireless Personal In-Ear Monitor System with Mixed Mono Mode

       The AS-1400 deepens Galaxy Audio’s acclaimed line of Wireless Personal Monitors, offering high-end features and...

This product must be purchased through our retailer network

Choose a Retailer
AS-1400 275 Channel Stereo Wireless Personal In-Ear Monitor System with Mixed Mono Mode Callout AS-1400 275 Channel Stereo Wireless Personal In-Ear Monitor System with Mixed Mono Mode Callout AS-1400 275 Channel Stereo Wireless Personal In-Ear Monitor System with Mixed Mono Mode Callout

 Twin Pack and Band Pack Options Available!

The AS-1400 deepens Galaxy Audio’s acclaimed line of Wireless Personal Monitors, offering high-end features and performance at an affordable price. The transmitter features stereo XLR/1/4 in. inputs, headphone output with volume control, input level control, and LCD display for channel and input level.

The Receiver features Mixed Mono Mode for your own personal mix, volume, and an LCD display with channel, battery level, and RF level. The AS-1400 is perfect for the working musician, House of Worship, or any application requiring an affordable, reliable WPM system.

If you've never worked with a wireless personal monitor, you owe it to yourself to try. The Galaxy Audio AS-1400 is an affordable yet professionally featured WPM that may just change the way you perform. Simply plug the AS-1400T into your 'monitor out' jacks on the mixing console, create the desired mix, and it's ready to deliver quality sound. The AS-1400 allows for greater stage freedom and confidence in vocal delivery over floor wedges. The AS-1400 is also effective at eliminating stage noise, protecting users' ears from damage, allowing the user to move around the stage or audience and continue to hear while eliminating feedback.

The Galaxy Audio Series of Wireless Personal Monitors is a great alternative for performers who are tired of lugging around heavy and bulky floor monitors and tired of leaving a gig with ringing ears.

The AS-1400 is perfect for anyone looking to upgrade to the next level.

The Galaxy Audio AS-1400 Twin Pack and Band Pack IEM Systems make it easy for any duo or band to Get Personal. The AS-1400-2 Twin Pack IEM system includes two receivers and one transmitter. The AS-1400-4 Band Pack system includes four receivers and one transmitter.

An unlimited number of receivers may be added at any time.

See "Configurations" for earbud upgrade system options.

  • Featuring Mixed Mono Mode
  • 275 Selectable Channels
  • UHF Phase Locked Loop
  • Blacklit LCD (Displays Channel Number and Freq.)
  • Stereo or Mono Transmission
  • Single/Dual Rack Mount Kit Included
  • Multiple Receivers can be used with 1 Transmitter
  • 300' Range
  • EB4 Ear Buds Included

The Mixed Mono feature allows performers to adjust the balance of the Left and Right audio signals sent from the transmitter right on the body pack. With Mixed Mono:

  • The performers can have their vocals in Input 1 and the band mix in Input 2 and adjust the volume of each independently to create their own personal mix, or
  • You can send two different monitor mixes from the board so each performer can decide which mix they want to hear on their belt pack.

AS-1400T Transmitter

  • Transmits in Stereo or Mono
  • Light Up LCD Display
  • Channel Number and Frequency
  • 275 Selectable Channels
  • XLR/1/4" Combo Input
  • RF L/R Indicator
  • RF Output 30 mW
  • Detachable BNC Antenna

AS-1400R Receiver

  • LCD Display with Backlight
  • Earphone Output Volume Control
  • 3 Bar Battery Life Indicator
  • RF Indicator
  • 100 mW Headphone Output
  • EB4 Ear Buds Included
  • Operates on 2 AA Batteries (Alkaline or Rechargeable)
  • 5.12 oz (145 g)

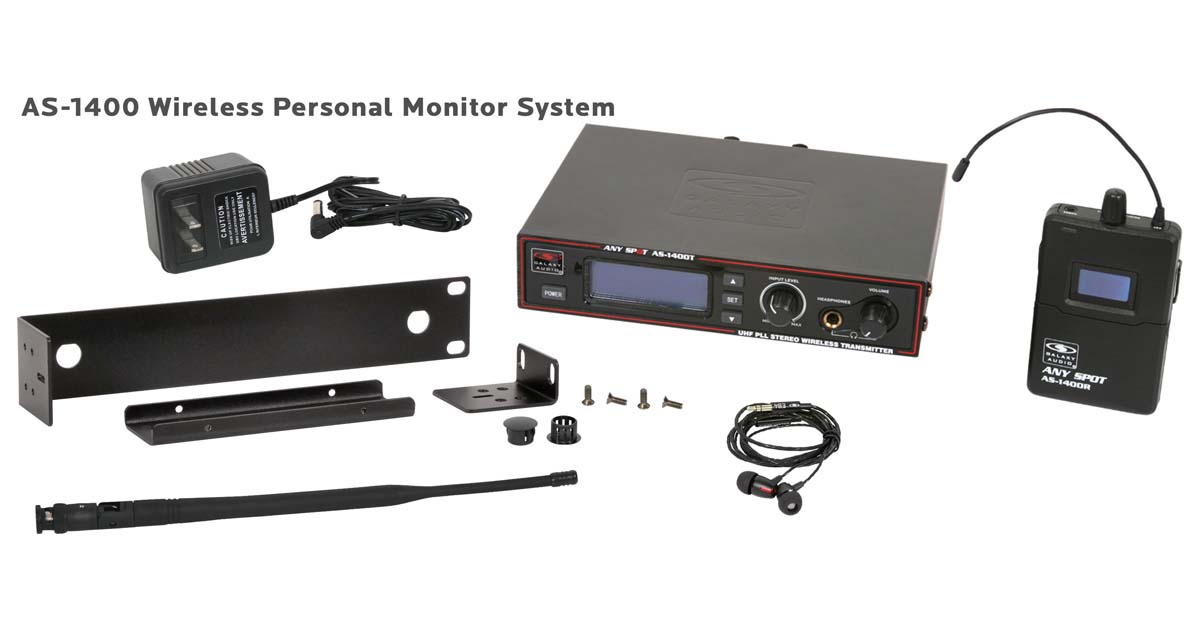

AS-1400 Wireless In-Ear Monitor with Standard EB4 Ear Buds: 275 selectable channels and Mixed Mono, includes (1) AS-1400T Transmitter, (1) AS-1400R Receiver, (1) EB4 earbud set, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

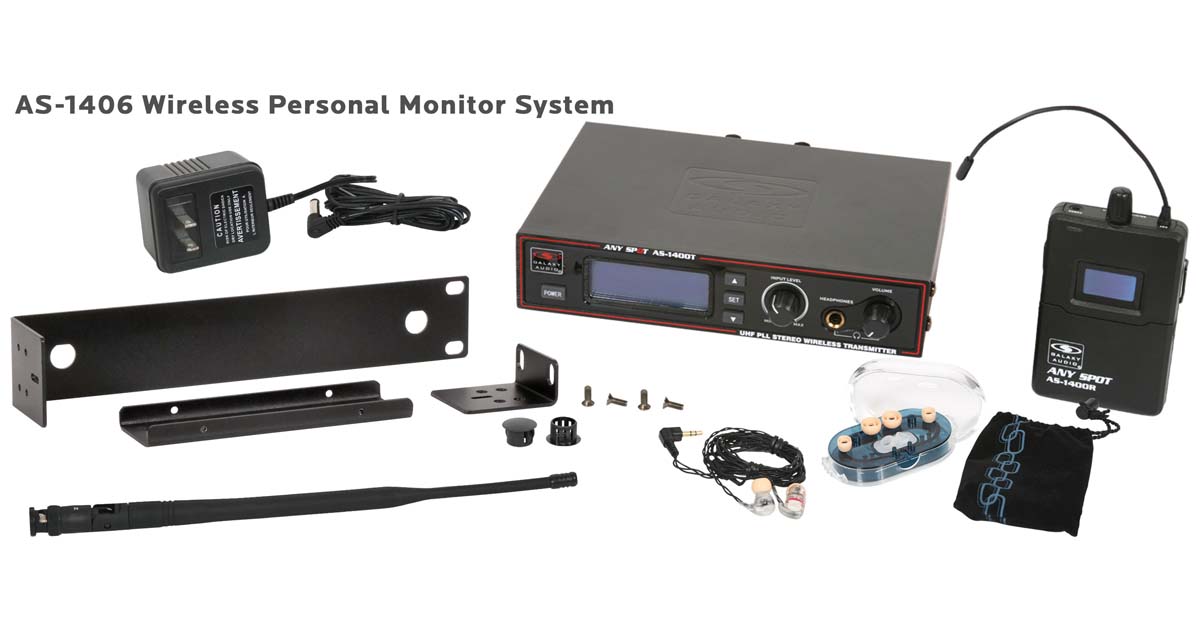

AS-1406 Wireless In-Ear Monitor with EB6 Ear Bud Upgrade includes (1) AS-1400T Transmitter, (1) AS-1400R Receiver, (1) EB6 Wideband Dyna Driver earbud set, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

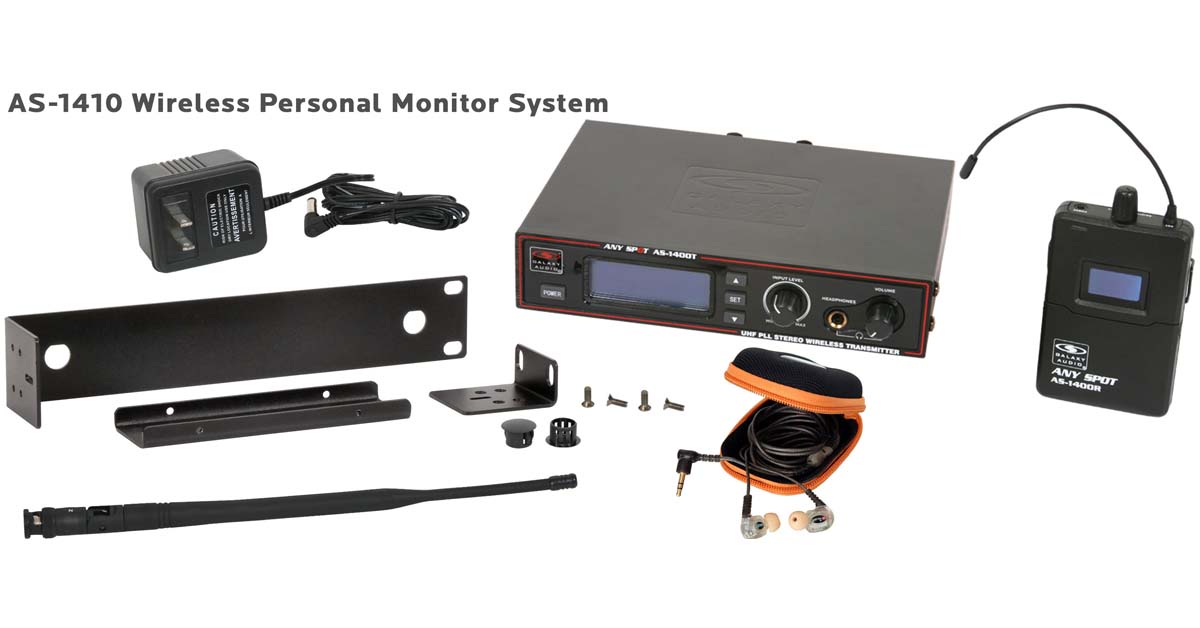

AS-1410 Wireless In-Ear Monitor with EB10 EB10 Professional Dual Driver Upgraded earbuds includes (1) AS-1400T Transmitter, (1) AS-1400R Receiver, (1) EB10 Professional Dual Driver earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

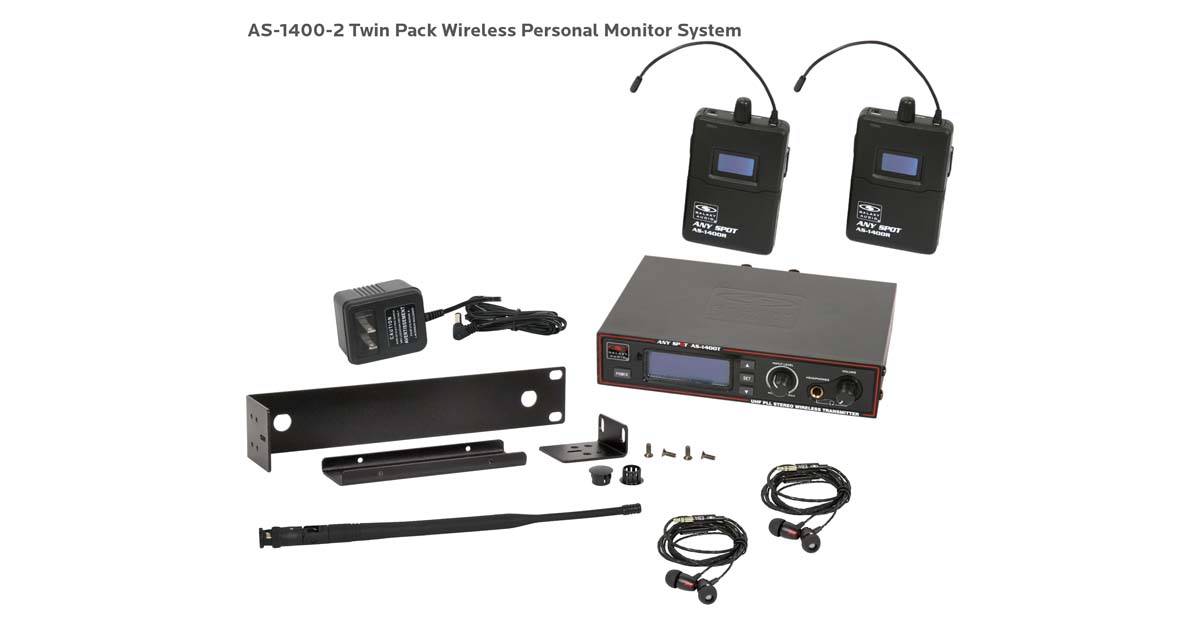

The AS-1400-2 Twin Pack gives you 2 body pack receivers and 2 sets of EB4 earbuds for a performing pair. This 275 selectable channel system includes (1) AS-1400T Transmitter, (2) AS-1400R Receivers, (2) EB4 earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

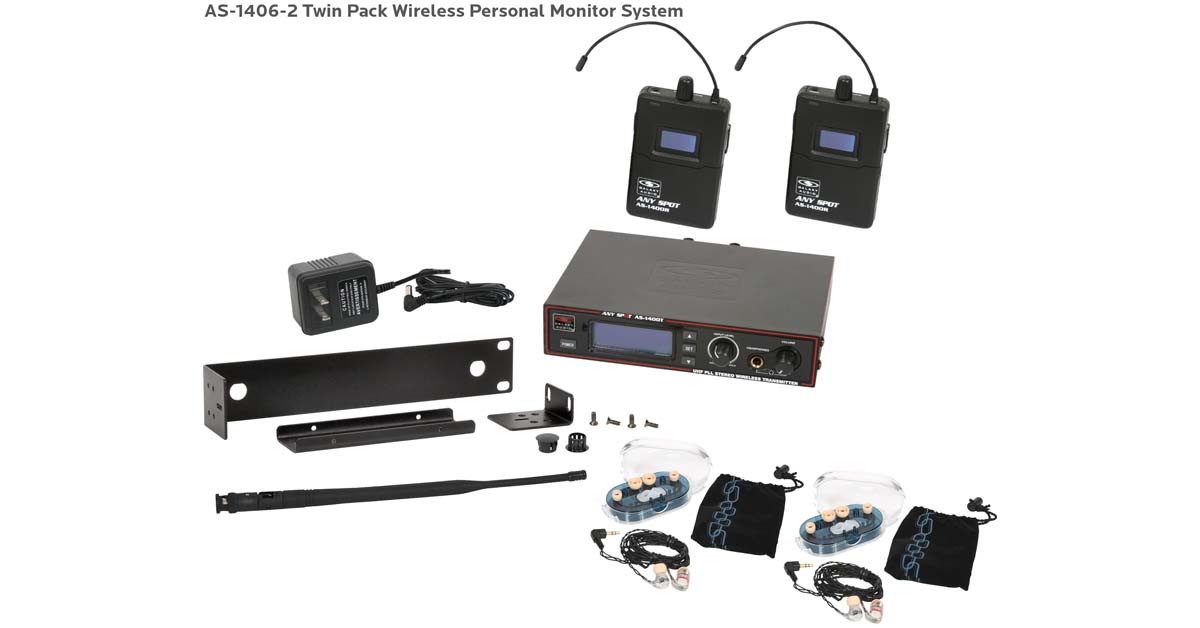

The AS-1406-2 Twin Pack gives you 2 body pack receivers and 2 sets of EB6 Upgraded earbuds for a performing pair. Includes (1) AS-1400T Transmitter, (2) AS-1400R Receivers, (2) EB6 Wideband Dyna Driver earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

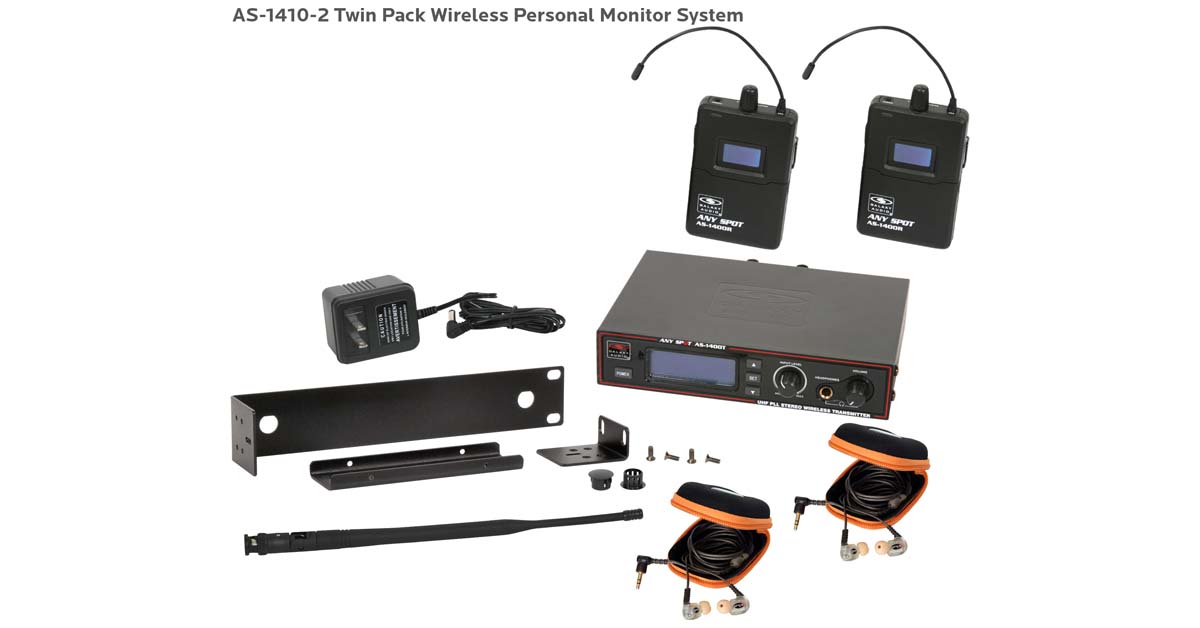

The AS-1410-2 Twin Pack gives you 2 body pack receivers and 2 sets of EB10 Professional Dual Driver Upgraded earbuds for a performing pair. Includes (1) AS-1400T Transmitter, (2) AS-1400R Receivers, (2) EB10 Professional Dual Driver earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

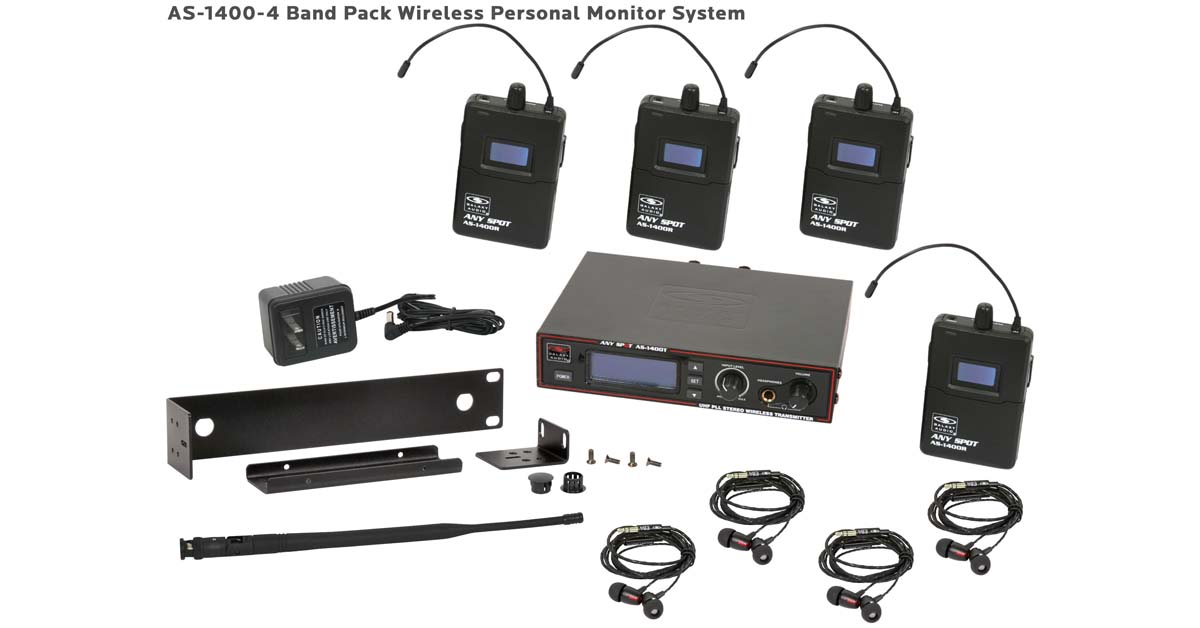

The AS-1400-4 Band Pack gives you 4 body pack receivers and 4 sets of EB4 earbuds for bands needing to outfit four members to a professional in-ear monitoring system. AS-1400-4 Wireless In-Ear Monitor Band Pack System includes (1) AS-1400T Transmitter, (4) AS-1400R Receivers, (4) EB4 earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

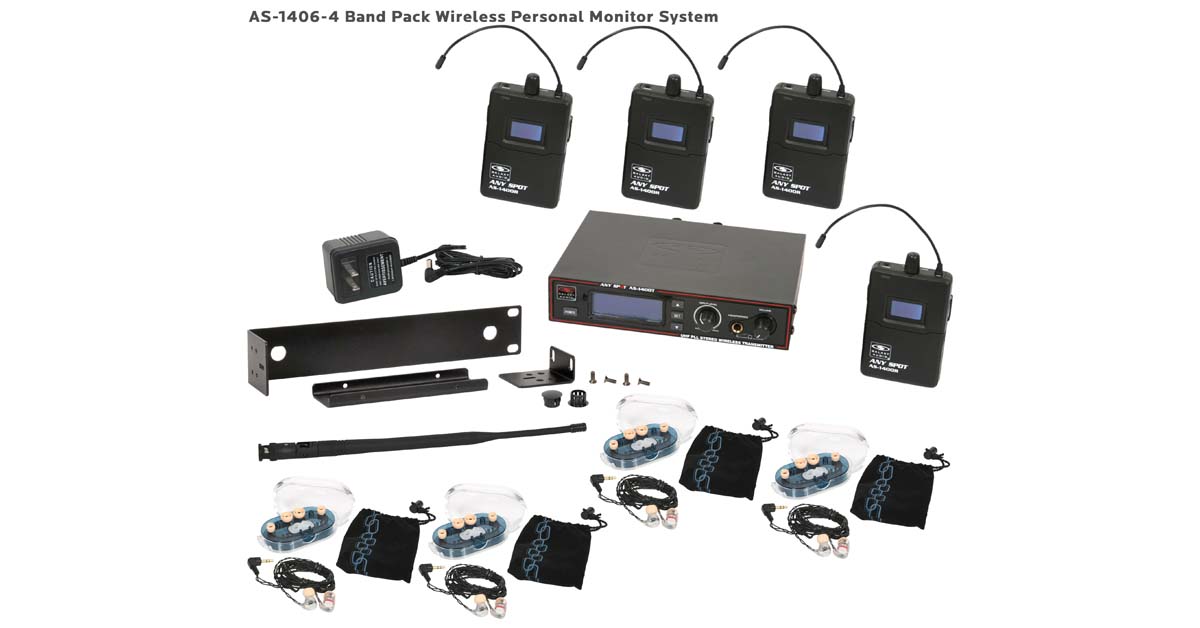

The AS-1406-4 Band Pack gives you 4 body pack receivers and 4 sets of EB6 Wideband Dyna Driver earbud upgrades for bands needing to outfit four members to a professional in-ear monitoring system. This Mixed Mono Mode, 275 selectable channels system, includes (1) AS-1400T Transmitter, (4) AS-1400R Receivers, (4) EB6 Wideband Dyna Driver earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

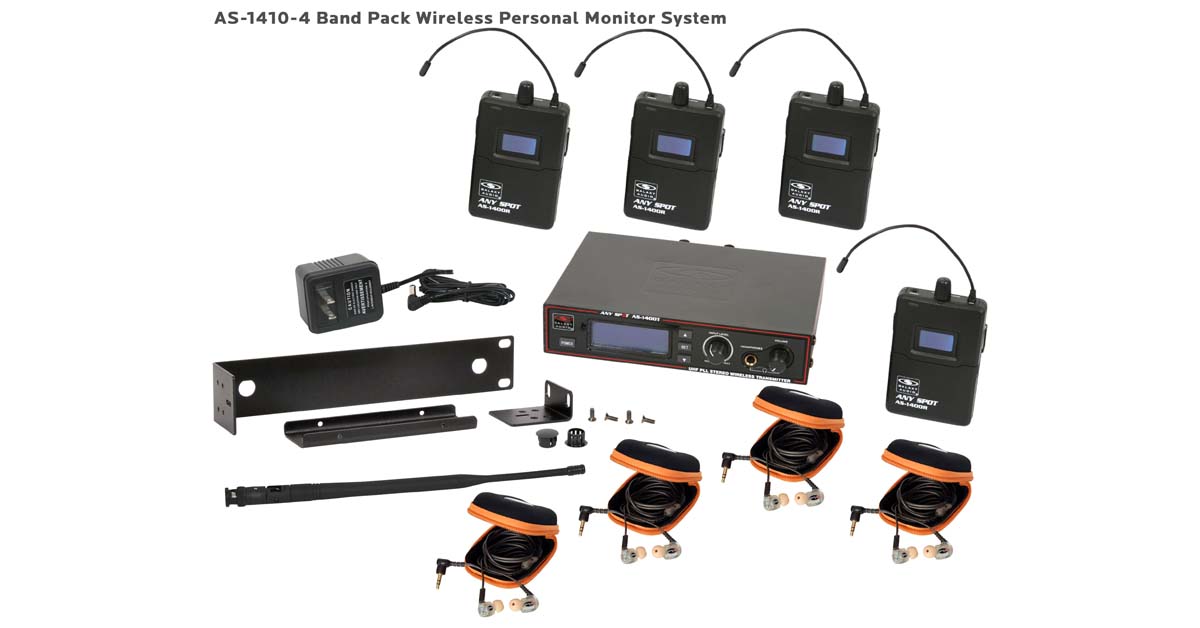

The AS-1410-4 Band Pack gives you 4 body pack receivers and 4 sets of EB10 Professional Dual Driver earbud upgrades for bands needing to outfit four members to a professional in-ear monitoring system that allows monitoring their mix with full detail. AS-1410-4 Wireless In-Ear Monitor Band Pack System with EB10 earbud upgrade includes (1) AS-1400T Transmitter, (4) AS-1400R Receivers, (4) EB10 Professional Dual Driver earbuds, single/dual rack kit, antenna, and power supply.

Additional products in this configuration:

EB10

GALAXY AUDIO EB10 PROFESSIONAL DUAL DRIVER EARBUDS: Upgrading your earbuds can be a great improvement to your wireless monitor system or media player. The Galaxy Audio EB10 is a professional dual driver earbud system. It has two built-in transducers and a passive crossover in each ear bud. They provide Hi-Dynamics, Hi-Definition, and Low-Noise to yield accurate audio reproduction. The EB10 has a standard 3.5mm stereo jack, allowing it to be used with any brand of Wireless Personal Monitor or Digital Media Player.

The Galaxy Audio EB10 incorporates dual performance drivers and built-in crossover. The EB10's lightweight ergonomic design assures excellent sound isolation and maximum comfort during periods of extended wear. The EB10 comes with a Silver Plated cable with a Gold Plated connector.  The EB10 has a MAX Power Input of 150mW and a Sensitivity of 120 dB/mW. The EB10 has a cable over 4 feet long and the ear buds weigh 7g (0.25 oz; excluding cable). The EB10 includes zippered carrying case with a cleaning rod and three pairs of Silicon Sleeves (small, medium and large).

  • Professional Dual Driver Earbuds
  • Allows musicians to monitor their mix with full detail.
  • Design assures excellent sound isolation and maximum comfort during periods of extended wear.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Nylon Soft Case Included

EB6

The EB6 features a single driver delivering full frequency performance. The Galaxy Audio EB6 has a cable over 4 feet long and the earbuds weigh 6g (less than 0.25 oz; excluding cable). The EB6 in-ear wired single driver earphones include a durable plastic carrying case with three pairs of Silicon Sleeves (small, medium and large).

  • Wideband Dyna Driver earbuds reproduce the full frequency range with natural mids, full highs, and rich bass.
  • They allow musicians to monitor their mix with full detail.
  • Three different sized pairs of silicon sleeves are provided for best fit and sound isolation.
  • Ergonomic mechanical structure ensures long time, low fatigue use.

EB4 Stereo Personal In-Ear Monitoring earbuds with single titanium drivers

The Galaxy Audio EB4 are the standard earphones for Wireless Personal Monitors. The EB4 includes three pairs of Silicon sleeves (small, medium, and large) for fit and comfortable use. The EB4 Ear Buds have a standard 3.5mm stereo jack, allowing them to be used with any brand of Wireless Personal Monitor or MP3 Player.

  • Stereo Personal Monitoring Earbuds
  • Single Titanium Drivers
  • High Fidelity with Extended Bass
  • Light and Comfortable
  • Aluminum Alloy Construction
  • Durable Cable

AS-EC1

FIXED EAR CUP-BLACK Ear cup wraps around ear with 1/8" - 3.5mm Jack.

AS-EC2

RUBBER EAR CUP-BLUE Ear cup has rubber to wrap around ear for a more comfortable fit.

BNC Antenna AS-ANTBNC

Replacement BNC Audio Antenna for use with Galaxy Audio Wireless Personal Monitors and Wireless Microphones.

3 Frequencies:

  • Code D 584-607 MHz AS-ANT600B
  • Code N 518-541 MHz AS-ANT525B
  • Code P 470-505 MHz AS-ANT480B

19.69” BNC Cable & Connector Combo

This Includes:
One Wire BNC Connector Cable (Part# CN-BNCPM) and
One 19.69" (50 cm) RG58 Cable (Part# EXTBNC) for front mounting antenna.

Power Supply PS-13.5-.35.5

Microphone power supply for AS-900T, AS-1100T, AS-1400T, VESR, VSCR, ECDR, EDXR, ECMR, PSER, DHTR, & DHXR.

  • 13.5 Volt 300 mA-
  • 5.5 mm PLUG

Universal Power Adaptor AS-UA12-14.5

Universal Power Adaptor. The AS-UA12-14.5 supplies 12V DC at 1000mA to Our Wireless Microphone & Monitor systems such as the DHT, DHX, DHTRQUAD, DHXR4, PSE, ECM, ECD, EDX, AS-900, Galaxy Audio AS-1100 & AS-1800 using the common 5.5mm barrel plug with center positive. The universal AC power adaptor comes with 4 different AC plug adaptors, and will accept any input voltage from 100 to 240v AC, 50-60Hz, which means it will work in nearly every country on the planet.

  • 12V DC 1000mA
  • 5.5mm PLUG
  • Converts Systems To Accept 230 VAC.

MREWD

Single and Dual Monitor Rack Mount Kit, includes 1 long rack ear, 2 short rack ear, 2 coupler plates, and assorted screws. The MREWD allows for racking a single or two wireless in-ear monitors systems or wireless mic systems in a 1U space. Works with PSE, DHX, CTS, AS-900, AS-1100, & AS-1400 systems.

AS-1400 275 Channel Stereo Wireless Personal In-Ear Monitor System with Mixed Mono Mode Specifications

AS-1400 SYSTEM
BandUHF
Frequency RangeCODE M 516 MHz - 558 MHz
Frequencies275 Selectable Frequencies
Transmitter Output Level30 mW
Operating RangeUnder Typical Conditions 300' (92 m)
Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
Audio Frequency Response+/-3dB 40Hz - 16kHz
Total Harmonic Distortion< 0.4% @ 1kHz
Signal to Noise>105dB
Maximum Deviation Range+/-68kHz
Dynamic Range>90dB A-weighted
Operating TemperatureRange 14º F to 122º F (-10º C to 50º C)
Note: battery characteristics may limit this range
Band Width42 MHz


AS-1400 TRANSMITTER
Main Frame SizeEIA STANDARD 1/2 U
Modulation ModeFM Stereo Modulation
RF Output30 mW
Max Audio Input Level+6dBV
Gain Adjustment Range33dB
Audio InputLine Level X 2, XLR/ 1/4" Combo Jack
XLR InputBalanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: Audio -
Audio Output1/4" Headphone Out
Dimensions1.7" x 8.2" x 7.1"
(44 x 209 x 180 mm)(HxWxD)
Weight37.4 oz (1,060 g)
Power Requirements12-18 V DC at 300 mA supplied by external power supply


AS-1400 RECEIVER
Audio Output Level100 mW
Sensitivity6dBμV, S/N>60dB
Stereo Separation45dB (at 1kHz)
Output Connector1/8"(3.5 mm) Stereo Earphone Connector
Dimensions4.33" x 2.56" x 0.87"
(110 x 65 x 22 mm)(HxWxD)
Weight5.12 oz (145 g)(without batteries)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 7 hours (alkaline)

Manuals

AS-1400 Quickstart ( pdf - 2.38 MB )
AS-1400 Manual ( pdf - 2.98 MB )
AS-1400 Cut Sheet ( pdf - 0.4 MB )

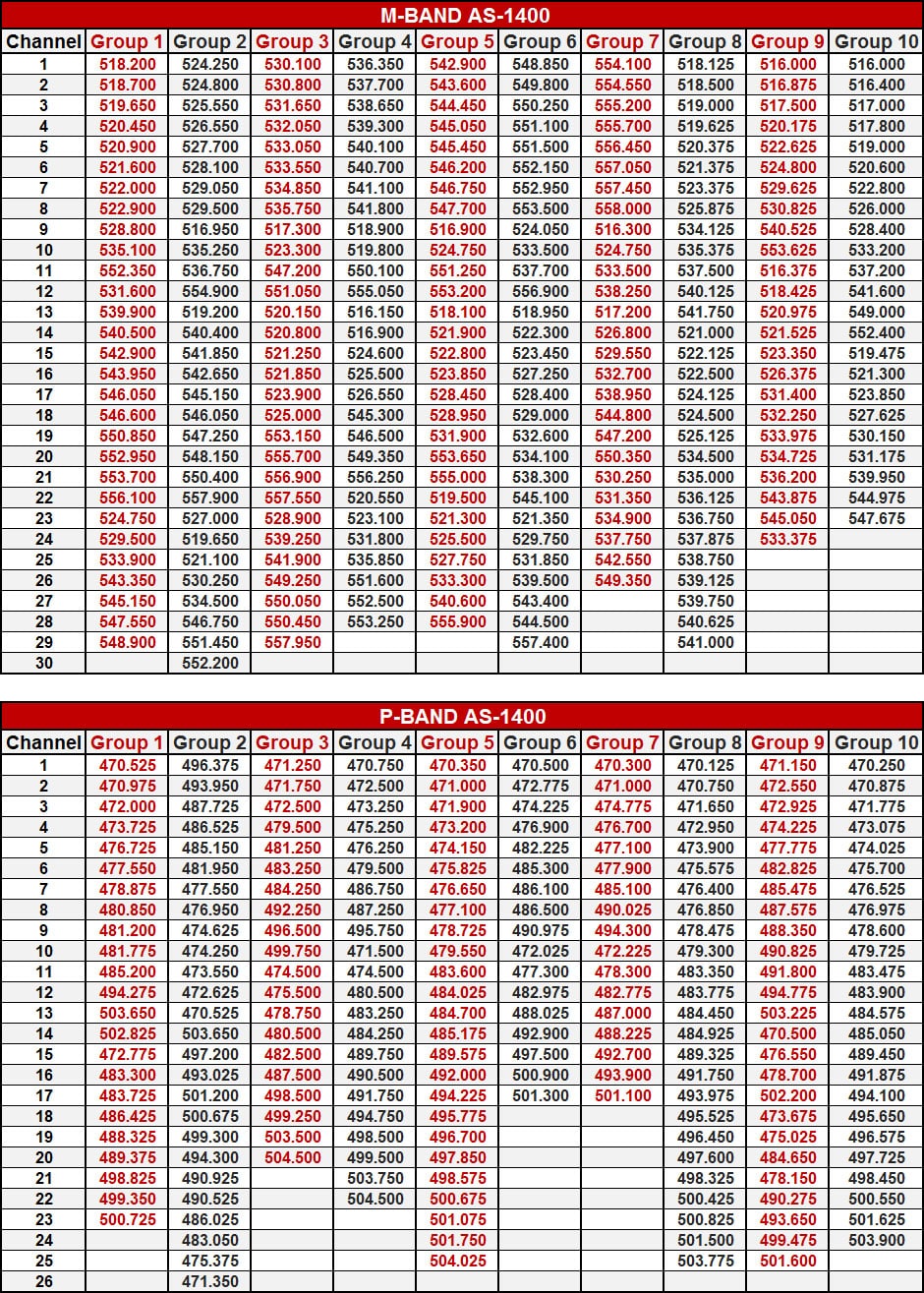

Frequencies ( pdf - 9.95 MB )
