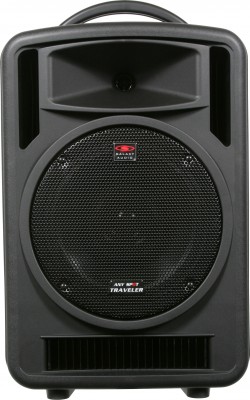

TV10

The Galaxy Audio Traveler (TV10) is an AC/battery operated, wireless portable PA speaker system. The Traveler is designed for people who need a portable, lightweight, “all in one” PA system that allows for a quick and uncomplicated setup. The Galaxy Audio TV10 is a compact wireless portable PA speaker system that features an 10" woofer, 1" horn, 150-watt max amplifier, and can be configured in a variety of ways to meet your specific needs. Features of the standard Traveler include: 4 Inputs (X:R, 1/4", RCA, &1/8" each with its own volume control), 2 Band EQ, and a Master Volume. Audio Outputs include a dual RCA Line Out and a 1/8" Line Out. The durable ABS enclosure features a convenient carry handle and a provision for standard pole mounting. The Galaxy Audio TV10 has a retractable handle and durable wheels for easy mobility.

The Traveler has a unique “plug in” modular design, which allows optional Function Modules to be easily added or removed. Optional Modules include Single and Dual Wireless Mic Receivers (with Handheld, Headset, Pendant & Lapel options), Bluetooth® Receiver, a CD/MP3 player, and an Audio Link Module, which wirelessly transmits the entire audio mix from one Traveler to any number of satellite Travelers. Since all the Modules are internally wired, no external patching is necessary.

The Universal Power Supply/Battery Charger allows the Traveler to be used anywhere in the world. This wireless portable PA speaker system will operate for an unlimited time on AC power and for about 6 hours on just battery power. A full recharge of the batteries takes about 4 hours. The Traveler may be operated while recharging the batteries without affecting the charge time. If a power failure occurs when operating on AC, the Traveler will seamlessly switch over to battery power.

• 100 Watts/150 Watts Peak
• 10" Woofer/1" Horn
• Built-in Battery and Charger
• 4 Wireless Microphones Optional
• 2 Microphone Inputs 1/4" & XLR / 1/4" Combo
• RCA & 1/8" Outputs
• Master Volume Control
• Built-in Bluetooth®
• Optional Media Player
• Four-bar battery indicator
• Voice Priority
• Built in Wheels and Handle
• Battery Operation: 7.5-16 hours
• Speaker Stand Mount

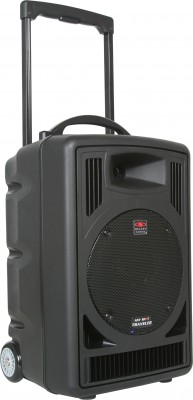

TV8

The Galaxy Audio Traveler (TV8) is an AC/battery operated portable PA system. This compact system features an 8" woofer, 1" horn, 80-watt amplifier, and can be configured in a variety of ways to meet your specific needs. This self-powered portable PA system, has a coverage capacity of up to 600 people.

Features of the standard Traveler include: 4 Inputs (XLR/1/4" combo, 1/4" Mic/Line, RCA Line, and 1/8" Aux, each with their own volume control), Built-in Bluetooth®, 2 Band EQ, and a Master Volume. Audio Outputs include a dual RCA Line Out and a 1/8" Aux Output. The Universal Power Supply/Battery Charger allows the Traveler speaker PA system to be used anywhere in the world. The Galaxy Audio TV8 features a voice priority button, which automatically reduces the volume of the media player, Bluetooth® and line level input when receiving a transmission from a wireless or wired handheld microphone (either plugged into the unit or an installed wireless system). This allows for announcements to be made without being overpowered by a music program playing through the media devices. The voice priority can be turned on or off.

The Traveler speaker PA system will operate for an unlimited time on AC power and for about 7.5-16 hours on just battery power (depending on program). A full recharge of the batteries takes about 6-8 hours. The Traveler may be operated while recharging the batteries without affecting the charge time. If a power failure occurs when operating on AC, the Traveler will seamlessly switch over to battery power.

The Traveler speaker PA system has a unique “plug in” modular design, which allows optional Function Modules to be easily added or removed. Optional Modules include Wireless Mic Receivers (with Handheld, Headset, Pendant & Lapel options), a media player (CD/SD/MP3 or CD/DVD/SD/MP3 options), and an Audio Link Module, which wirelessly transmits the entire audio mix from one Traveler to any number of satellite Travelers. Since all the Modules are internally wired, no external patching is necessary.

Designed smaller and lighter than the TV10, the Galaxy Audio TV8, the durable ABS enclosure still includes a convenient carry handle, retractable handle, wheels for easy transportation, and a provision for standard pole mounting with locking mechanism. The Traveler is designed for people who need a portable, lightweight, “all in one” PA system that allows for a quick and uncomplicated setup.

**Please note that the passive TV8U Cabinet is NOT compatible with this current version of the TV8.**

• 80 Watts/120 Watts Peak
• 8" Woofer/1" Horn
• Built-in Battery and Charger
• 4 Wireless Microphones Optional
• 2 Mic Inputs 1/4" & XLR / 1/4" Combo
• RCA Line in w/ Volume Control
• RCA & 1/8" Outputs
• Master Volume Control
• Built-in Bluetooth®
• Optional Media Player
• Universal Power Supply
• Four-bar Battery Indicator
• Voice Priority
• Built-in Wheels and Handle
• Battery Life: Tested up to 16 hours
• Speaker Stand Mount
• 10.4" x 11.85" x 20.12" (264 x 301 x 511 mm)
• 35 lbs (16 kg) (batteries included)

CTS (UHF)

The CTS Series wireless systems feature 920 selectable UHF frequencies, IR Sync, Auto Scan, Squelch Adjustment, BNC detachable diversity antennas, LCD display and much, much more. CTS series also features 16 frequency groups with 14 channels per group; 2 groups can be user defined. Featuring Galaxy’s HH85 handheld transmitter with LCD display (frequency, battery life, mute, gain, RF signal strength) and magnesium alloy metal chassis for road worthy durability, CTS is a tour grade system offering reliability and performance for the professional musician. Bundles are also available with any of our high quality Lav or Headset Mics. Single/Dual rack mount kit included.

• 300' Range
• Auto Scan
• True Diversity
• 920 Selectable UHF Frequencies
• Single/Dual Rack Mount Included

CTSR Receiver

• Transmitter Status Display
• IR Sync Receiver to Transmitter
• AF/RF Indicators
• XLR / 1/4" Outputs
• Detachable BNC Antennas
• Metal Chassis

HH85 Transmitter

• Cardioid Dynamic Element
• Power/Mute Button
• LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
• IR Sync Transmitter to Receiver
• Selectable Power 5, 10, 20 mW RF
• Selectable Gain -3, 0, 3, 6, 9
• Operates on 2 AA Batteries (up to 12 hours Alkaline)
• Dimensions: 9.68" x 2.08" (246 x 53 mm) (LxDia)
• Weight: 8.8 oz (250 g)

MBP85 Transmitter

• Power/Mute Button
• LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
• IR Sync  Transmitter to Receiver
• Selectable Power 5, 10, 20 mW
• Selectable Gain -3, 0, 3, 6, 9
• Operates on 2 AA Batteries (up to 12 hours Alkaline)
• Dimensions: 3.85" x 2.51" x 0.90" (98 x 64 x 23 mm) (HxWxD)
• Weight: 3.17 oz (90 g)

DHX (UHF)

The Galaxy Audio DHX (UHF) professional wireless microphone transmitter and receiver packs the tools for the pro.The DHX features Auto Scan that will search for an available frequency to use, as well as IR Sync for easy connectivity from receiver to transmitter. The large LCD display shows channel number, frequency, lock mode, and volume output. The DHX professional wireless system receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The receiver has also been upgraded to include Tone-key squelch for improved rejection of outside interference. The DHX is compatible with any 77 or 65 series handheld or body pack transmitters. Bundles are also available with any of our high quality Lav or Headset mics. Single/dual rack mount kit included.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Single/Dual Rack Kit Included

DHXR Receiver

• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas
• Metal Chassis

HH65 Transmitter

• Cardioid Dynamic Element
• LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
• IR Sync Transmitter to Receiver
• 10 mW
• Gain Adjustment
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 9.5" x 2.1" (242 x 54 mm) (LxDia)
• Weight: 10.6 oz (300 g)

HH65SC Transmitter

• Super Cardioid with Condensor
• LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
• IR Sync Transmitter to Receiver
• 10 mW
• Gain Adjustment
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 9.6" x 2" (243 x 50 mm) (LxDia)
• Weight: 10.6 oz (300 g)

MBP77 Transmitter

• LCD Display
• 3 Bar Battery Life Indicator
• Channel Selector
• On / Off / Mute Button
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• 10 mW
• Manually Set Frequency
• Works with WMC-CGR Charger Station
• Operated on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 3.5" x 2.6" x 1" (89 x 65 x 24 mm) (HxWxD)
• Weight: 3 oz (85 g)

DHXR4 (UHF)

The Galaxy Audio DHXR4 offers the same great features as the DHTRQUAD Wireless Microphone System, with 4 receivers in a single rack space chassis. The DHXR4 QUAD Wireless Microphone system offers 4 independent receivers, each with Auto Scan, IR Sync, and 120 selectable channels. The receivers have also been improved with Tone-key squelch for improved rejection of outside interference. The DHXR4 has a built in antenna combiner and power distributor. The Galaxy Audio DHXR4 wireless mic system receiver has 4 independent XLR outputs (one for each channel) as well as mixed output, allowing the user to submix the microphones on the DHXR4 and come out of one XLR or 1/4" output. The Galaxy Audio DHXR4 wireless mic and receivers can be used with most 65 or 77 Series Handheld or Body Pack transmitter.

• 300' Range
• Auto Scan
• 120 Selectable UHF Frequencies
• Diversity Antennas
• Rack Mount Kit Included

DHXR4 Four Receiver Rack Mount System

• LCD Display
• IR Sync Receiver to Transmitter
• Frequency with Channel and Group Selector
• AF/RF Indicators
• Tone-key Squelch
• Squelch Adjustment
• XLR/1/4" Output
• Detachable BNC Antennas

• Metal Chassis

HH65 Transmitter

• Cardioid Dynamic Element
• LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
• IR Sync Transmitter to Receiver
• 10 mW
• Gain Adjustment
• Works with WMC-CGR Charger Station
• Operates on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 9.5" x 2.1" (242 x 54 mm) (LxDia)
• Weight: 10.6 oz (300 g)

HH65SC Transmitter

• Super Cardioid with Condensor
• LCD Display (4 Bar Battery Life Indicator, Group, and Channel Indicator)
• IR Sync Transmitter to Receiver
• 10 mW
• Gain Adjustment
• Works with WMC-CGR Charger Station
• Operates on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 9.6" x 2" (243 x 50 mm) (LxDia)
• Weight: 10.6 oz (300 g)

MBP77 Transmitter

• LCD Display
• 3 Bar Battery Life Indicator
• Channel Selector
• On / Off / Mute Button
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• 10 mW
• Manually Set Frequency
• Works with WMC-CGR Charger Station
• Operates on 2 AA Batteries (up to 6 hours Alkaline)
• Dimensions: 3.5" x 2.6" x 1" (89 x 65 x 24 mm) (HxWxD)
• Weight: 3 oz (85 g)

PSE (UHF)

The PSE is a UHF diversity receiver with 16 selectable channels. The receiver features a volume control, channel display, Diversity Antennas and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with a handheld, body pack with headset, lav, or instrument cable.

The PSER can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2 AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.


• 300' Range
• 16 Selectable UHF Frequencies
• Diversity Antennas
• Single/Dual Rack Mount Included

PSER Receiver

• Output Volume Control
• IR Sync Receiver to Transmitter
• AF Level Indicator
• Active Antenna Indicator
• Squelch Adjustment
• XLR / 1/4" Outputs
• Detachable BNC Antennas
• Metal Chassis

HH52 Transmitter

• Dynamic Microphone Element
• On/Off Switch
• IR Sync Transmitter to Receiver
• High/Low RF Switch
• 10 mW / 5 mW
• Metal Chassis
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
• Weight: 9.5 oz. (270 g)

MBP52 Transmitter

• Low Battery Indicator
• 3 Position Switch
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
• Weight: 2.8 oz (80 g)

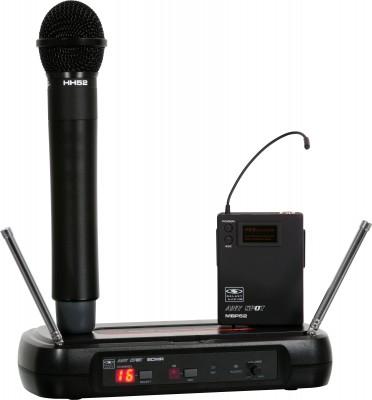

ECM (UHF)

The ECM Wireless Receiver is an economical solution to a great wireless microphone system. The ECM has 16 selectable channels, IR Sync, Diversity Antennas mounted to the front of the rugged plastic casing. The ECM is available with a handheld, body pack with headset, lav, or instrument cable.


• 200' Range
• 16 Selectable UHF Frequencies
• Diversity Antennas

ECMR Receiver

• Output Volume Control
• IR Sync Receiver to Transmitter
• RF/AF Presence Indicators
• Squelch Adjustment
• XLR / 1/4" Outputs
• Rugged Plastic Casing

HH52 Transmitter

• Dynamic Microphone Element
• On/Off Switch
• IR Sync Transmitter to Receiver
• High/Low RF Switch
• 10 mW / 5 mW
• Metal Chassis
• Operates on 2 AA Batteries (up to 8 hours Alkaline
• Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
• Weight: 9.5 oz. (270 g)

MBP52 Transmitter

• Low Battery Indicator
• 3 Position Switch
• IR Sync Transmitter to Receiver
• Mic/0/-10dB
• Operates on 2 AA Batteries (up to 8 hours Alkaline)
• Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24 mm) (HxWxD)
• Weight: 2.8 oz (80 g)
