PSE (UHF)

The PSE is a UHF diversity receiver with 16 selectable channels. The receiver features a volume control, channel display, Diversity Antennas and...

View More Details

Buy Now

Find a Dealer

from

Click Here for 600MHz Wireless Buyback Rebate Information!

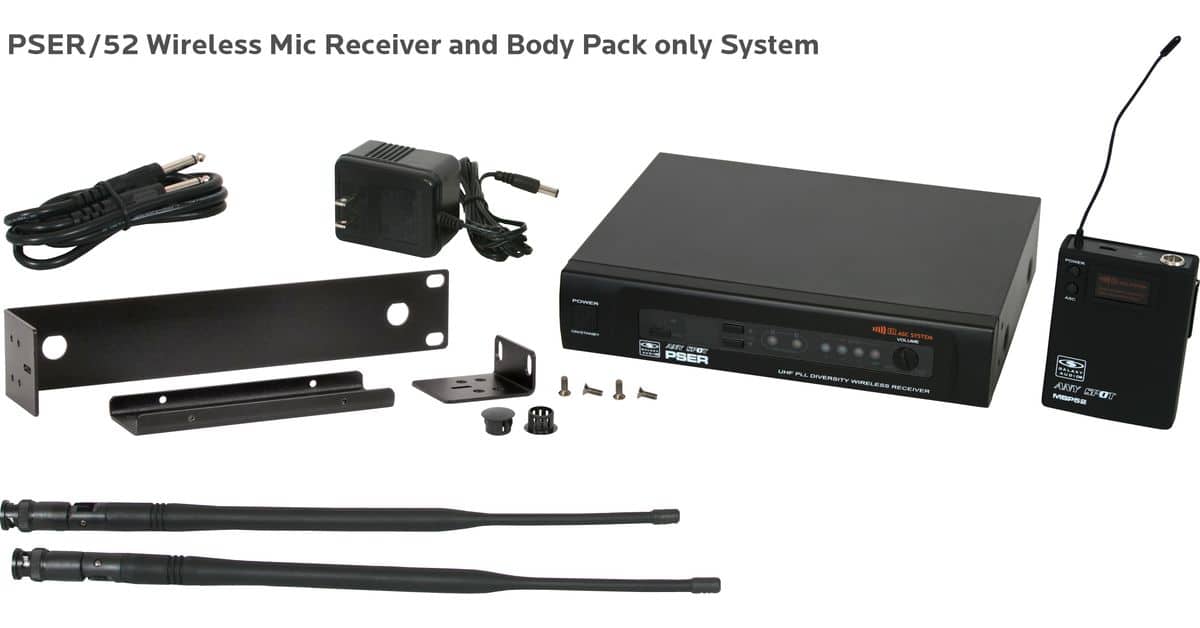

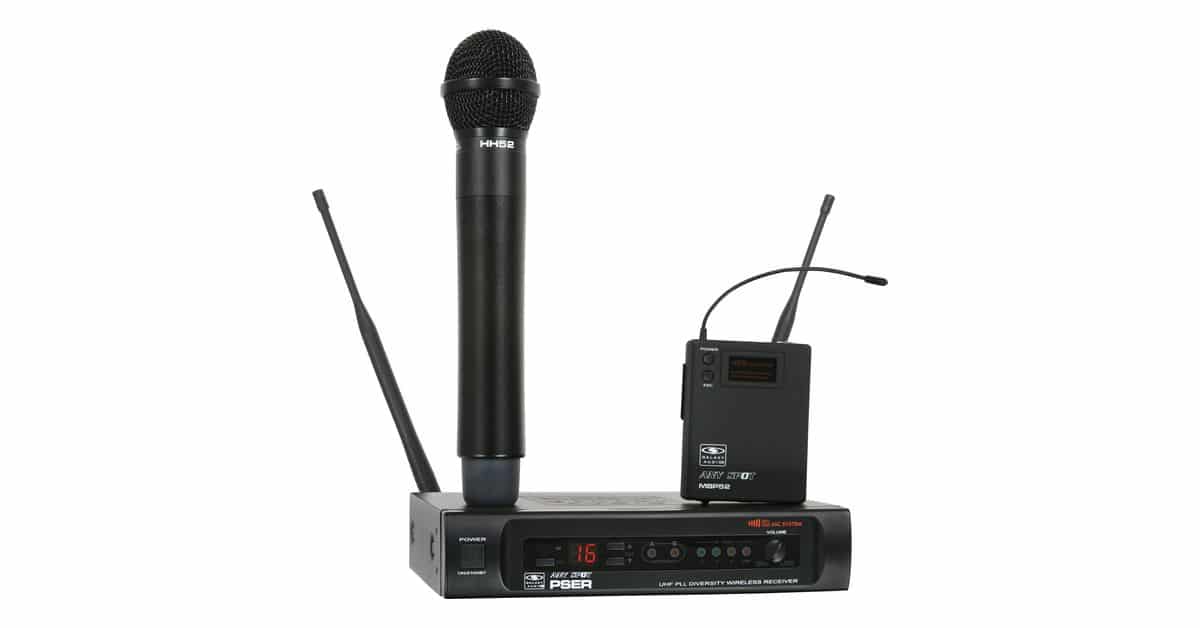

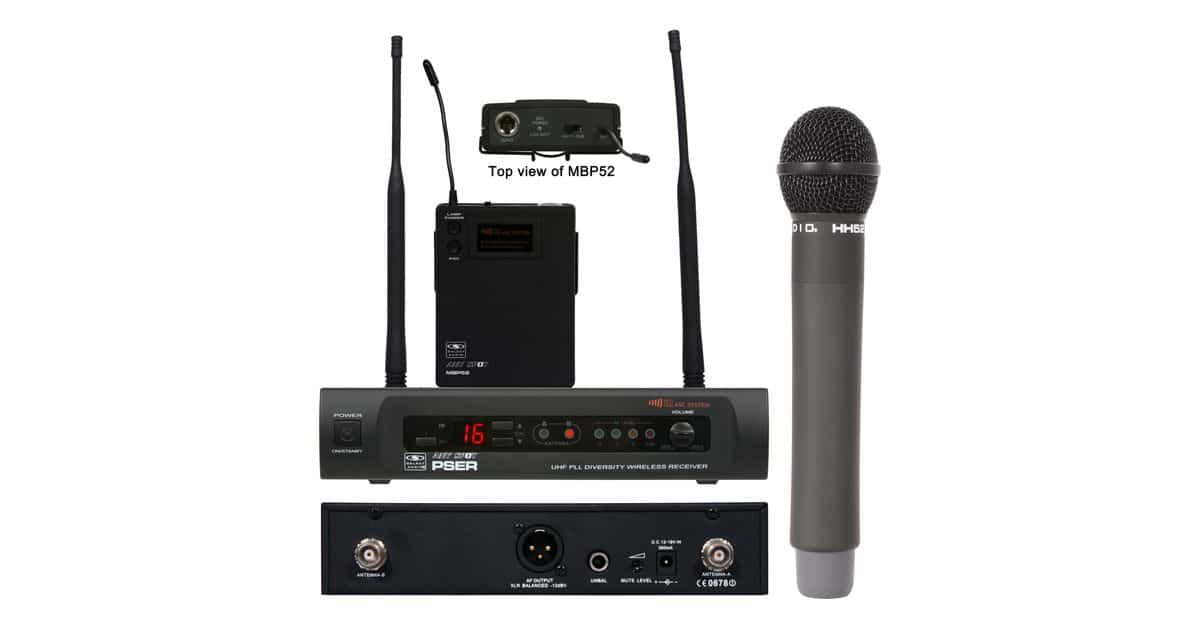

The PSE is a UHF diversity receiver with 16 selectable channels. The receiver features a volume control, channel display, Diversity Antennas and IR Sync. The PSE has an XLR 1/4" output and squelch adjustment. The PSE is available with a handheld, body pack with headset or lav, or instrument cable.

The PSER can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.


  • 300' Range
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount Included
  • 16 Selectable Channels

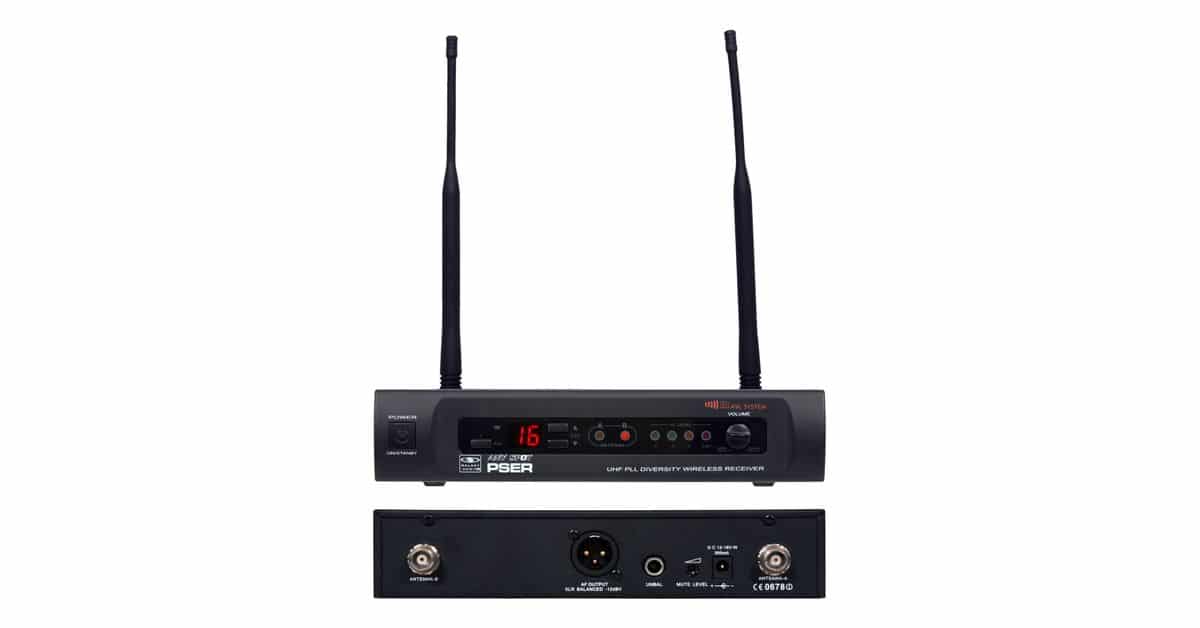

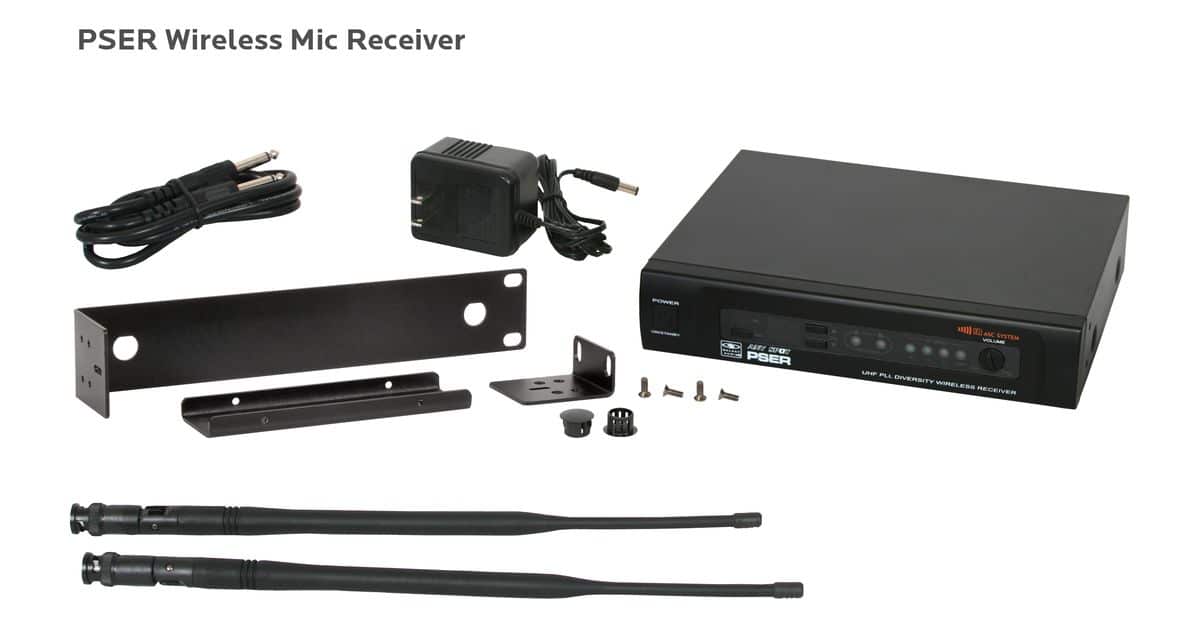

PSER Receiver

  • Output Volume Control
  • AF Level Indicator
  • IR Sync
  • Squelch Adjustment
  • XLR/1/4" Outputs

HH52 Transmitter

  • Dynamic Microphone Element
  • On/Off Switch
  • Gain (Sensitivity) Control with High/Low RF Power Switch
  • IR Sync
  • 10 mW

MBP52 Transmitter

  • IR Sync
  • Mic/0/-10dB
  • 3 Position Switch
  • Low Battery Indicator

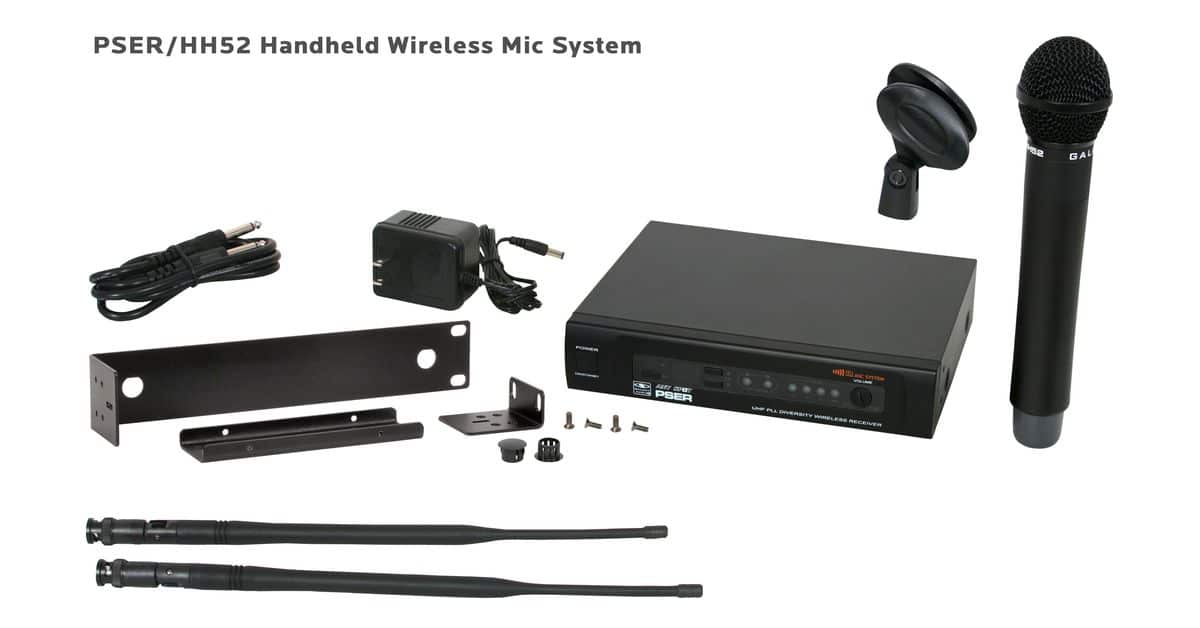

PSER/HH52 - This system includes the PSER Receiver and the HH52 Hand Held Transmitter.
PSER/HH52 - This system includes the PSER Receiver and the HH52 Hand Held Transmitter.

Additional products in this configuration:

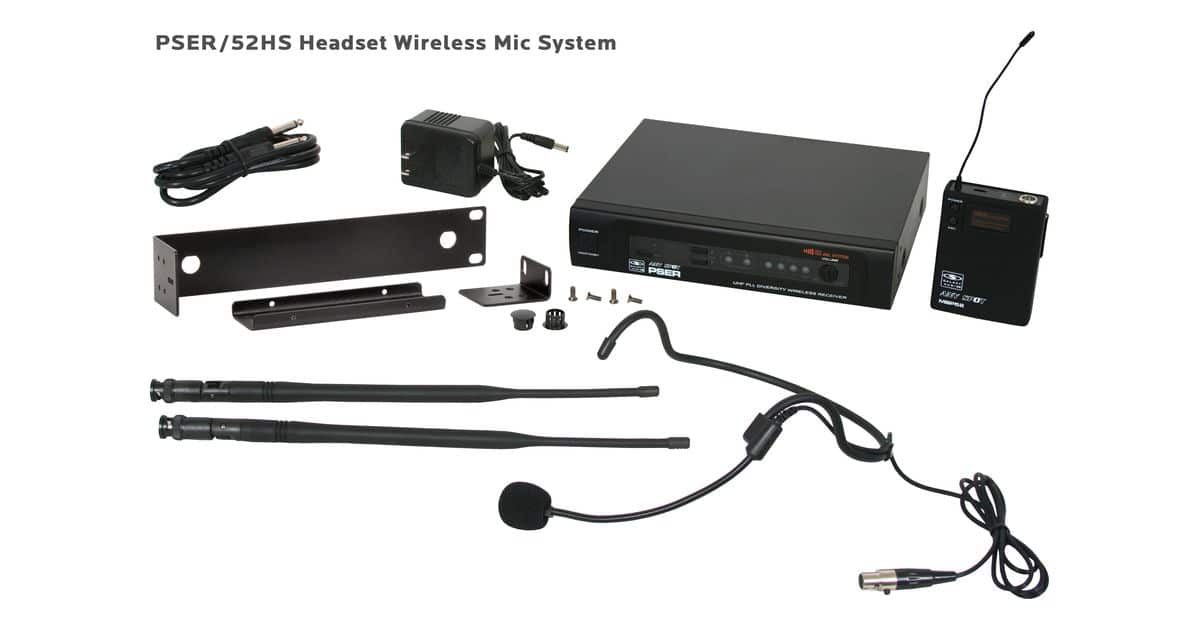

PSER/52HS - Headset Mic: Uni-directional, Frequency Response 50Hz-18kHz. This system includes the PSER Receiver, the MBP52 Body Pack Transmitter, and the HS-U3BK Headset Microphone.
PSER/52HS - Headset Mic: Uni-directional, Frequency Response 50Hz-18kHz. This system includes the PSER Receiver, the MBP52 Body Pack Transmitter, and the HS-U3BK Headset Microphone.

Additional products in this configuration:

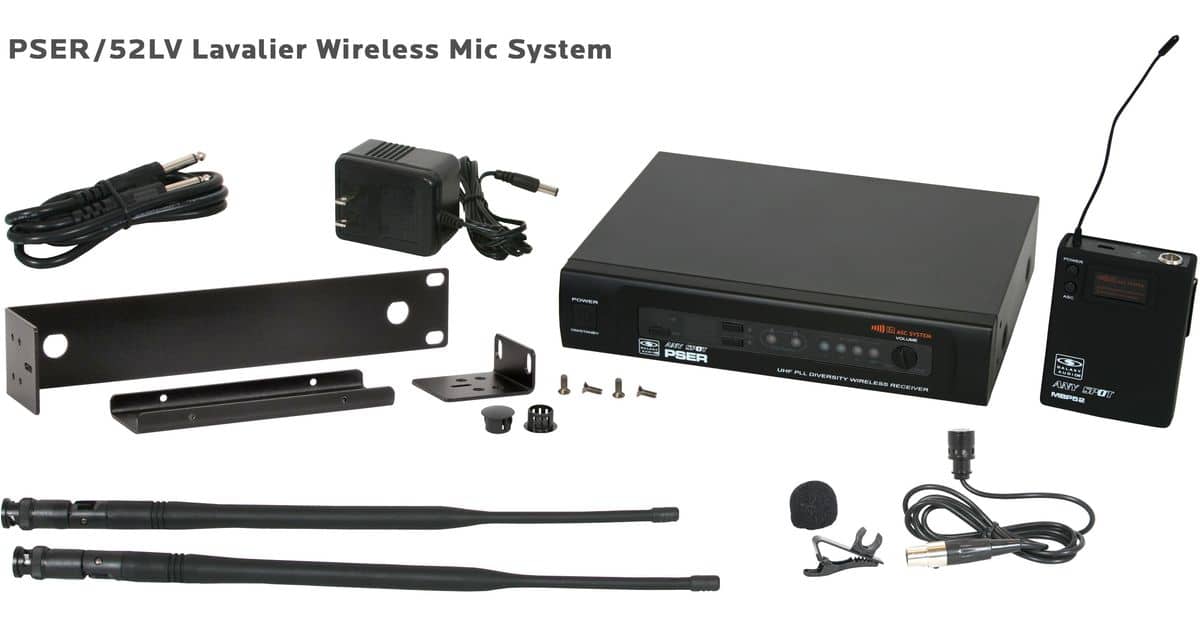

PSER/52LV - Lavalier Mic: Uni-element, Frequency Response 50Hz-19kHz. This system includes the PSER Receiver, the MBP52 Body Pack Transmitter, and the LV-U3BK Lavalier Microphone.
PSER/52LV - Lavalier Mic: Uni-element, Frequency Response 50Hz-19kHz. This system includes the PSER Receiver, the MBP52 Body Pack Transmitter, and the LV-U3BK Lavalier Microphone.

Additional products in this configuration:

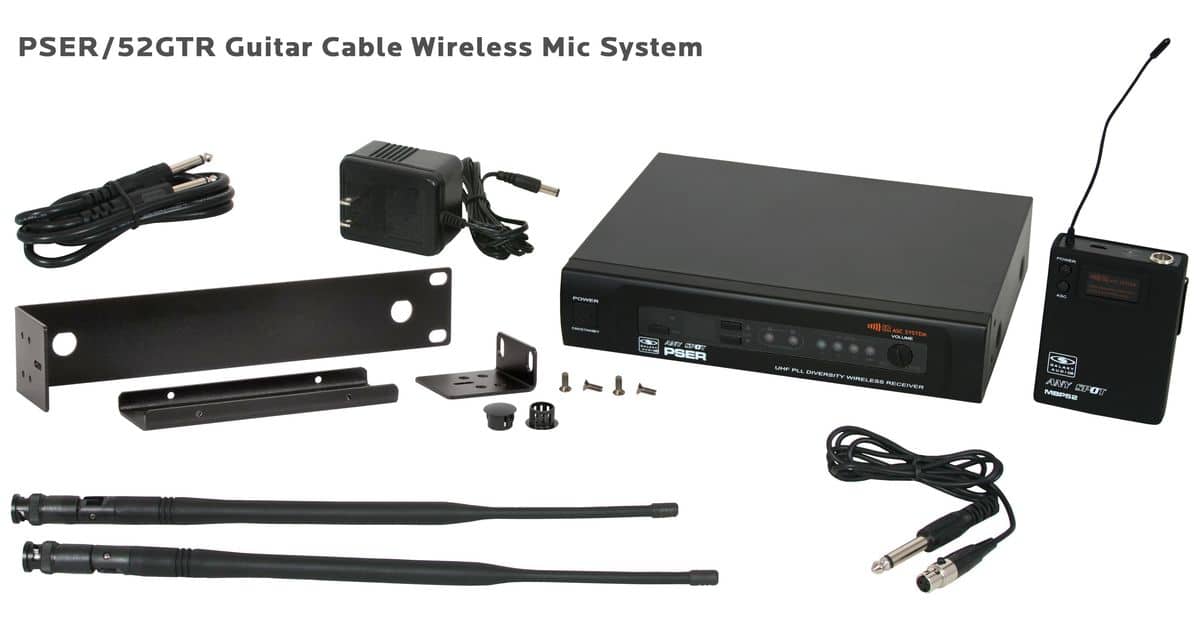

PSER/52GTR - Guitar Cable: Guitar/Instrument Cable, 1/4
PSER/52GTR - Guitar Cable: Guitar/Instrument Cable, 1/4" to mini XLR connector, TA3F connector, use with Guitar or Bass Guitar. This system includes the PSER Receiver, the MBP52 Body Pack Transmitter, and the AS-GTR Guitar Cable.

Additional products in this configuration:

HH52 Dynamic Handheld

Dynamic Handheld Microphone Transmitter for the PSE/ECM Wireless Microphone System

●  Dynamic Microphone Element
●  On/Off Switch
●  Gain (Sensitivity) Control with High/Low RF Power Switch
●  IR Sync
●  10 mW
●  Dimensions: 10.8" x 1.9" (275 x 47 mm) (L x Dia.)
●  Weight: 6.9 oz. (195 g)




MBP52 Body Pack

Body Pack Transmitter for the PSE/ECM Wireless Microphone Systems

●  IR Sync
●  Mic/0/-10dB
●  3 Position Switch
●  Low Battery Indicator
●  Dimensions: 3.3" x 2.6" x 1" (85 x 65 x 24mm) (HxWxD)
●  Weight: 3.0 oz (85 g)

LV-U3BK

This uni-directional lavalier mic comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Lavalier Systems. The LV-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni-Directional
  • Lapel / Lavalier

HS-U3BK Uni Headset

This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni directional headset microphone
  • Hooks over both ears

MREWD

Single and Dual Rack Mount Kit, includes 1 long rack ear, 2 short rack ear, 2 coupler plates, and assorted screws. The MREWD allows for racking a single or two wireless in-ear monitors systems or wireless mic systems in a 1U space. Works with PSE, DHX, CTS, AS-900, AS-1100, & AS-1400 systems.

Antenna Distributor ANT-DISTDC

Antenna Distribution System expands wireless microphone systems by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.

  • Combines Antennas for up to 4 receivers
  • Four DC outputs eliminate individual power supplies
  • 500MHz-900MHz Range
  • Built in Antenna Booster
  • Increase receiver signal rans up to 275 ft more
  • 3dB Gain Compensaton
  • 19" Rack Space

ANT-PDL

Directional antenna used to decrease interference to other equipment.  Frequency range 500-900MHz

The UHF wide-band (500-900 MHZ) directional LPDA (log periodic dipole array) antenna reduces outside interference while providing increased send/receive signal range. Each antenna paddle is matched to 50 ohms impedance with a low-loss BNC connector; 7dBi gain. For permanent or temporary installation; mounts to 5/8"-27 threads.

It is suggested that the angle between the paddle antenna and the thransmitter should be from 90º to 120º. Normally the effective range can reach about 300'.

  • 500-900 MHz
  • LPDA antenna
  • 7dBi gain
  • Can mount to mic stand
  • Improves Range

BNC Connector & Cable AS-EXT50/BNC

This Includes:
One BNC Connector (Part# CN-BNCPM) and
One 19.69" (50 cm) Cable (Part# EXTBNC) for front mounting antenna.

MICCLIPSI

Standard Mic Clip for Handheld Microphones

PSE (UHF) Specifications

PSE SYSTEM SPECS
Available Frequencies16
Frequency RangesCODE D 584~607MHz
CODE L 655~679MHz
CODE N 518~542MHz
Transmitter Output Level5 mW, 10 mW, 20 mW
BandUHF
Operating RangeUnder Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response(+/-3dB) 60Hz - 16kHz
Total Harmonic Distortion(+/-30kHz deviation 1kHz tone): <1%
Dynamic Range>90dB A-weighted
Operating Temperature Range14° F to 122°F (-10° C to 50° C), battery characteristics may limit this range

PSER RECEIVER
Audio Output Level (+/-30 kHz deviation, 1 kHz tone)XLR Connector (into 600 Ohms load) -12dBV
1/4" Connector (into 3 k Ohms load) -18dBV
Output Connections1 Male XLR Balanced
1/4" Balanced
Output ImpedanceXLR connector 200 Ohms
1/4" connector 1k Ohms
XLR OutputImpedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Sensitivity-93dBm for 30dB
Image Rejection>90dB
CasingMetal Chassis EIA STANDARD 1 U
Dimensions1.7" x 8.3" x 6.3"
(44 x 212 x 160 mm)
Weight31 oz (880 g)
Power Requirements12-18 V DC at 1000 mA, supplied by external power supply

HH52 HANDHELD TRANSMITTER
Max Audio Input Level0dBV
Gain AdjustTrim Pot
RF Output10 mW, 20 mW
Frequency Response70Hz - 15kHz
Dimensions9.8" x 2.1"
(250 x 53 mm) (HxWxD)
Weight9.5 oz (270 g) (without batteries)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 8 hours (alkaline)

MBP52 BODY PACK TRANSMITTER
Max Audio Input Level0dBV to +10dBV
Gain AdjustMic/0dB/-10dB
RF Output10 mW
Input Impedance5k Ohms
Dimensions3.3" x 2.6" x 1" (85 x 65 x 24mm) (HxWxD)
Weight3.0 oz (85 g)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 8 hours (alkaline)

Manuals

Manual ( pdf - 0.62 MB )
Cut Sheet ( pdf - 0.52 MB )

Product Images

This product has not been rated yet.

Reviews

  • This item has not been rated yet.

Suggested Products

Federal Communitcations Commission USA

FCC Consumer Alert for Wireless Microphones (U.S.)

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change.

For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at fcc.gov/cgb/wirelessmicrophones
