Nano Spot PA NSPA

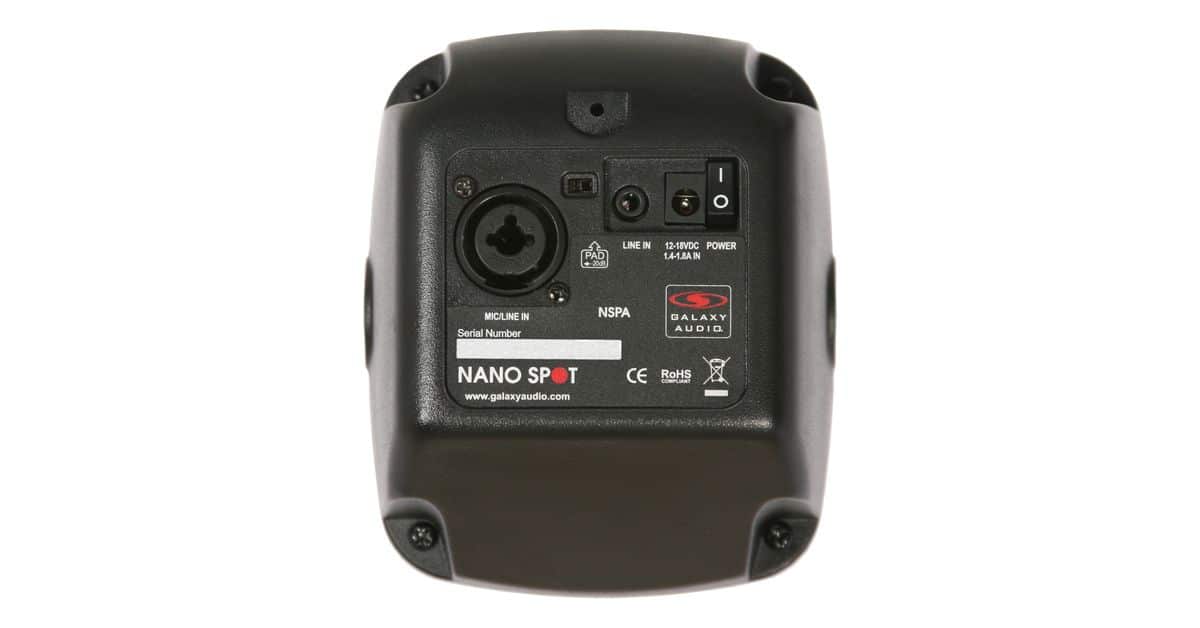

The Nano Spot is the smallest member of the Hot Spot family. Featuring a 3" driver, it has three inputs on the rear panel: XLR, 1/4", and 1/8"...

View More Details

Buy Now

Find a Dealer

from

The Nano Spot is the smallest member of the Hot Spot family. Featuring a 3" driver, it has three inputs on the rear panel: XLR, 1/4", and 1/8" stereo summing. With 24V Phantom power, a 20dB pad, and built-in compressor, you can go directly into the Nano Spot from your source or microphone. The NSPA can be used in call centers, computer monitoring, on the bar or patio* in a restaurant, and many other applications.

  • 25 Watts
  • 3" Ceramic Driver
  • Freq. Response 150Hz - 17kHz
  • Sensitivity: 85dB, 1 W @ 1 m
  • Input Connections: One XLR Balanced, One 1/4" Unbalanced, One 1/8" Stereo Summing
  • 20dB Pad
  • Two Band EQ With Center-Detent Controls
  • Built-in Compressor
  • 24Vdc Phantom Power
  • 18Vdc Power Supply
  • Stand/Wall Mount Included

MSA-1

Spun aluminum stand adaptor

Will mount a unit to any microphone stand. Works with all HOT SPOT MONITORS.

YBNS

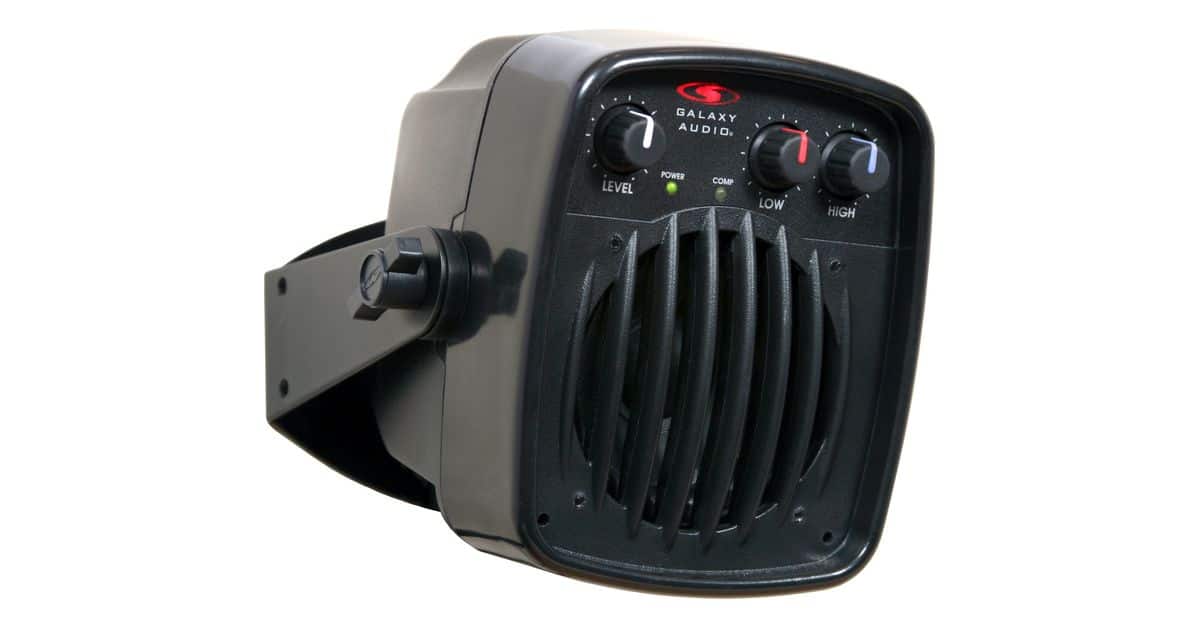

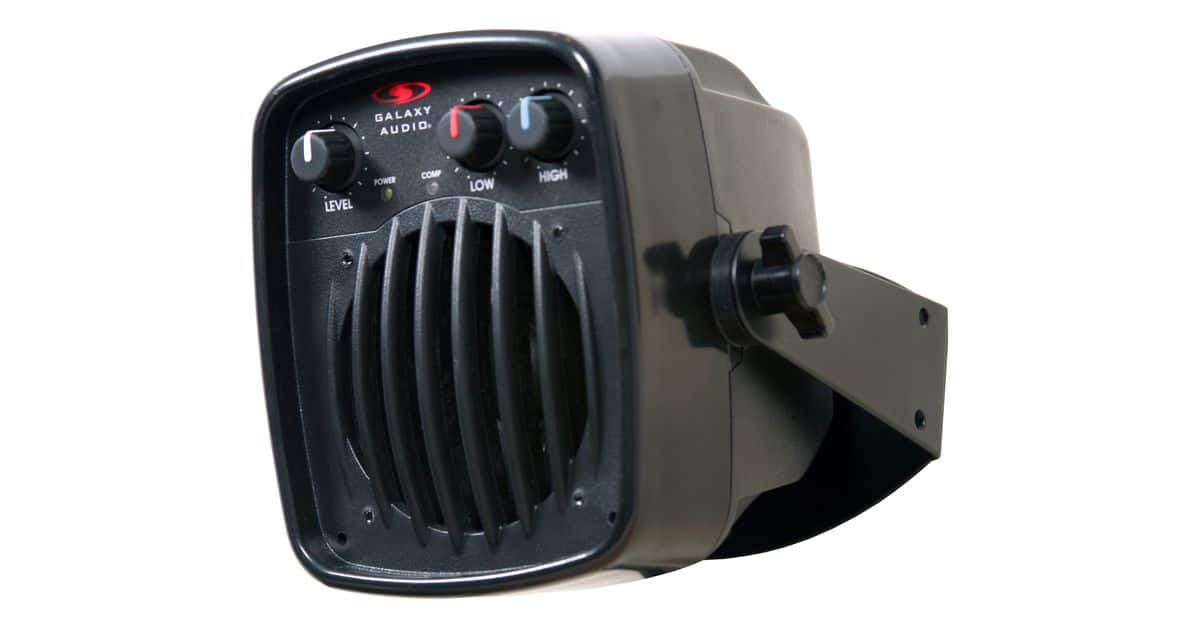

Included Yoke Bracket and hardware kit for NSPA. Will allow for mounting to wall or mic stand.

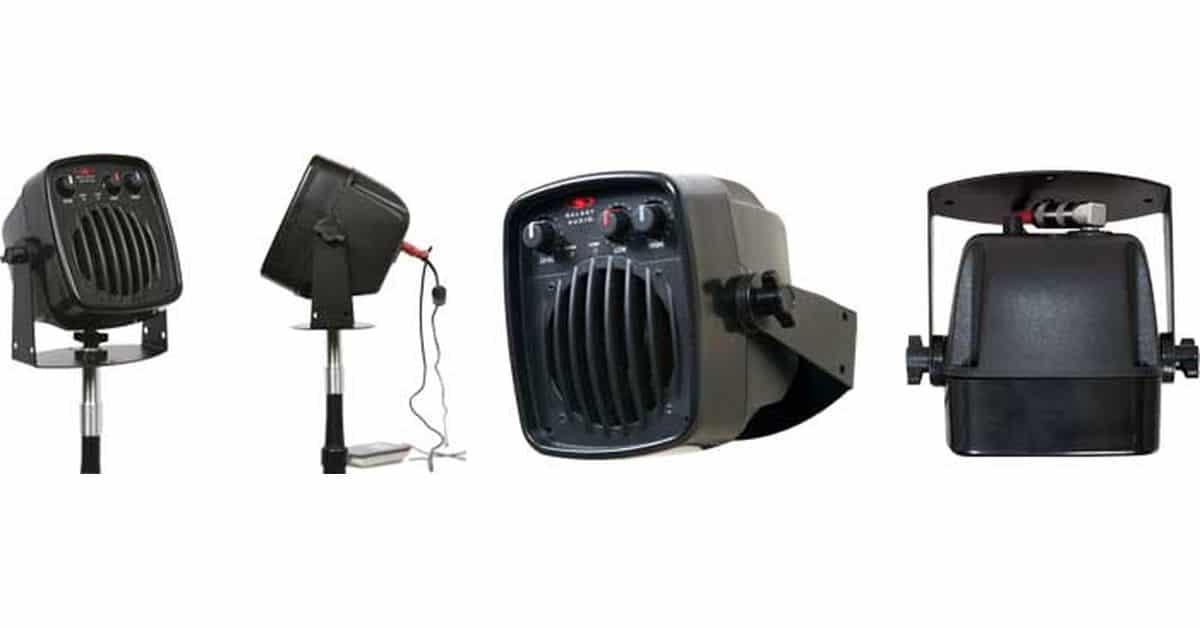

  • Mounts the NSPA to a wall or stand
  • Available in black
  • Hardware Kit Included

Nano Spot PA NSPA Specifications

Frequency Response150Hz - 17kHz
Output/Peak25 watts @ 4 ohms
Sensitivity87.5dB, 1 W @ 1 m
Max SPL101.5dB
Speaker Compliment3" Driver
Nominal Impedance4 Ohms
EqualizationTwo Band Center Detent:
Lo: ± 12dB @ 200Hz
Hi: ± 12dB @ 10kHz
Input ConnectionsXLR Input: 4.4k Differential Balanced w/ +24 VDC Phantom Power, 1/4" 10k Balanced/Unbalanced , 1/8" 22k Balanced (11k Unbalanced)
ControlsInput Level, High Frequency, Low Frequency, 20dB Pad
IndicatorsPower LED, Signal LED & Compressor LED
Power RequirementsPower Supply, Input 100-240 VAC, Output 18 VDC, 1.75 A
Splowt58
Enclosure MaterialsHigh Impact ABS Plastic
Mounting/RiggingBuilt-in yoke bracket points
ColorBlack

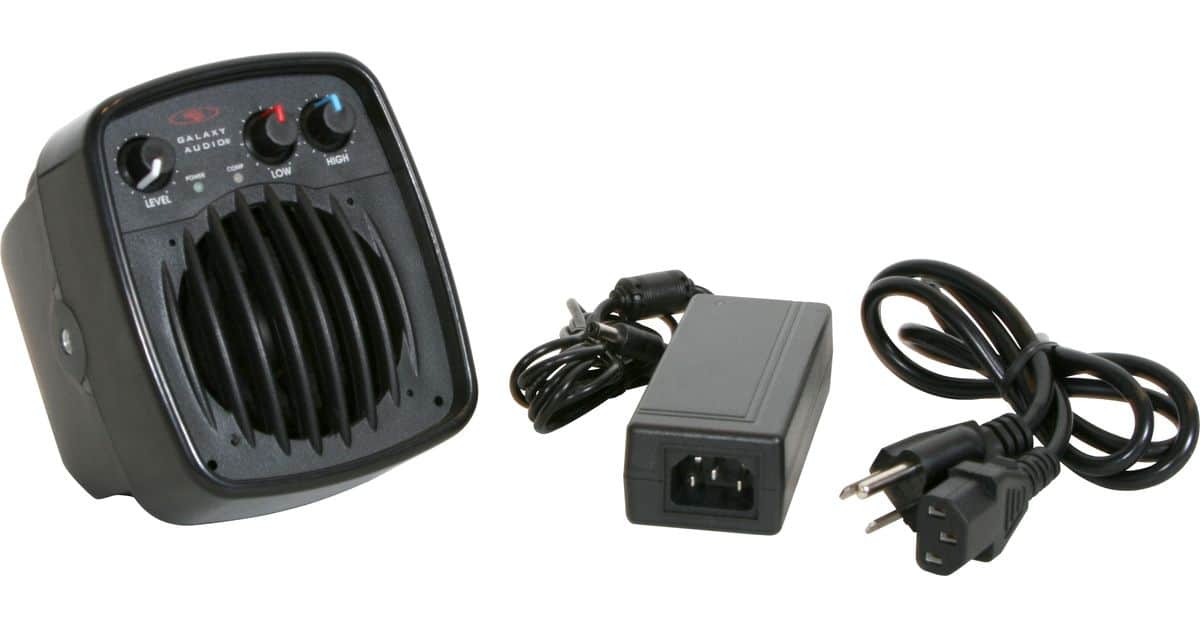

AccessoriesPower Supply, Wall/Stand Bracket Mount Kit, Rubber Feet, Quick Start Guide

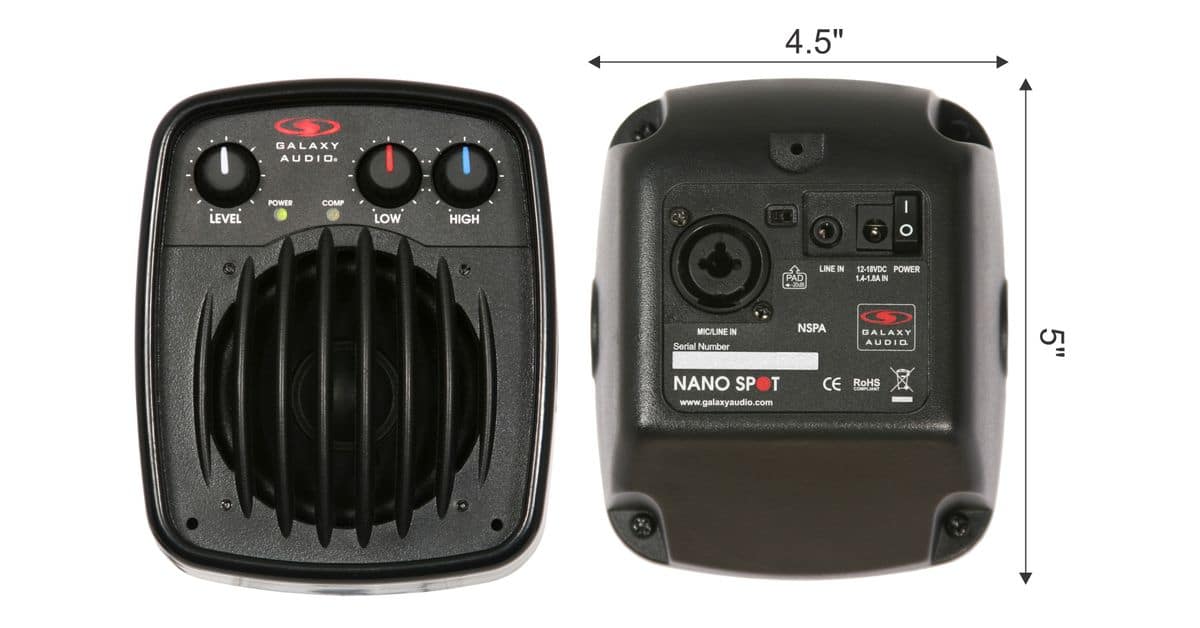

Dimensions5" x 4.25" x 4.5" (127 x 108 x 114mm)(HxWxD)
Weight1.75 lbs. (0.793 kg)

Manuals

Manual ( pdf - 8.57 MB )
Cut Sheet ( pdf - 0.12 MB )
