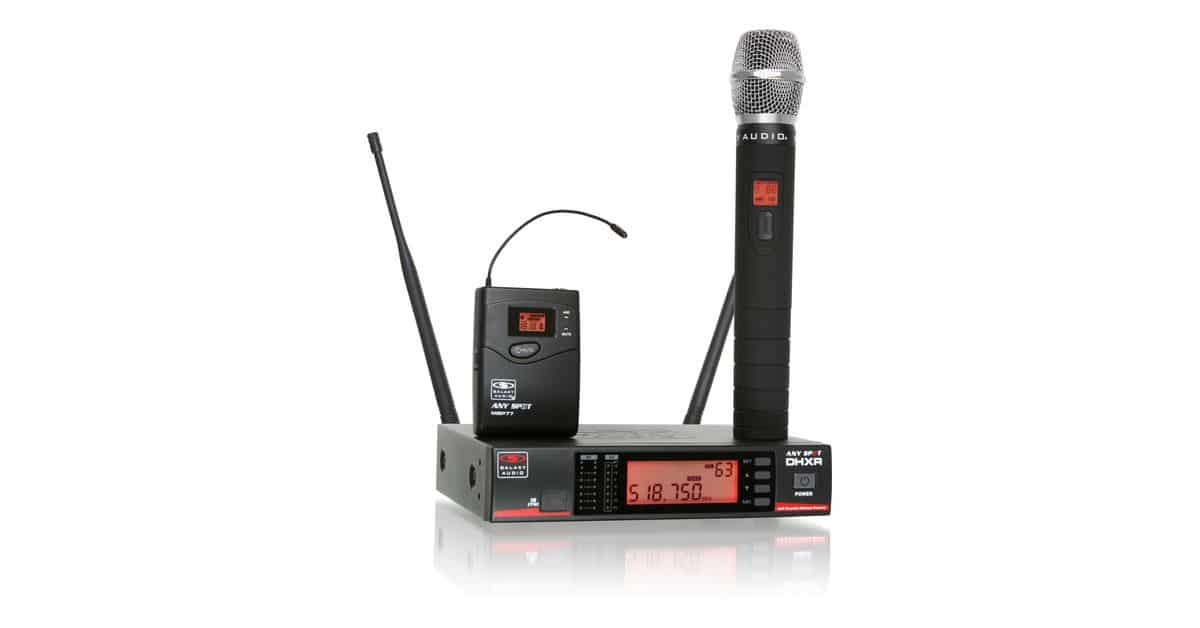

DHX (UHF)

The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use, and then IR Sync the frequency...

View More Details

Buy Now

Find a Dealer

from

Click Here for 600MHz Wireless Buyback Rebate Information!
The DHX packs the tools for the pro. The DHX has Auto Scan, where it will search for an available frequency to use, and then IR Sync the frequency to a transmitter. The large LCD display shows channel number, frequency, lock mode, and volume output. The DHX receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The DHX works great with any 77 or 65 Series transmitter.

  • 300' Range
  • 120 Selectable Channels
  • UHF Frequency
  • Diversity Antennas
  • Single Rack Mount and Dual Rack Mount Coupler Included

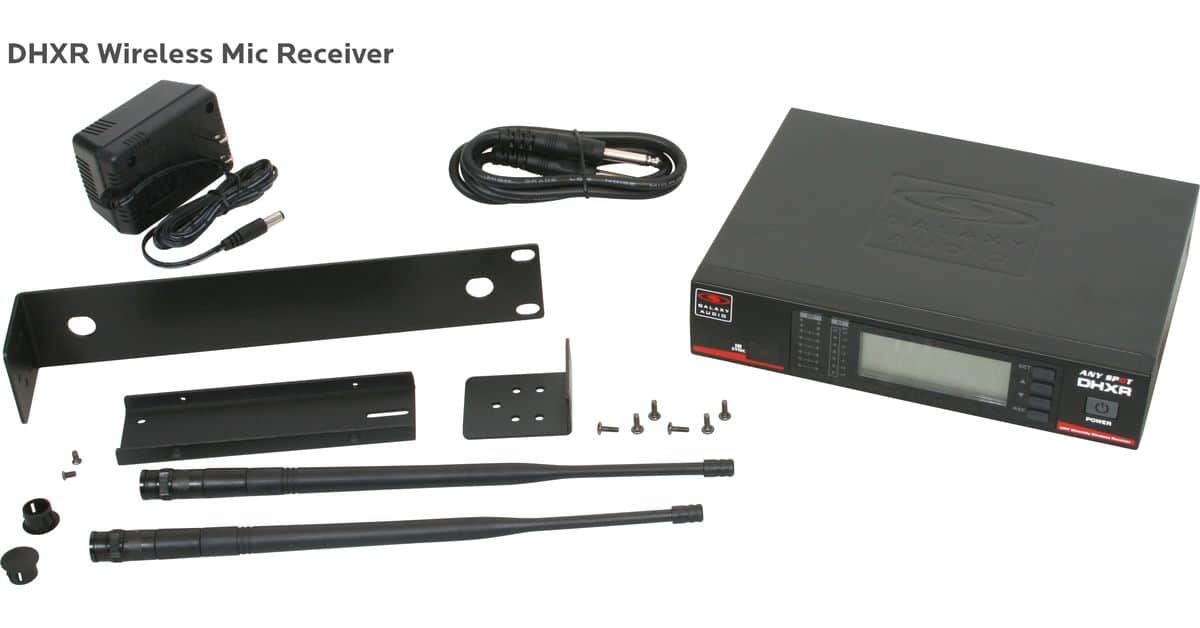

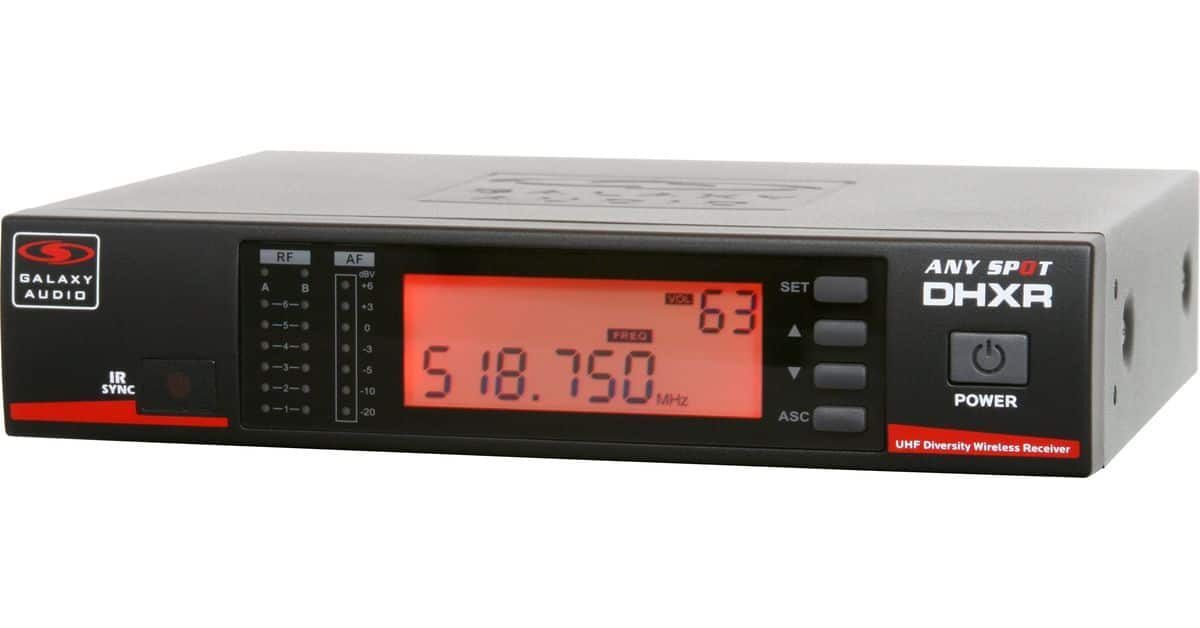

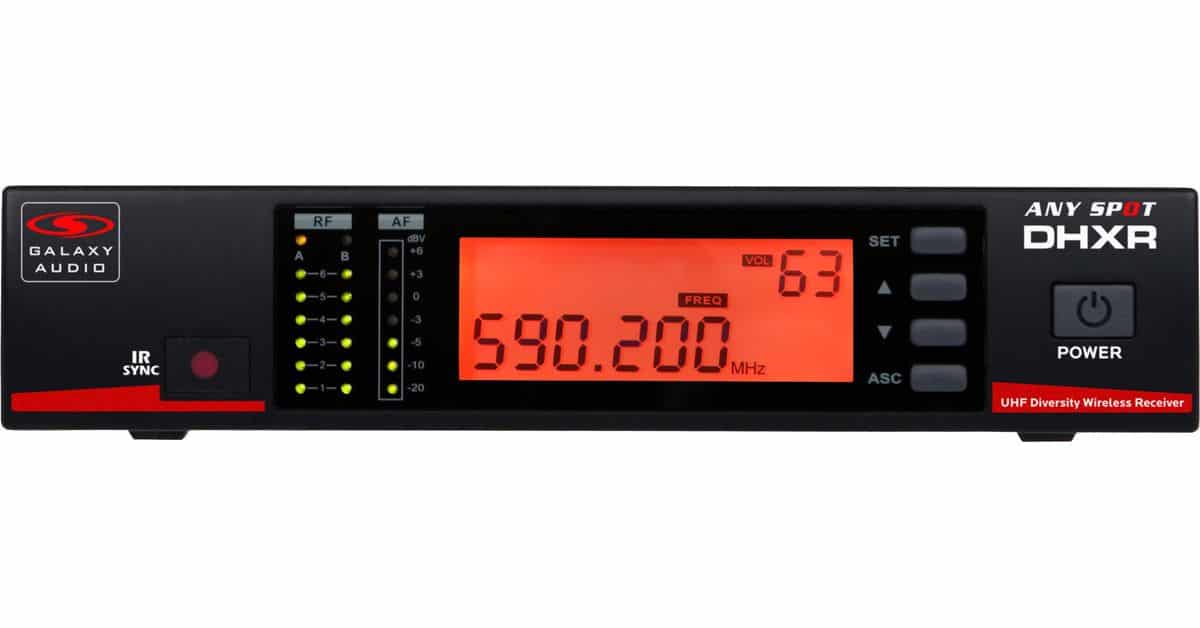

DHXR Receiver

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • Tone-key Squelch
  • XLR/1/4" Output

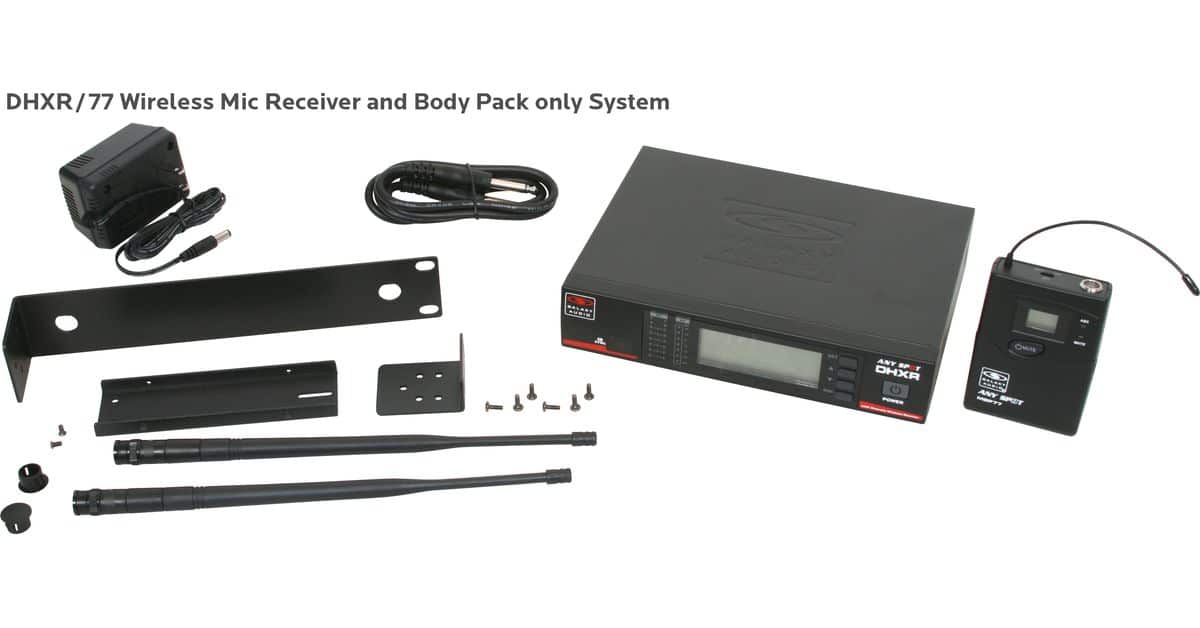

MBP77 Transmitter

  • IR Sync
  • Mic/0/-10dB
  • Channel Selector
  • On/Off / Mute Button
  • 3 Bar Battery Life
  • Indicator
  • Button Lock
  • LCD Display
  • Runs on 2 AA Batteries
  • 10 mW
  • 3 oz (85 g)

HH65 Transmitter

  • Cardioid Dynamic Element
  • LCD Display (Battery Life Indicator Group and Channel Indicator)
  • 4 Battery Life Indicator
  • Gain Adjustment
  • IR Sync
  • Runs on 2 AA Batteries
  • 10 mW
  • 10.6 oz (300 g)

HH65SC Transmitter

  • Super Cardioid with Condensor
  • LCD Display (Battery Life Indicator Group and Channel Indicator)
  • 4 Battery Life Indicator
  • Gain Adjustment
  • IR Sync
  • Runs on 2 AA Batteries
  • 10 mW
  • 10.6 oz (300 g)

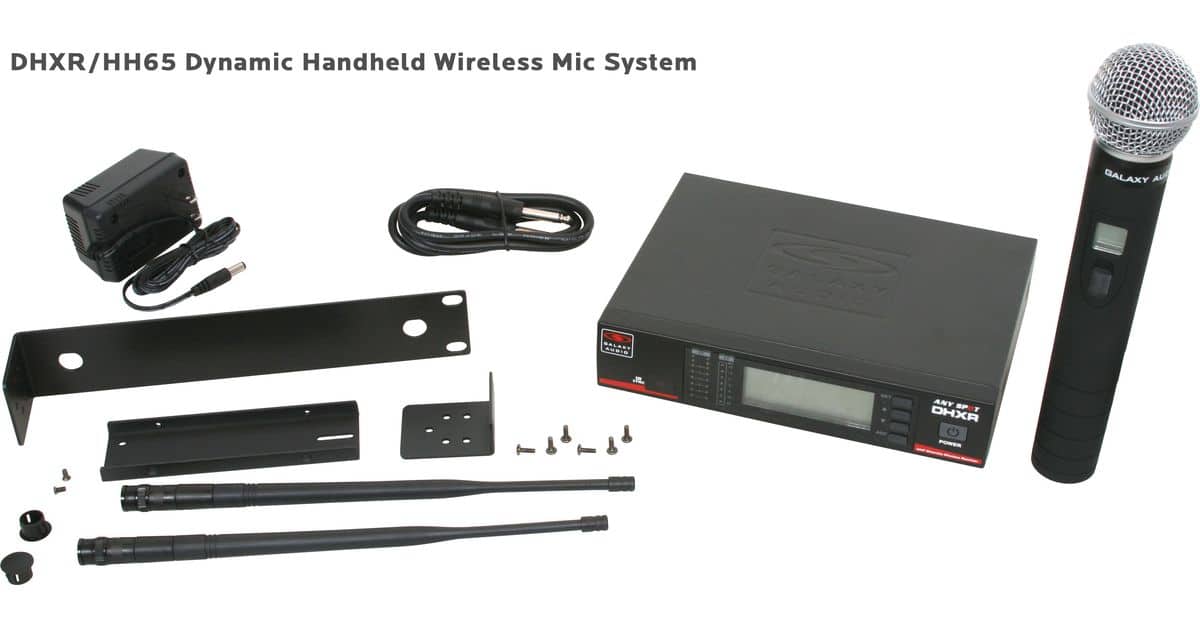

DHXR/HH65 - This system includes the DHXR Receiver and the HH65 Hand Held Transmitter.
DHXR/HH65 - This system includes the DHXR Receiver and the HH65 Hand Held Transmitter.

Additional products in this configuration:

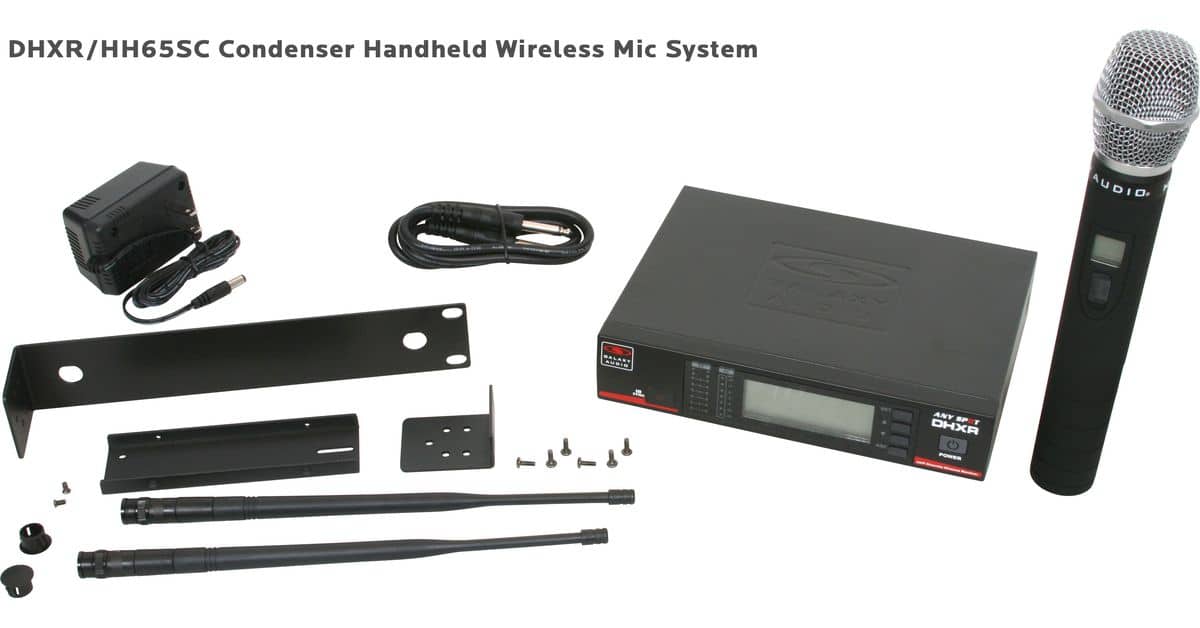

DHXR/HH65SC - This system includes the DHXR Receiver and the HH65SC Hand Held Transmitter.
DHXR/HH65SC - This system includes the DHXR Receiver and the HH65SC Hand Held Transmitter.

Additional products in this configuration:

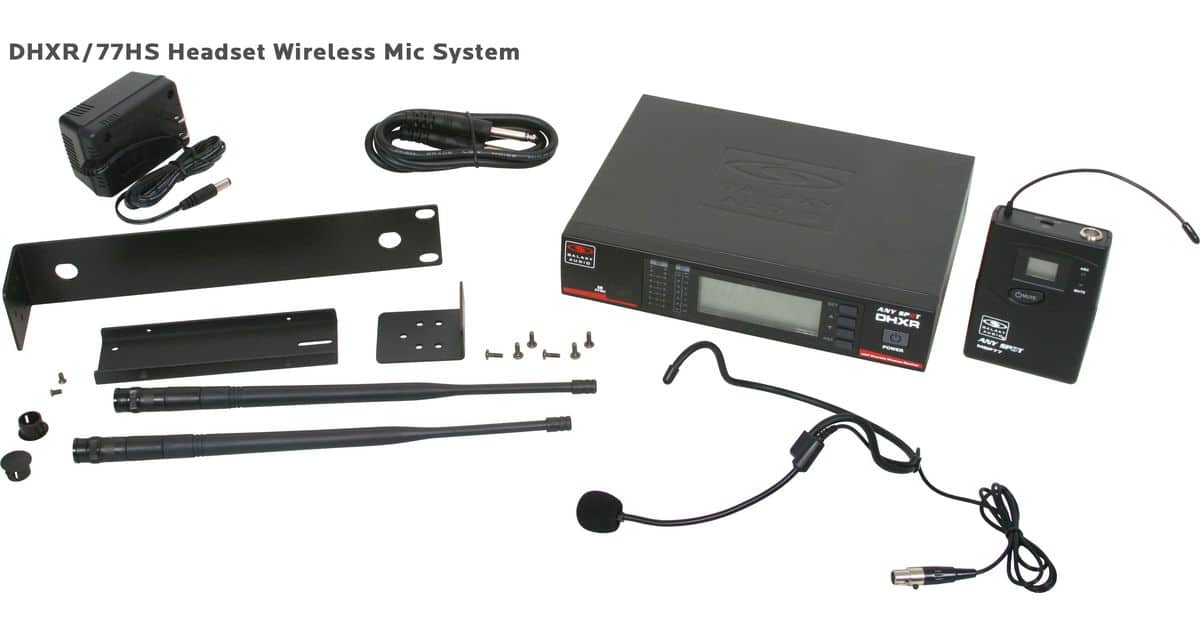

DHXR/77HS - Headset Mic: Uni-directional, Frequency Response 50Hz-18kHz. This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, and the HS-U3BK Headset Microphone.
DHXR/77HS - Headset Mic: Uni-directional, Frequency Response 50Hz-18kHz. This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, and the HS-U3BK Headset Microphone.

Additional products in this configuration:

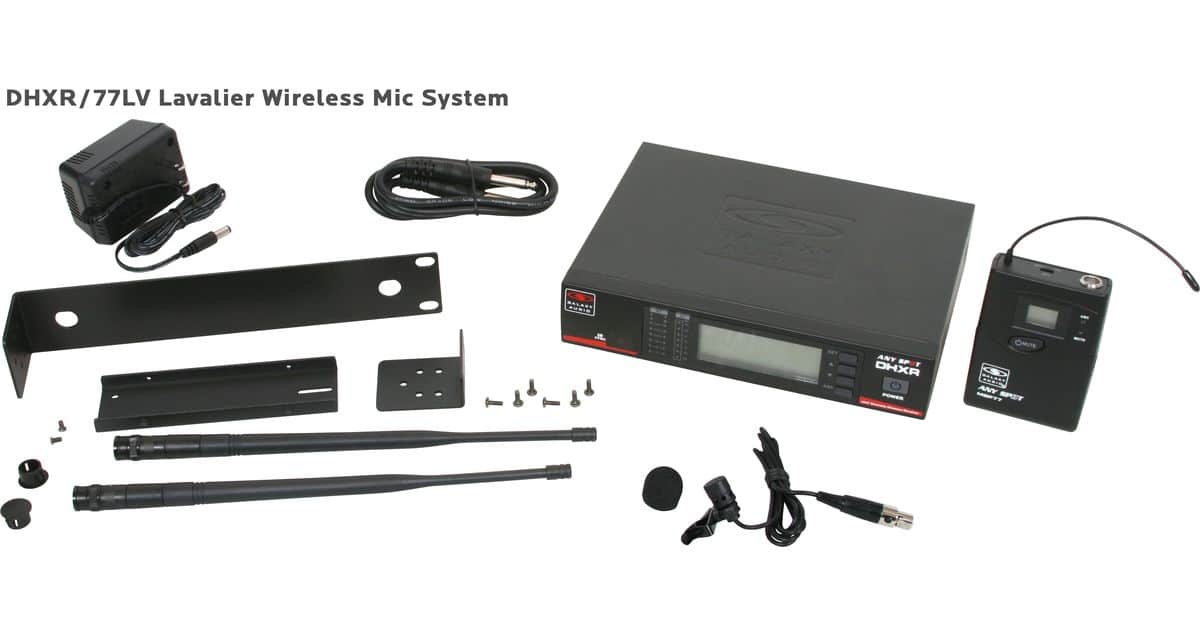

DHXR/77LV - Lavalier Mic: Uni-element, Frequency Response 50Hz-19kHz. This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, and the LV-U3BK Lavalier Microphone.
DHXR/77LV - Lavalier Mic: Uni-element, Frequency Response 50Hz-19kHz. This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, and the LV-U3BK Lavalier Microphone.

Additional products in this configuration:

DHXR/W77 - Wireless Shockmount: 16 Selectable Channels, XLR Mic Input, On/Off Switch, Low Battery LED. This system includes the DHXR Receiver and the SM-W77 Shockmount.
DHXR/W77 - Wireless Shockmount: 16 Selectable Channels, XLR Mic Input, On/Off Switch, Low Battery LED. This system includes the DHXR Receiver and the SM-W77 Shockmount.

Additional products in this configuration:

HH65SC Condenser Handheld

Click Here for 600MHz Wireless Buyback Rebate Information!
Condensor Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System

●  Super Cardioid with Condensor
●  LCD Display (Battery Life Indicator Group and Channel Indicator)
●  4 Battery Life Indicator
●  Gain Adjustment
●  IR Sync
●  Runs on 2 AA Batteries
●  10 mW
●  Dimensions: 9.6" x 2" (243 x 50 mm) (L x Dia)
●  Weight: 10.6 oz (300 g)












HH65 Dynamic Handheld

Click Here for 600MHz Wireless Buyback Rebate Information!
Dynamic Handheld Microphone Transmitter for the DHX/DHXR4 Wireless Microphone System

●  Cardioid Dynamic Element
●  LCD Display (Battery Life Indicator Group and Channel Indicator)
●  4 Battery Life Indicator
●  Gain Adjustment
●  IR Sync
●  Runs on 2 AA Batteries
●  10 mW
●  Dimensions: 9.5" x 2.1" (242 x 54 mm) (L x Dia)
●  Weight: 10.6 oz (300 g)

MBP77 Body Pack

Click Here for 600MHz Wireless Buyback Rebate Information!
Body Pack Transmitter for the DHX/DHXR4 Wireless Microphone Systems

●  IR Sync
●  Mic/0/-10dB
●  Channel Selector
●  On/Off / Mute Button
●  3 Bar Battery Life
●  Indicator
●  Button Lock
●  LCD Display
●  Runs on 2 AA Batteries
● 10 mW
●  Dimensions: 3.5" x 2.6" x 1" (89 x 54 x 24 mm) (HxWxD)
●  Weight: 3.0 oz (85 g)

SM-W77

Click Here for 600MHz Wireless Buyback Rebate Information!
The SM-W77 features 16 selectable channels and operates off of 2 AA batteries. 60Hz - 16kHz, 10m W RF out, SNR 102dB (a), THD < 1%. The SM-W77 will work with the DHXR and DHXR4 receivers and will accept any standard XLR type input. The SM-W77 acts as a shock mount base for a gooseneck microphone.

  • 16 Selectable Channels
  • XLR Mic Input
  • Powered From 2 AA Batteries
  • On/Off Switch w/ Low battery LED

Works with DHXR & DHXR4

HS-U3BK Uni Headset

This uni-directional headset comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Headset Systems. It's comfortable wrap around design goes over both ears and helps ensure that this mic will stay in place. The HS-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni directional headset microphone
  • Hooks over both ears

LV-U3BK

This uni-directional lavalier mic comes standard with the ECM, PSE, TRC, DHT, DHX, CTS, & Traveler Lavalier Systems. The LV-U3BK can be wired to work with transmitters made by Galaxy Audio®, Shure®, Sennheiser®, AKG®, and Audio Technica®, as well as most other brands of wireless microphone systems.

  • Uni-Directional
  • Lapel / Lavalier

WMC-CGR

DC CHARGER: charges two body packs at once.

  • Charges two body packs or handhelds at once
  • Charger for AS-1500R, HH64, HH64SC, HH76, HH76SC, HH76W, HH76WSC & MBP76.

MREWD

Single and Dual Rack Mount Kit, includes 1 long rack ear, 2 short rack ear, 2 coupler plates, and assorted screws. The MREWD allows for racking a single or two wireless in-ear monitors systems or wireless mic systems in a 1U space. Works with PSE, DHX, CTS, AS-900, AS-1100, & AS-1400 systems.

Antenna Distributor ANT-DISTDC

Antenna Distribution System expands wireless microphone systems by splitting one pair of antennas to allow up to four single channel receivers to use the same antennas. 3dB gain compensates for any insertion loss and increases receive signal range (up to 275ft). Low-loss 50 ohm BNC connectors for mounting antenna. Includes rack ears for mounting rack space (1RU) Distributes the antenna for up to 4 Wireless Microphone Systems (PSE, CTS, and DHX Series). BNC connectors, single rack space, combines power for up to four wireless receivers as well.

  • Combines Antennas for up to 4 receivers
  • Four DC outputs eliminate individual power supplies
  • 500MHz-900MHz Range
  • Built in Antenna Booster
  • Increase receiver signal rans up to 275 ft more
  • 3dB Gain Compensaton
  • 19" Rack Space

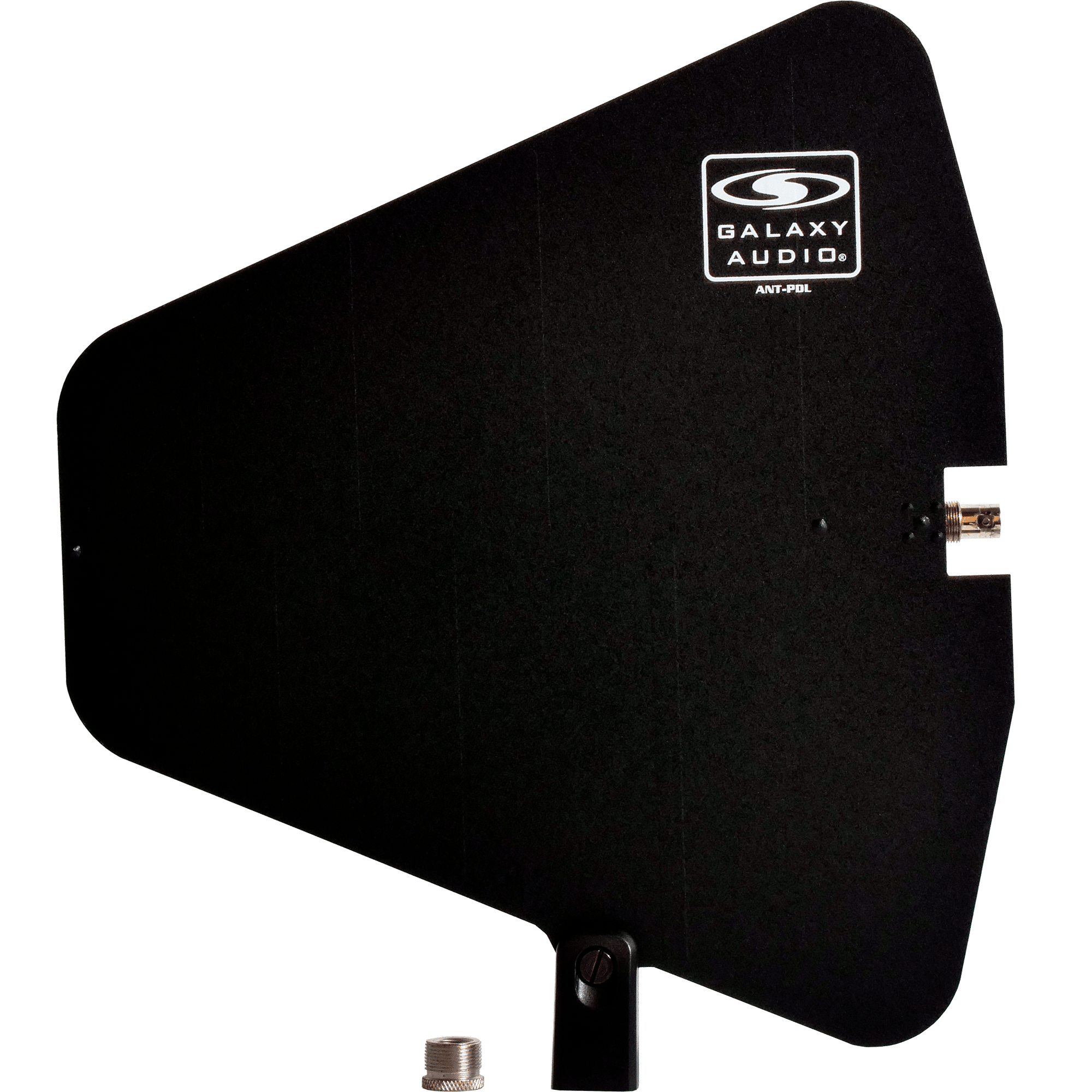

ANT-PDL

Directional antenna used to decrease interference to other equipment.  Frequency range 500-900MHz

The UHF wide-band (500-900 MHZ) directional LPDA (log periodic dipole array) antenna reduces outside interference while providing increased send/receive signal range. Each antenna paddle is matched to 50 ohms impedance with a low-loss BNC connector; 7dBi gain. For permanent or temporary installation; mounts to 5/8"-27 threads.

It is suggested that the angle between the paddle antenna and the thransmitter should be from 90º to 120º. Normally the effective range can reach about 300'.

  • 500-900 MHz
  • LPDA antenna
  • 7dBi gain
  • Can mount to mic stand
  • Improves Range

ANT-AMPMIC

Antenna Amplifier utilizes phantom power and a low noise design which covers all UHF frequency points from 500mHz to 900mHz. Metal construction, requires phantom power (9VDC), 50 ohm input/output impedance.

  • Metal Construction
  • Requires Phantom Power (9VDC)
  • 50 ohm Input/Output Impedance
  • 13dB Boost

BNC Connector & Cable AS-EXT50/BNC

This Includes:
One BNC Connector (Part# CN-BNCPM) and
One 19.69" (50 cm) Cable (Part# EXTBNC) for front mounting antenna.

MICCLIPSI

Standard Mic Clip for Handheld Microphones

DHX (UHF) Specifications

DHX SYSTEM SPECS
Available Frequencies120
Frequency RangesCODE D 584 - 607MHz
CODE L 655 - 679MHz
CODE N 518 - 542MHz
Transmitter Output Level20mW
BandUHF
Operating RangeUnder Typical Conditions 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response(+/-3dB) 60Hz - 16kHz
Total Harmonic Distortion(+/-30kHz deviation, 1kHz tone): <1%
Dynamic Range>90dB A-weighted
Operating Temperature Range14°F to 122°F (-10°C to 50°C), battery characteristics may limit this range

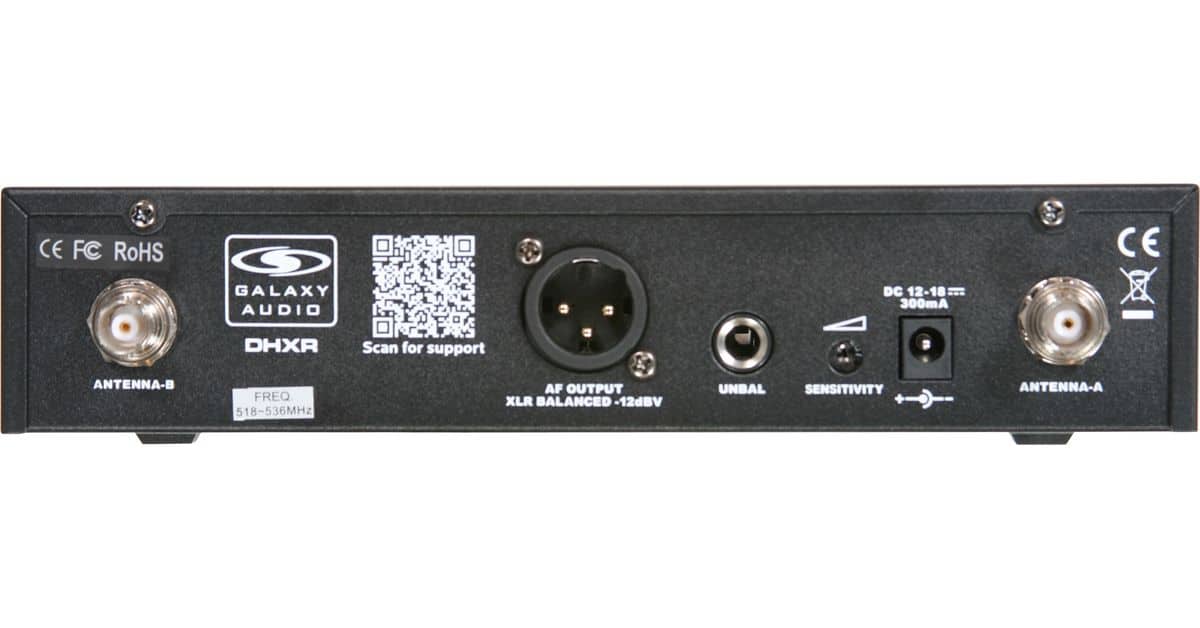

DHX RECEIVER
Audio Output Level (+/-30 kHz deviation, 1 kHz tone)XLR Connector (into 600 Ohms load) -12dBV
1/4" Connector (into 3k Ohms load) -18dBV
Output Connections1 Male XLR Balanced
1 1/4" Unbalanced
Output ImpedanceXLR connector 200 Ohms
1/4" connector 1k Ohms
XLR OutputImpedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Sensitivity-93dBm for 30dB
Image Rejection>90dB
CasingMetal Chassis EIA STANDARD 1 U
Dimensions1.7" x 8.3" x 6.3" (45 x 212 x 160 mm)(HxWxD)
Weight31.7 oz (900 g)
Power Requirements12-18 V DC at 1000 mA, supplied by external power supply

HH65 & HH65SC HANDHELD TRANSMITTER
Max Audio Input Level0dBV
Gain AdjustTrim Pot
RF Output20mW
Frequency Response60Hz- 15kHz
DimensionsHH65: 9.5" x 2.1"
(242 x 54 mm) (L x Dia)
HH65SC: 9.6" x 2"
(243 x 50 mm) (L x Dia)
Weight10.6 oz (300 g)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 6 hours (alkaline)

MBP77 BODY PACK TRANMITTER
Max Audio Input Level0dBV maximum at mic gain position
+10dBV maximum at 0dB gain position.
+20dBV maximum at -10dB gain.
Gain AdjustMic/0dB/-10dB
RF Output20mW
Input Impedance470k Ohms
Dimensions3.5" x 2.6" x 1"
(89 x 54 x 24 mm) (HxWxD)
Weight3.0 oz (85 g) (without batteries)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 6 hours (alkaline)
