Stand Alone Transmitter AS-TXRM

The Audio Link Transmitter will transmit audio signal to any of our Traveler® Series Speakers. It is designed to take a mixed signal and send...

View More Details

Buy Now

Find a Dealer

from

The Audio Link Transmitter will transmit audio signal to any of our Traveler® Series Speakers. It is designed to take a mixed signal and send it to the speakers wirelessly. The AS-TXRM can also act as the mixer; it’s easy with a XLR, ¼", and RCA inputs between two channels, each having their own volume control. So a microphone, CD player, iPod®, etc can be inserted and transmitted to your speakers. The AS-TXRM can be rack mounted or placed on a table top.

  • 96 selectable channels
  • LCD display
  • Channel selector
  • UHF Frequency
  • RF and AF indicator
  • Volume control

Stand Alone Transmitter AS-TXRM Specifications

RF output10mW
Spurious emissionLess than 250 nW
Display statusLCD indicator displays channel or frequency
Channel selectSET, UP, DOWN keys
AntennaExternal
Dimensions8.375" x 8 " x 1.75 " (213 x 203 x 45 mm)
Weight2.8 lbs (1.27kg)
Controls1. Power Switch w/ LED
2. Mic Volume
3. Mic On/Off Switch
4. Mic On LED
5. Aux Volume
6. Aux On/Off Switch
7. Aux On LED
8. Transmitter Module
9. Headphone Volum​e
Inputs & Outputs10. Headphone Output
11. Antenna Connector
12. L/R Aux Outputs
13. L/R Aux Inputs
14. Balanced Mic Input
15. 5v DC Mic Switch
16. Unbalanced Mic Input
17. 12-15v DC Output
18. 12-15v DC Input

Manuals

Manual ( pdf - 18.4 MB )

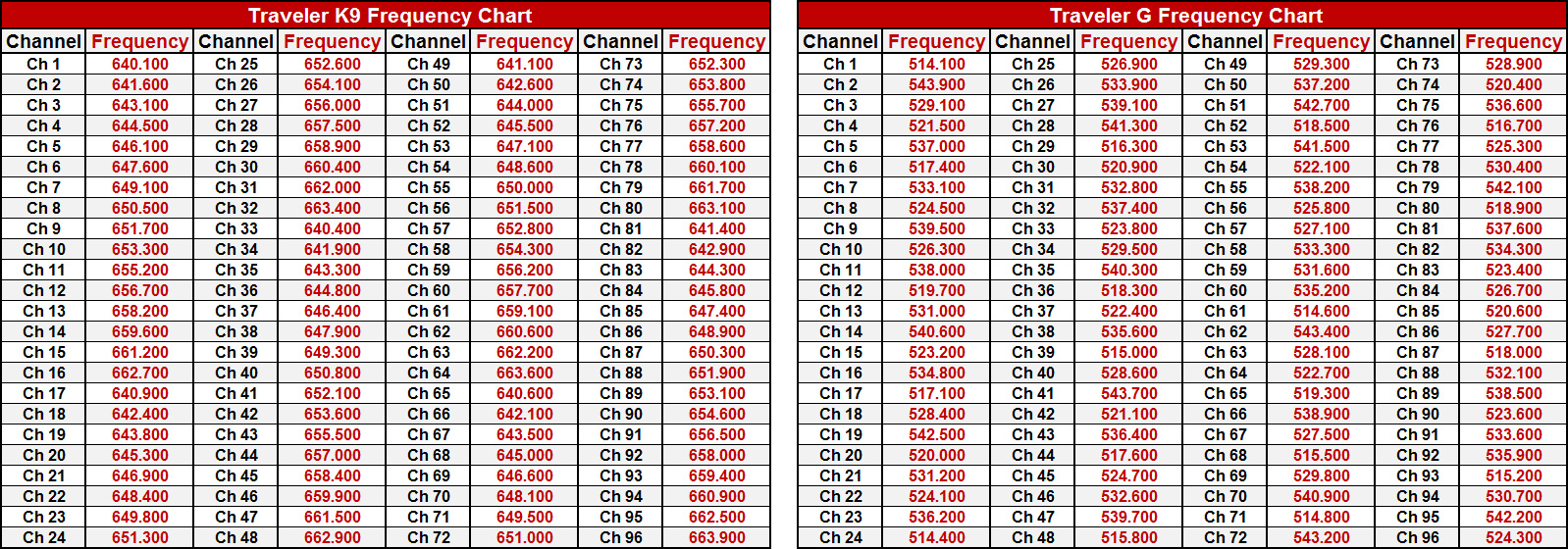

Frequency Chart ( jpg - 0.8 MB )
