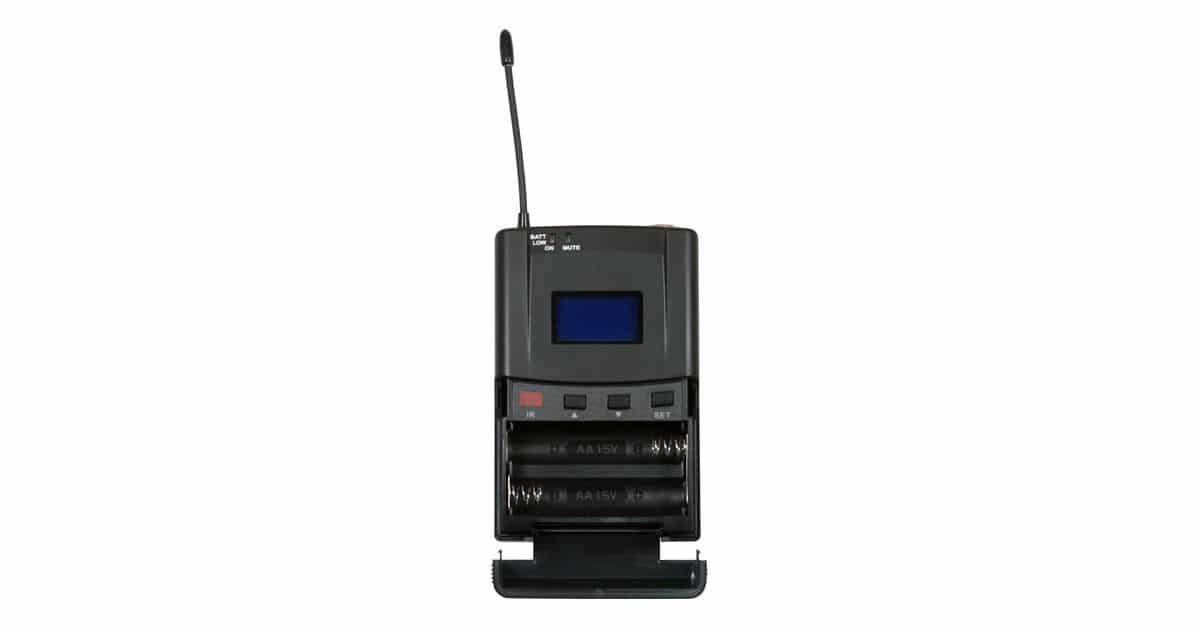

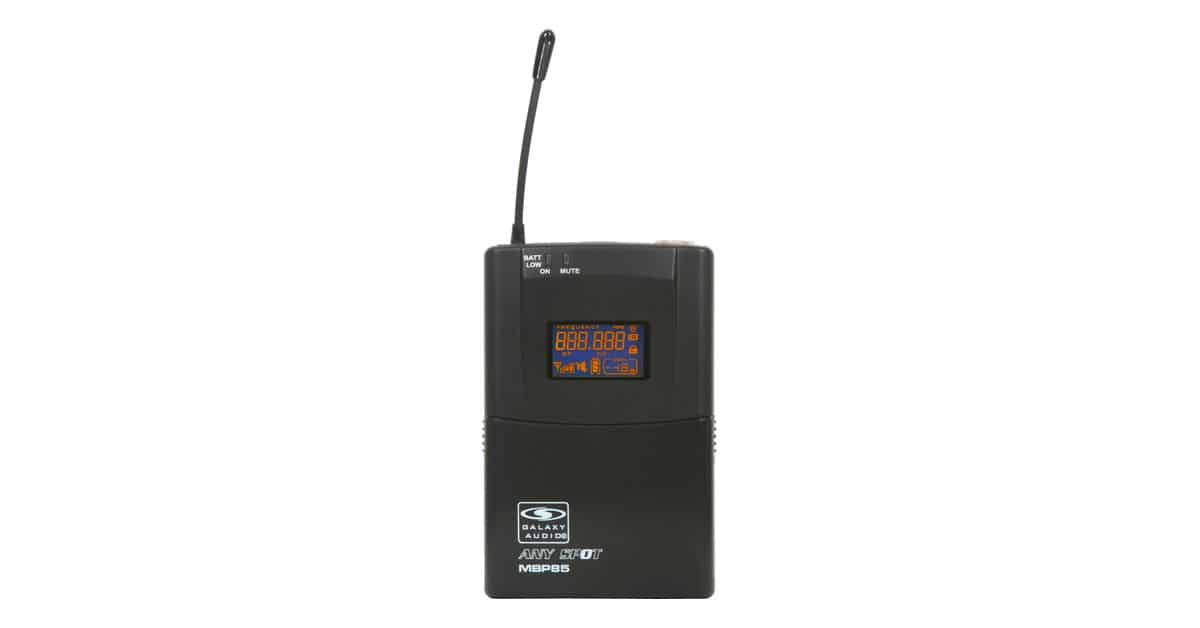

MBP85 Body Pack

Body Pack Transmitter for the CTS Wireless Microphone System Power/Mute Button LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)...

View More Details

Find a Dealer

from

Body Pack Transmitter for the CTS Wireless Microphone System

  • Power/Mute Button
  • LCD Display (Frequency, Battery Life, Mute, Gain, RF Power)
  • IR Sync  Transmitter to Receiver
  • Selectable Power 5, 10, 20 mW
  • Selectable Gain -3, 0, 3, 6, 9
  • Operates on 2 AA Batteries (up to 12 hours Alkaline)
  • Dimensions: 3.85" x 2.51" x 0.90" (98 x 64 x 23 mm) (HxWxD)
  • Weight: 3.17 oz (90 g)







MBP85 Body Pack Specifications

Max Audio Input Level-6 dBV (-3 gain)
Gain Adjust-3 dB, 0 dB, +3 dB, +6 dB, +9 dB
RF Output5 mW, 10 mW, 20 mW
Input Impedance470 k Ohms
Dimensions3.85" x 2.51" x 0.90" (98 x 62 x 23 mm) (HxWxD)
Weight3.17 oz (90 g)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 12 hours (alkaline)
