JIB/BT8R Stereo Bluetooth Receiver

The JIB/BT8R is a lightweight, compact, portable stereo Bluetooth® receiver that interfaces high quality stereo Bluetooth® audio wirelessly...

View More Details

Buy Now

Find a Dealer

from
JIB/BT8R Stereo Bluetooth Receiver Callout

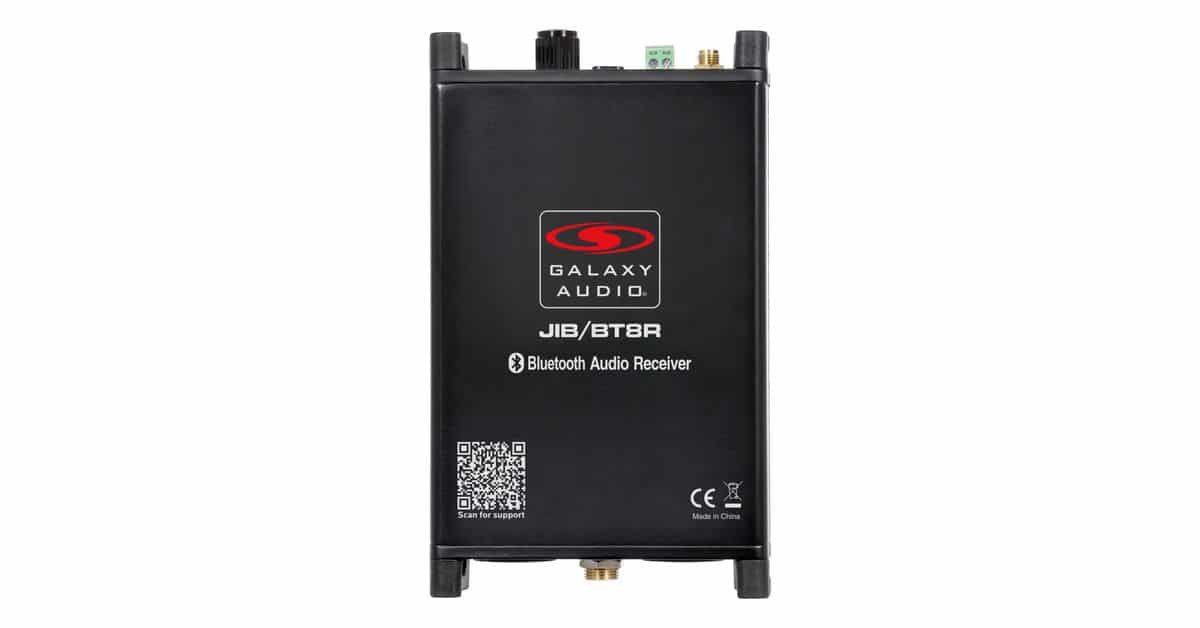

The JIB/BT8R is a lightweight, compact, portable stereo Bluetooth® receiver that interfaces high quality stereo Bluetooth® audio wirelessly from a smart phone to an active speaker or mixing console. The receiver offers a practical, straightforward audio solution for venues that require a quick wireless set up. Additionally, the receiver offers remote pairing capability by connecting to the included euro-block connector. The JIB/BT8R features balanced Left/Right XLR and 1/4" line outputs with a volume control. The compact stereo Bluetooth receiver is powered on 5V DC and comes with a removable 2.4GHz antenna. The portable Bluetooth receiver can be placed on a flat surface such as a rack shelf or mounted to a mic stand. DJs accepting requested songs that may not have it in their track can allow a user to Bluetooth® a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver. The JIB/BT8R can also be used for a number of other audio streaming applications including dance studios, aerobics, school and gym classes, house of worship, restaurants, nightclubs, event spaces, karaoke, weddings, and many more.

  • Transmit Audio from Smart Phone to Active Speaker or Mixer

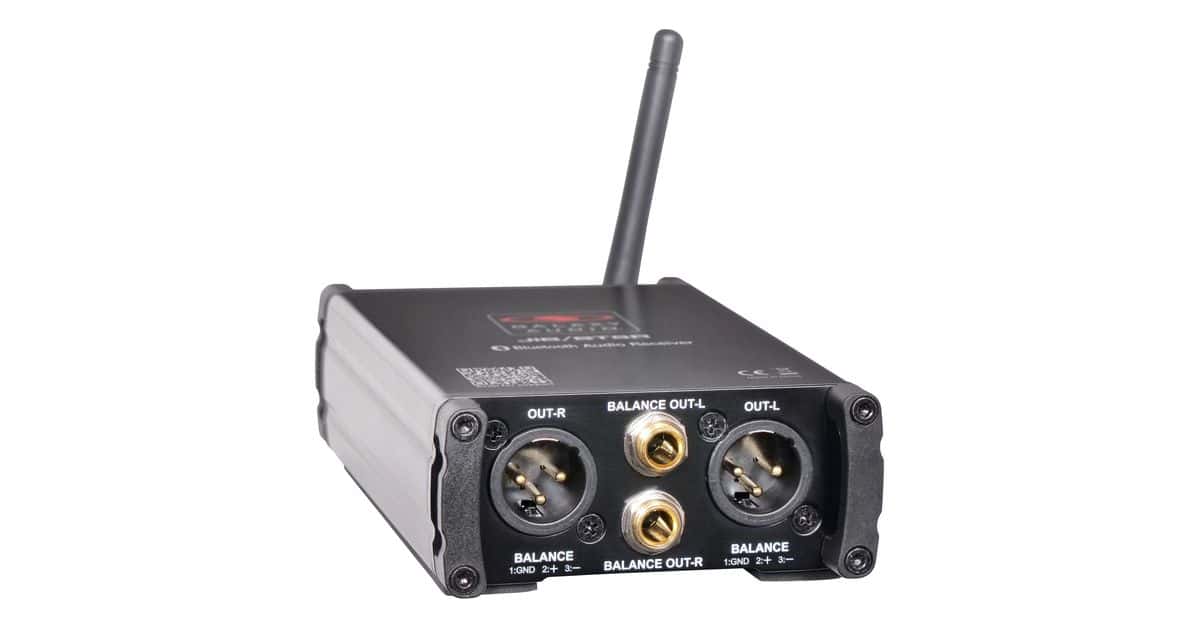

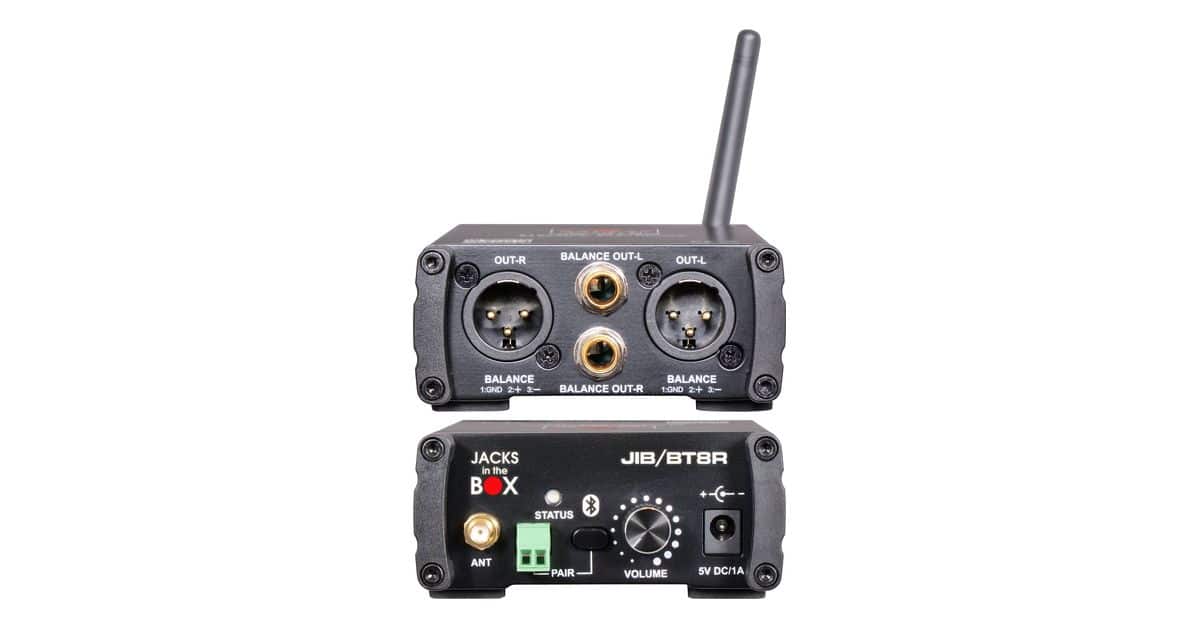

  • Left/Right XLR and 1/4" Line Out for Stereo Playback
  • Lightweight, Compact, Tough, Portable Design
  • Volume Control
  • Remote Pairing Capability
  • Removable 2.4 GHz Antenna
  • Stand Mountable (3/8"-5/8" stand adapter included)

JIB/BT8R Stereo Bluetooth Receiver Specifications

Bluetooth VersionV4.0
Frequency Range2.4GHz - 2.48GHz
Output ConnectorLeft/Right Balanced XLR/M, Left/Right Balanced 1/4" Line
ControlsVolume, Wireless Bluetooth® Pair, Remote Pairing Euro-block Connector
IndicatorsStatus LED
Sensitivity-80dBm < +/-0.1% BER
Signal to Noise>75dB
Total Harmonic Distortion<0.1%
Operating RangeUnder Typical Conditions 32.8' (10 m)
Note: actual range depends on RF signal absorption, reflection, and interference.
Operating TemperatureRange -40º F to 176º F (-40 Cº to +80 Cº)
MountableYes, 5/8" or 3/8" with included adapter
Antenna2.4 GHz Removable
Dimensions1.58" x 3.54" x 5.8" (40 x 90 x 147 mm)(HxWxD)
Weight12.17 oz (345 g)
Power Requirements5V DC/1A Power Supply (included)

Manuals

JIB/BT8R Manual ( pdf - 6.22 MB )
JIB/BT8R Quickstart Guide ( pdf - 1.91 MB )
JIB/BT8R Cutsheet ( pdf - 0.96 MB )
