HH52 Dynamic Handheld

Dynamic Handheld Microphone Transmitter for the PSE/ECM Wireless Microphone System Dynamic Microphone Element On/Off Switch IR Sync Transmitter...

View More Details

Find a Dealer

from

Dynamic Handheld Microphone Transmitter for the PSE/ECM Wireless Microphone System

  • Dynamic Microphone Element
  • On/Off Switch
  • IR Sync Transmitter to Receiver
  • High/Low RF Switch
  • 10 mW / 5 mW
  • Metal Chassis
  • Operates on 2 AA Batteries (up to 8 hours Alkaline
  • Dimensions: 9.8" x 2.1" (250 x 53 mm) (L x Dia.)
  • Weight: 9.5 oz. (270 g)




HH52 Dynamic Handheld Specifications

Max Audio Input Level0dBV
Gain AdjustTrim Pot
RF Output10 mW, 5 mW

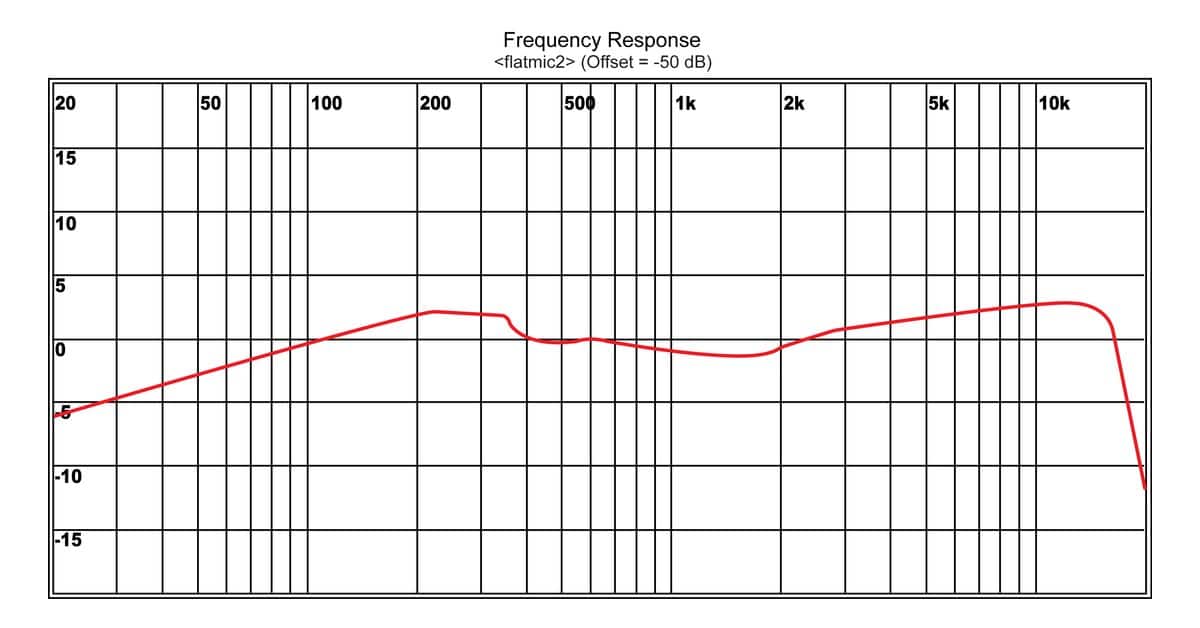

Frequency Response70Hz - 15kHz
Dimensions9.8" x 2.1" (250 x 53 mm) (LxDia)
Weight9.5 oz (270 g) (without batteries)
Power Requirements2 "AA" size alkaline or rechargeable batteries
Battery LifeAbout 8 hours (alkaline)

Manuals

PSE Manual ( pdf - 0.62 MB )
PSE Cutsheet ( pdf - 0.52 MB )
ECM Manual ( pdf - 0.93 MB )
ECM Cutsheet ( pdf - 0.56 MB )
